Predictive Forward Collision Warning: Operation

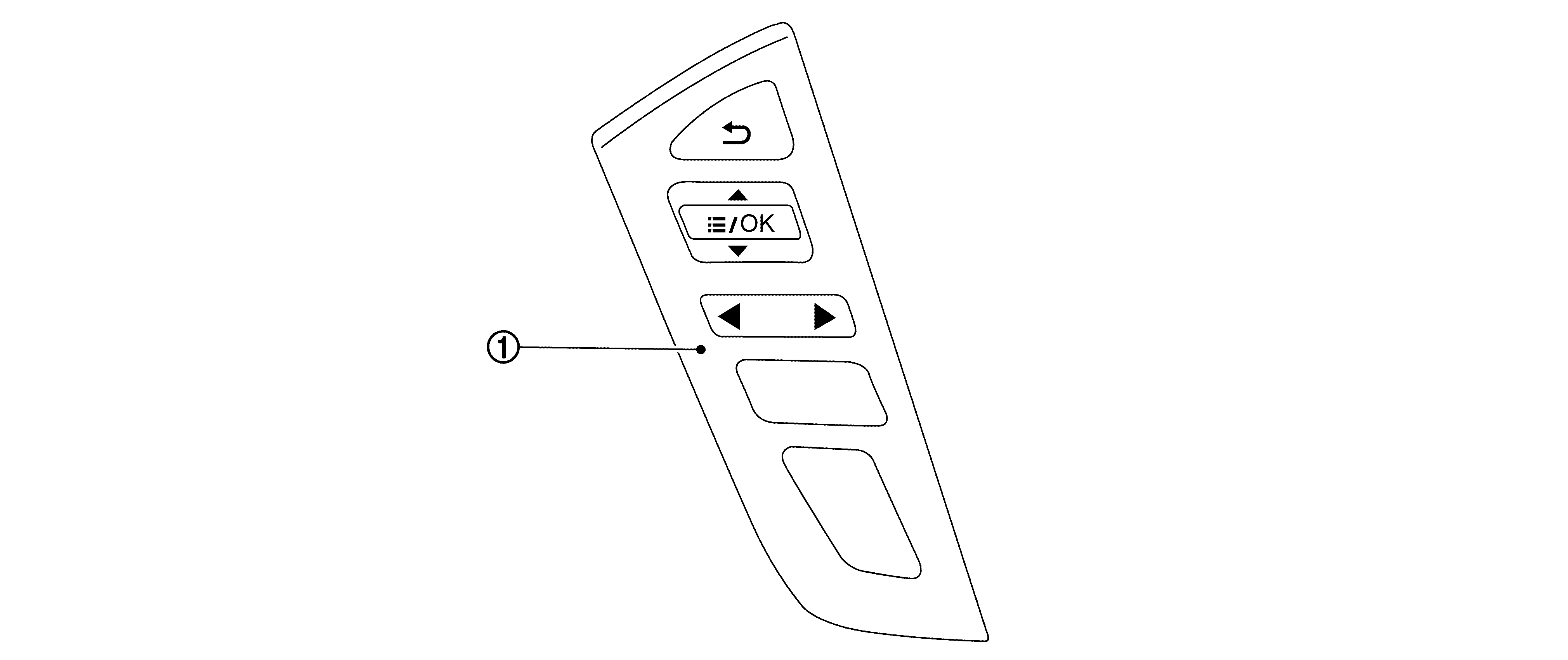

Switch Name and Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	Steering switch	Using the steering switch, select the [Settings] menu in the information display Select the [Driver Assistance] menu Select the [Emergency Brake] menu Select the [Front] item to turn the system ON/OFF NOTE: When the Automatic Emergency Braking setting is turned OFF, the Intelligent Forward Collision Warning is also turned OFF.

Menu Displayed by Pressing Each Switch

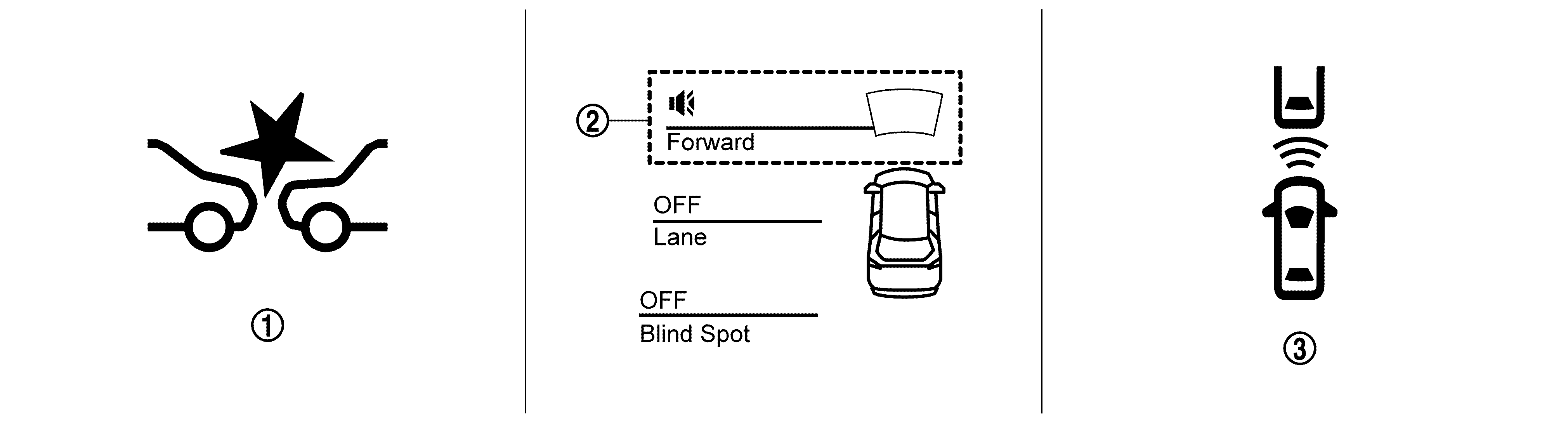

SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	FEB/EAPM warning lamp	FEB/EAPM warning lamp indicates that an abnormal condition is present in PFCW system When the PFCW system turns OFF, the FEB/EAPM warning lamp illuminates
	PFCW system indicator	Blinks when approaching vehicle ahead
	Vehicle ahead detection indicator	Indicates whether it detects a vehicle ahead Blinks when approaching vehicle ahead

DISPLAY AND WARNING

System operates when ON is selected with the integral switch.

Condition		Action	Display on information display	FEB/EAPM warning lamp	Buzzer
PFCW OFF		-	Courtesy of NISSAN NORTH AMERICA, INC.	ON	OFF
PFCW ON	Vehicle is absent	-	PFCW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF	OFF
	Vehicle is detected	-	PFCW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF	OFF
	There is a possibility of a collision with the vehicle ahead	-	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	OFF	Beep
			PFCW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.
PFCW system malfunction		The PFCW system is automatically canceled *	PFCW system indicator : White Speaker icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.	ON	Beep
			Courtesy of NISSAN NORTH AMERICA, INC.
Dirt around the distance sensor		The PFCW system is automatically canceled *	PFCW system indicator : White Speaker icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	ON	Beep
			Courtesy of NISSAN NORTH AMERICA, INC.

* : The system operates if the ignition switch is turned OFF→ON after the condition improves
