Distance Control Assist: Operation

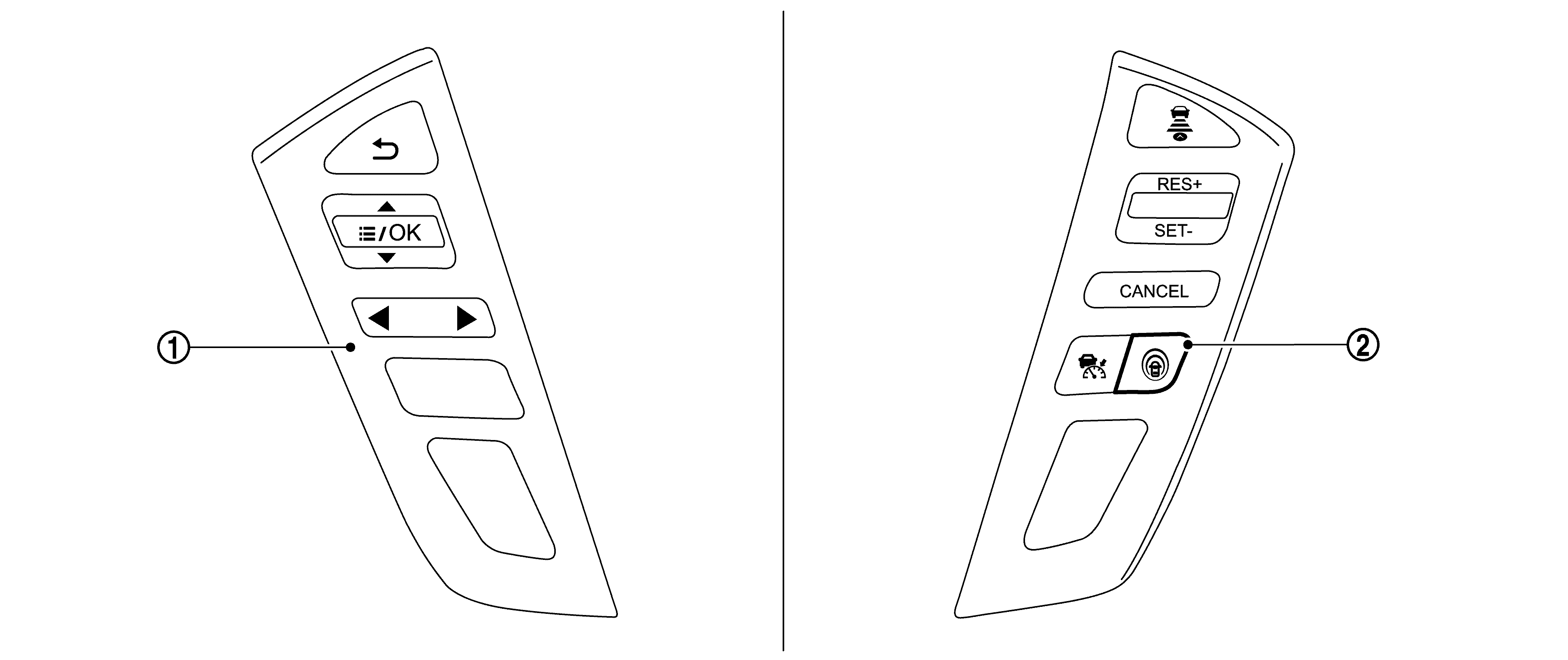

Switch Name and Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	Steering switch	Using the steering switch, select the [Settings] menu in the information display Select the [Driver Assistance] menu Select the [Distance Control Assist] and push the OK Push the dynamic driver assistance switch to turn the system ON or OFF
	Dynamic driver assistance switch

Menu Displayed by Pressing Each Switch

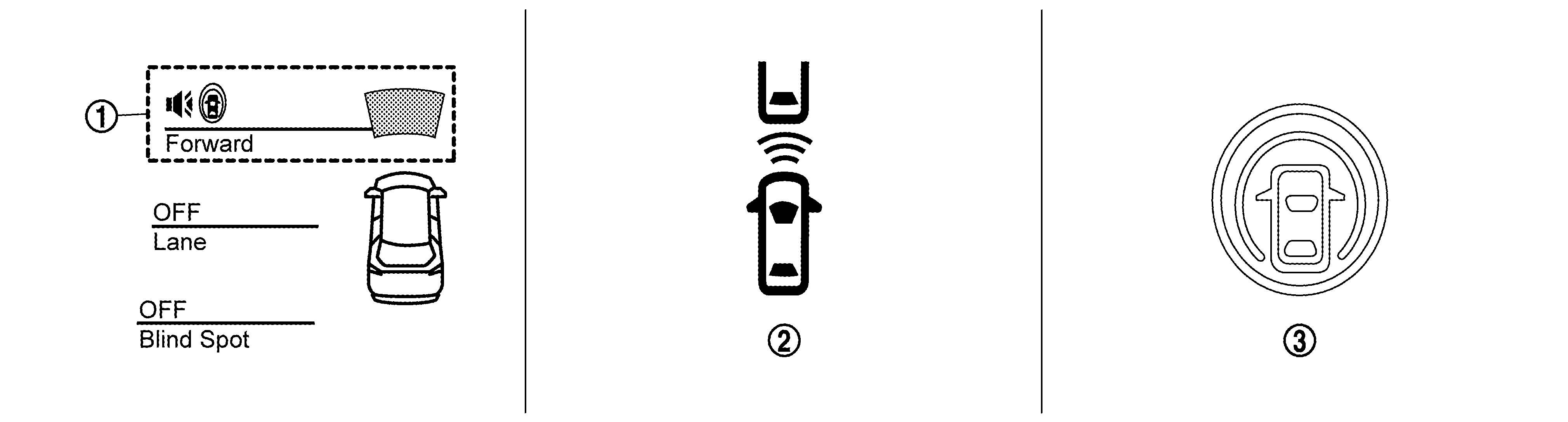

SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	DCA systems indicator	Indicates that DCA system is ON
	Vehicle ahead detection indicator	Blinks when approaching vehicle ahead
	DCA ON indicator	Indicates that DCA system is ON

DISPLAY AND WARNING

System Display When the dynamic driver assistance switch is pressed while the engine is running, system operates the system for which ON is selected with the integral switch.

Condition	Action	Display on information display	Buzzer
DCA OFF	-	Courtesy of NISSAN NORTH AMERICA, INC.	OFF
DCA ON	-	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
		DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
DCA is malfunction	The DCA system is automatically canceled	Yellow Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		DCA system indicator : White Speaker icon : Yellow Dynamic driver assistance icon : Yellow Courtesy of NISSAN NORTH AMERICA, INC.
		Courtesy of NISSAN NORTH AMERICA, INC.
Dirt around the distance sensor	The DCA system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF→ON after the condition improves	DCA system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
Accelerator pedal high temperature	The DCA system is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF→ON after the condition improves	DCA system indicator : White Speaker icon : Yellow (Blink) Dynamic driver assistance icon : Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
		Courtesy of NISSAN NORTH AMERICA, INC.
When the VDC or ABS (including the TCS) operates When the VDC is turned OFF	The DCA is automatically canceled. NOTE: The system operates if the dynamic driver assistance switch is turned OFF→ON after the condition improves	Courtesy of NISSAN NORTH AMERICA, INC.	Beep

Warning Operation Approach Warning

• If own vehicle comes closer to the vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and DCA system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:
  • The vehicle ahead detection indicator blinks.
  • The chime sounds.
• The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:
  • When the vehicles are traveling at the same speed and the distance between vehicles is not changing
  • When the vehicle ahead is traveling faster and the distance between vehicles is increasing
  • When a vehicle cuts in near own vehicle
• The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

  Condition		Action	Display on information display	Buzzer
  DCA ON	Vehicle is absent	-	White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  			DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	Vehicle is detected	-	Green Courtesy of NISSAN NORTH AMERICA, INC.	OFF
  			DCA system indicator : White Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
  	There is a possibility of a collision with the vehicle ahead	Accelerator pedal actuation Operates brake	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Beep
  			DCA system indicator : Yellow (Blink) Speaker icon : White Dynamic driver assistance icon : White Courtesy of NISSAN NORTH AMERICA, INC.
