System Description

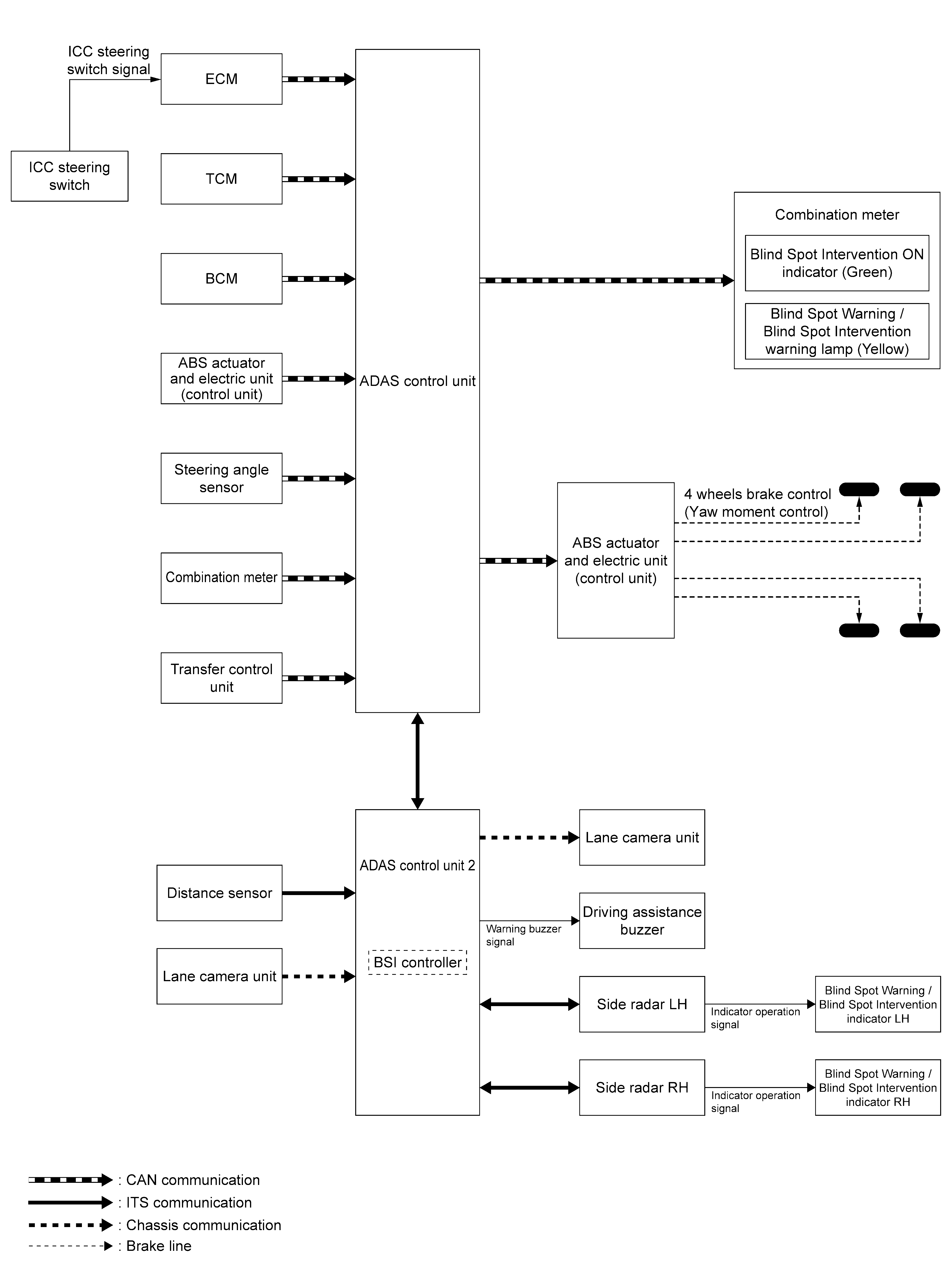

SYSTEM DIAGRAM
ADAS CONTROL UNIT 2 INPUT/OUTPUT SIGNAL ITEM
Input Signal Item
| Reception unit | Transmit unit | Signal name | Description | ||
|---|---|---|---|---|---|
| ADAS control unit 2 | ECM (Via ADAS control unit) |
CAN communication | Accelerator pedal position signal | Receives accelerator pedal position (angle) | |
| Engine speed signal | Receives engine speed | ||||
| ICC steering switch signal | Dynamic driver assistance switch signal | Receives the operational state of the ICC steering switch (dynamic driver assistance switch) | |||
| ADAS control unit 2 | TCM (Via ADAS control unit) |
CAN communication | Input speed signal | Receives the number of revolutions of input shaft | |
| Current gear position signal | Receives a current gear position | ||||
| Shift position signal | Receives a select lever position | ||||
| Output shaft revolution signal | Receives the number of revolutions of output shaft | ||||
| ADAS control unit 2 | ABS actuator and electric unit (control unit) (Via ADAS control unit) |
CAN communication | ABS malfunction signal | Receives a malfunction state of ABS | |
| ABS operation signal | Receives an operational state of ABS | ||||
| TCS malfunction signal | Receives a malfunction state of TCS | ||||
| TCS operation signal | Receives an operational state of TCS | ||||
| VDC OFF switch signal | Receives an ON/OFF state of VDC | ||||
| VDC malfunction signal | Receives a malfunction state of VDC | ||||
| VDC operation signal | Receives an operational state of VDC | ||||
| Vehicle speed signal | Receives wheel speeds of four wheels | ||||
| Yaw rate signal | Receives yaw rate acting on the vehicle | ||||
| Side G sensor signal | Receives lateral G acting on the vehicle | ||||
| ADAS control unit 2 | Combination meter (Via ADAS control unit) |
CAN communication | Parking brake switch signal | Receives an operational state of the parking brake | |
| System selection signal | Receives a selection state of each item in "Driver assistance" selected on the information display | ||||
| ADAS control unit 2 | BCM (Via ADAS control unit) |
CAN communication | Turn indicator signal | Receives an operational state of the turn signal lamp and the hazard lamp | |
| Dimmer signal | Receives ON/OFF state of dimmer signal | ||||
| ADAS control unit 2 | Steering angle sensor (Via ADAS control unit) |
CAN communication | Steering angle sensor malfunction signal | Receives a malfunction state of steering angle sensor | |
| Steering angle sensor signal | Receives the number of revolutions, turning direction of the steering wheel | ||||
| Steering angle speed signal | Receives the turning angle speed of the steering wheel | ||||
| ADAS control unit 2 | Transfer control unit (Via ADAS control unit) |
CAN communication | Current 4WD mode signal | Receives a mode selection state of the 4WD shift switch | |
| ADAS control unit 2 | Distance sensor | ITS communication | Distance sensor signal | Receives detection results, such as the presence or absence of a leading vehicle and distance from the vehicle | |
| ADAS control unit 2 | Side radar LH, RH | ITS communication | Vehicle detection signal | Receives vehicle detection condition of detection zone | |
| ADAS control unit 2 | Lane camera unit | Chassis communication | Detected lane condition signal | Receives detection results of lane marker | |
Output Signal Item
| Reception unit | Transmit unit | Signal name | Description | ||
|---|---|---|---|---|---|
| ABS actuator and electric unit (via ADAS control unit) |
ADAS control unit 2 | CAN communication | Target yaw moment signal | Transmits a target yaw moment signal to generate yaw moment to the vehicle | |
| Combination meter (Via ADAS control unit) |
ADAS control unit 2 | CAN communication | Blind Spot Warning/Blind Spot Intervention warning lamp signal | Transmits a Blind Spot Warning/Blind Spot intervention warning lamp signal to turn ON the Blind Spot Warning/Blind Spot intervention warning lamp | |
| Blind Spot Intervention ON indicator signal | Transmits a Blind Spot Intervention ON indicator signal to turn ON the Blind Spot Intervention ON indicator | ||||
| Lane camera unit | ADAS control unit 2 | Chassis communication | Vehicle speed signal | Transmits a vehicle speed calculated by the ADAS control unit | |
| Turn indicator signal | Transmits a turn indicator signal received from BCM | ||||
| Side radar LH, RH | ADAS control unit 2 | ITS communication | Vehicle speed signal | Transmits a vehicle speed calculated by the ADAS control unit | |
| Blind Spot Warning/Blind Spot Intervention indicator signal | Transmits a Blind Spot Warning/Blind Spot Intervention indicator signal to turn ON the Blind Spot Warning/Blind Spot Intervention indicator | ||||
| Blind Spot Warning/Blind Spot Intervention indicator dimmer signal | Transmits a Blind Spot Warning/Blind Spot Intervention indicator dimmer signal to dimmer Blind Spot Warning/Blind Spot Intervention indicator | ||||
| Driver assistance buzzer | ADAS control unit 2 | Warning buzzer signal | Transmits a warning buzzer signal to activate the buzzer. | ||
FUNCTION DESCRIPTION
- The Blind Spot Intervention system can help alert the driver of other vehicles in adjacent lanes when changing lanes. Blind Spot Intervention always operates together with Blind Spot Warning.
- The Blind Spot Intervention system operates above approximately 60 km/h (37 MPH).
- The Blind Spot Intervention system uses side radar installed near the rear bumper to detect other vehicles beside vehicle in an adjacent lane.

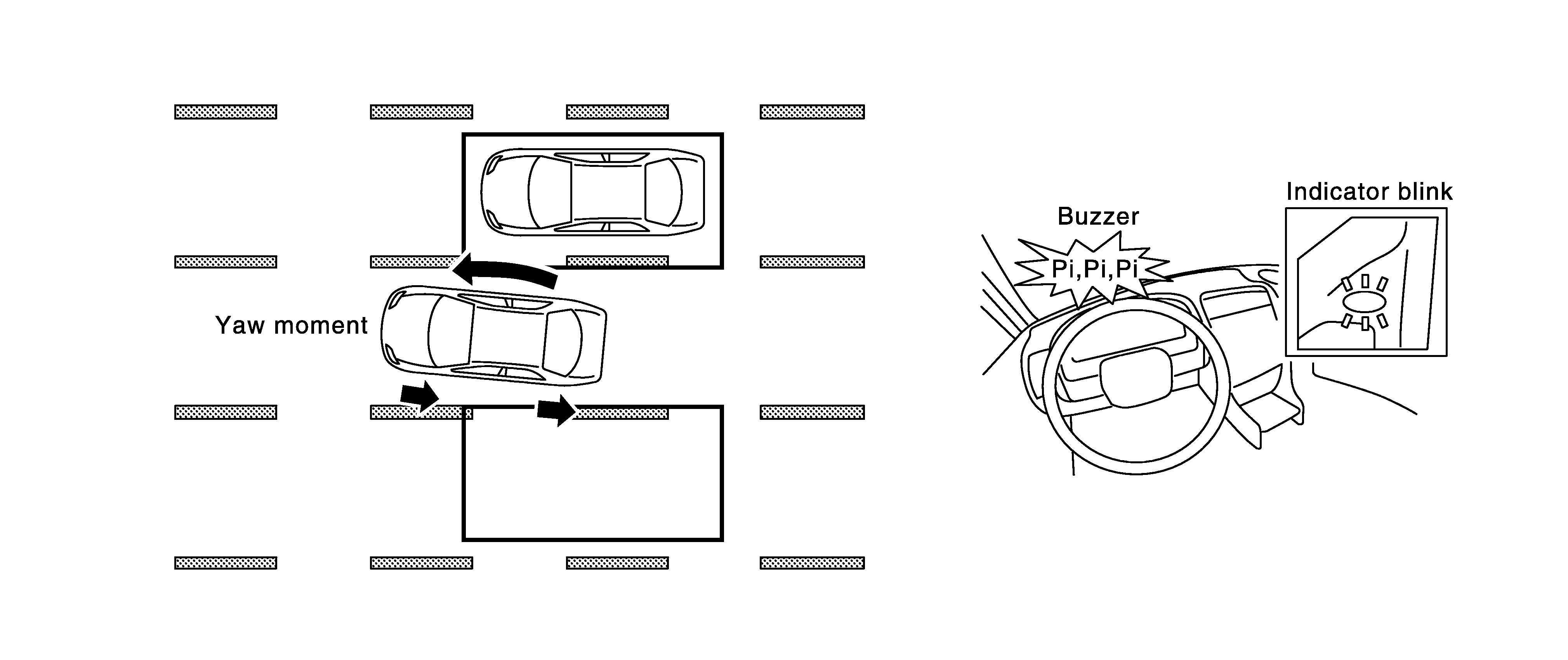

- The side radar can detect vehicles on either side of vehicle within the detection zone shown as illustrated.
- This detection zone starts from the outside mirror of vehicle and extends approximately 10 ft (3.0 m) behind the rear bumper, and approximately 10 ft (3.0 m) sideways.
- If the Blind Spot Warning/Blind Spot Intervention indicator is illuminated while vehicle is approaching a lane marker, the Blind Spot Warning/Blind Spot Intervention indicator blinks and an audible warning will sound three times. Then the system applies the brakes on one side of the vehicle for a short period of time to help return the vehicle back to the center of the lane.
- Blind Spot Intervention operates regardless of turn signal usage.
- The brightness of Blind Spot Warning/Blind Spot Intervention indicator lights is adjusted automatically depending on the brightness of the ambient light.
NOTE:
- Blind Spot Warning/Blind Spot Intervention indicator is installed on the front door corner cover (For Mexico).
- Blind Spot Warning/Blind Spot Intervention indicator is integrated with the door mirror glass (Except for Mexico).
- Blind Spot Intervention is typically activated earlier than LDP when getting closer to the lane marker.
- Warning and brake control will only be activated if the Blind Spot Warning/Blind Spot Intervention indicator is already illuminated when vehicle approaches a lane marker.
- If another vehicle comes into the detection zone after vehicle has crossed a lane marker, no warning or brake control will be activated.
BLIND SPOT INTERVENTION SYSTEM OPERATION DESCRIPTION
- ADAS control unit enables Blind Spot Intervention system.
- Turn ON the dynamic driver assistance switch, and Blind Spot Intervention system setting on the navigation screen. Then Blind Spot Intervention ON indicator comes on.
- Combination meter turns Blind Spot Intervention ON indicator ON/OFF according to the signals from ADAS control unit via CAN communication.
- Side radar detects a vehicle in the adjacent lane, and transmits the vehicle detection signal to ADAS control unit via ITS communication.
- Side radar receives vehicle speed signal from ADAS control unit and changes its detecting function.
- Lane camera unit monitors lane markers of the traveling lane and transmits the detected lane condition signal to ADAS control unit via ITS communication.
- ADAS control unit starts the control as follows, based on a vehicle detection signal, lane condition signal, turn signal and dimmer signal transmitted from BCM via CAN communication:
- Blind Spot Warning/Blind Spot Intervention indicator signal and Blind Spot Warning/Blind Spot Intervention indicator dimmer signal transmission to side radar.
- Warning buzzer signal transmission to ADAS control unit 2 via ITS communication.
- Calculation of necessary yaw moment and transmission of the target yaw moment signal to ABS actuator and electric unit (control unit).
- Side radar transmits an indicator operation signal to the Blind Spot Warning/Blind Spot Intervention indicator according to Blind Spot Warning/Blind Spot Intervention indicator operation signal and Blind Spot Warning/Blind Spot Intervention indicator dimmer signal.
- ABS actuator and electric unit (control unit) controls brake pressure of four wheels respectively according to the target yaw moment signal.
Operation Condition of Blind Spot Intervention System
ADAS control unit performs the control when the following conditions are satisfied.
- Blind Spot Intervention ON indicator: ON
- Vehicle speed: Approximately 60 km/h (37 MPH) or more
NOTE:
- When the Blind Spot Intervention system setting on the navigation screen is ON.
- The Blind Spot Intervention system may not function properly, depending on the situation. Refer to Handling Precaution .
- Blind Spot Intervention braking will not operate or will stop operating and only a warning chime will sound under the following conditions.
- When the brake pedal is depressed.
- When the accelerator pedal is depressed while brake control assist is provided.
- When steering quickly.
- When the ICC, DCA, PFCW or FEB warnings sound.
- When the hazard warning flashers are operated.
- When driving on a curve at a high speed.
- Under the following conditions, the Blind Spot Intervention system will be turned off automatically, a beep will sound and the Blind Spot Intervention ON indicator will blink. The BSW system is still available, but the Blind Spot Intervention system will not be available until the conditions no longer exist.
- When the VDC system (except TCS function) or ABS operates.
- When the VDC system is turned OFF.
- When the 4WD shift switch is not AUTO position.
- When the SNOW mode switch is turned ON.
