On Board Diagnosis Function

DESCRIPTION

The DTC is displayed on the information display by operating the ICC steering switch.

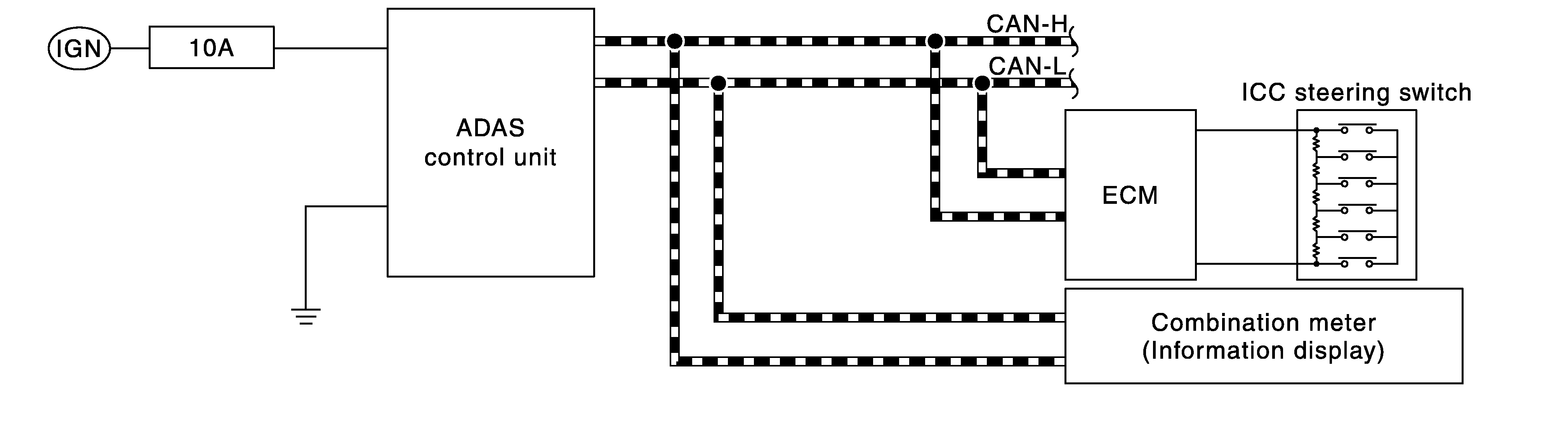

On Board Self-diagnosis System Diagram

Courtesy of NISSAN NORTH AMERICA, INC.

METHOD OF STARTING

1. Turn the ignition switch OFF.
2. Start the engine.

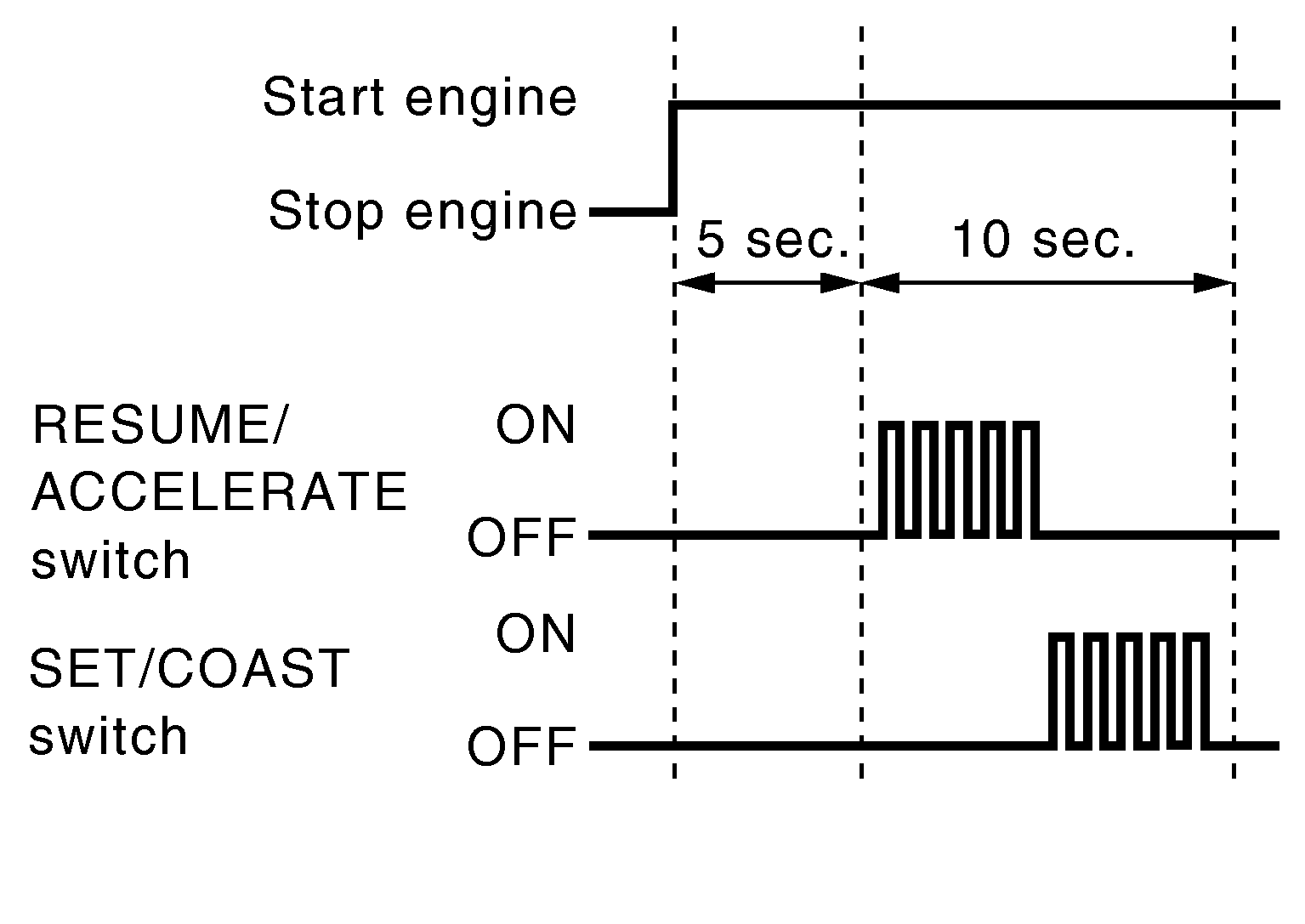

3. Wait for 5 seconds after starting the engine. Push up the RESUME/ACCELERATE switch 5 times and push down the SET/COAST switch 5 times within 10 seconds.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE: If the above operation cannot be performed within 10 seconds after waiting for 5 seconds after starting the engine, repeat the procedure from step 1.

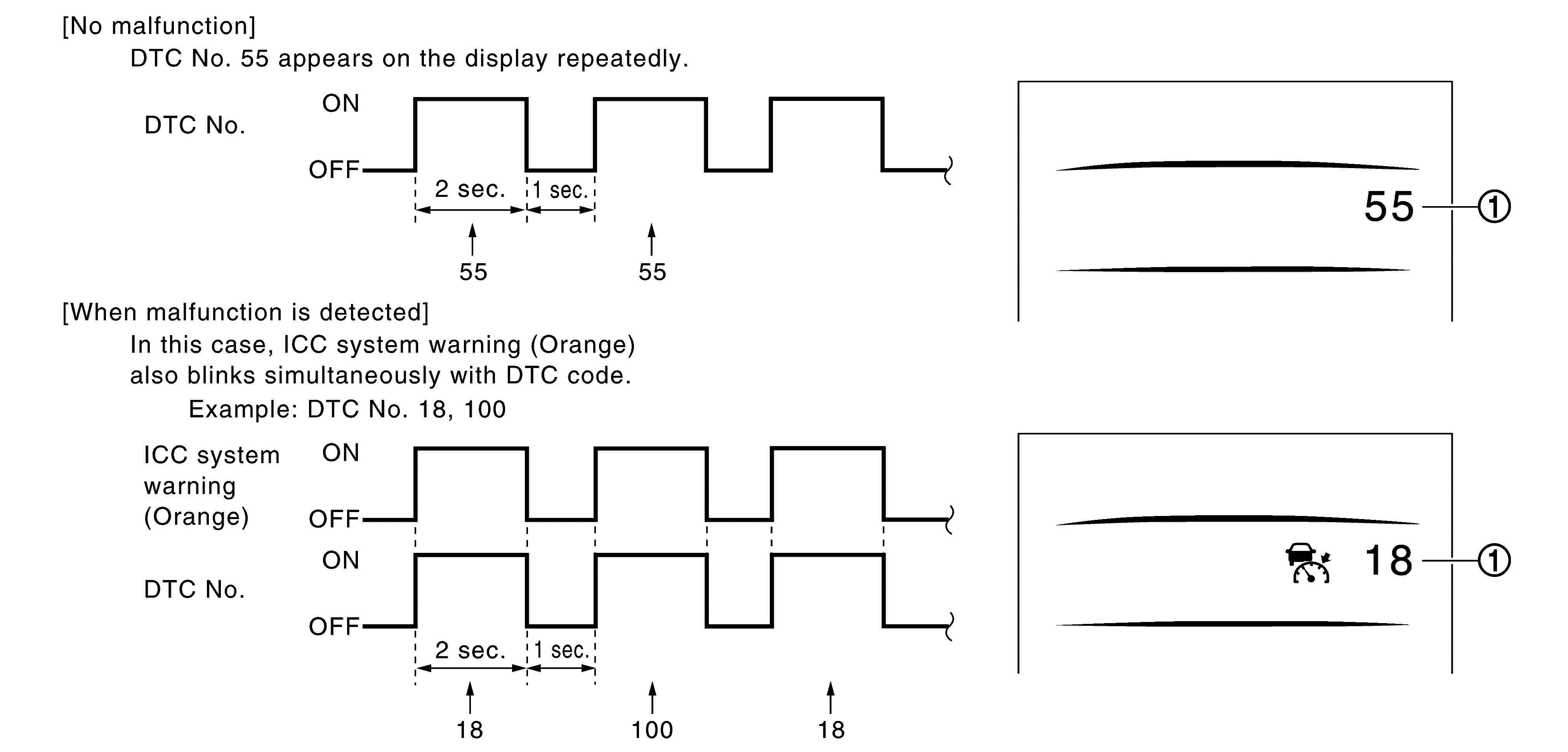

4. The DTC is displayed on the set vehicle speed indicator on the ICC system display on the information display when the on board self-diagnosis starts. Refer to DTC Index .

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE:

   • It displays for up to 5 minutes and then stops.
   • If multiple malfunctions exist, up to 6 DTCs can be stored in memory at the most, and the most recent one is displayed first.

WHEN THE ON BOARD SELF-DIAGNOSIS DOES NOT START

If the on board self-diagnosis does not start, check the following items.

HOW TO ERASE ON BOARD SELF-DIAGNOSIS

1. Turn the ignition switch OFF.
2. Start the engine, and then start the on board self-diagnosis.
3. Press the CANCEL switch 5 times, and then press the DISTANCE switch 5 times under the condition that the on board self-diagnosis starts.

   Courtesy of NISSAN NORTH AMERICA, INC.

   NOTE:

   • Complete the operation within 10 seconds after pressing the CANCEL switch first.
   • If the operation is not completed within 10 seconds, repeat the procedure from step 1.
4. DTC 55 is displayed after erasing.
   NOTE: DTCs for existing malfunction can not be erased.
5. Turn ignition switch OFF, and finish the diagnosis.
