Component Location

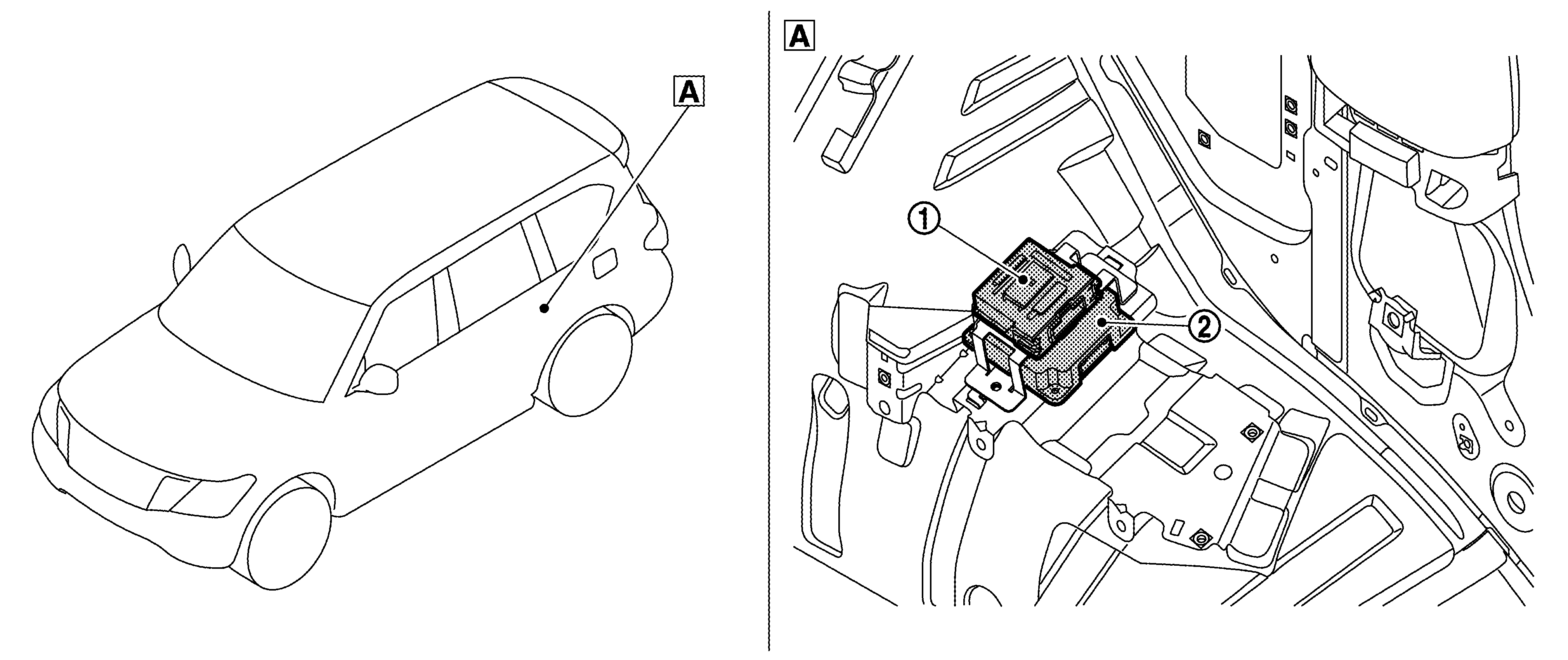

GNSDB147253Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Inside of luggage side finisher lower
No. Component Description
SYMBOL ADAS control unit 2
  • Controls each system, based on CAN communication (via ADAS control unit), ITS communication, and chassis communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication (via ADAS control unit), ITS communication, and Chassis communication
SYMBOL ADAS control unit
  • Controls each system, based on CAN communication, ITS communication, and chassis communication signals received from each control unit
  • Transmits signals necessary for control between CAN communication, ITS communication, and Chassis communication
