Physical Values

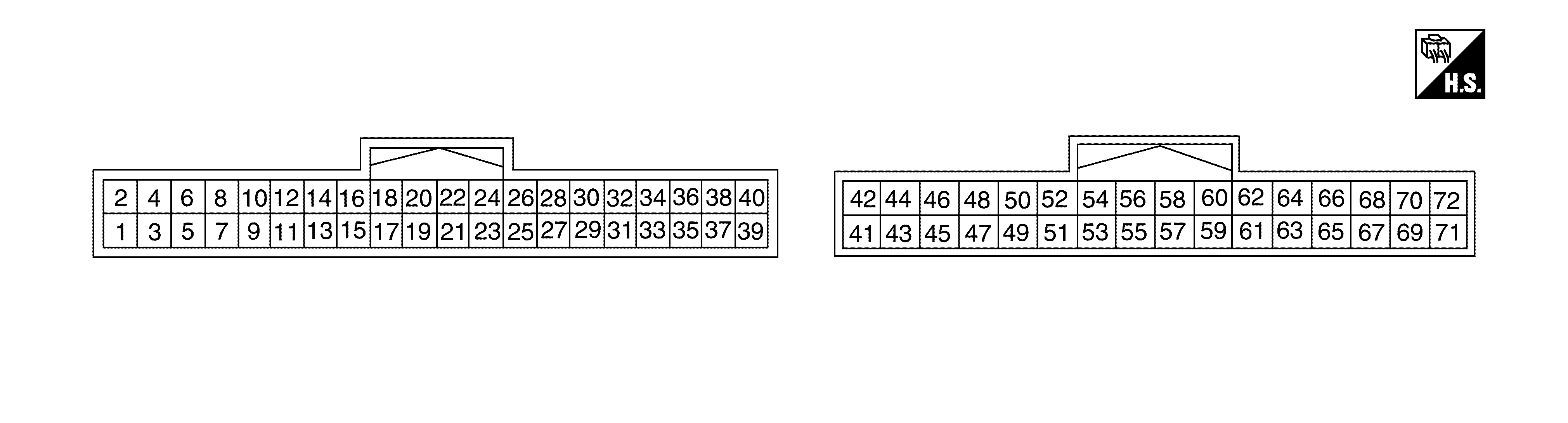

TERMINAL LAYOUT

Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES

Terminal (Wire color)		Description		Condition		Reference value (Approx.)
+	-	Signal name	Input/Output	Condition		Reference value (Approx.)
1 (B)	Ground	Ground	-	Ignition switch ON	-	0 V
2 (Y/G)	1 (B)	Battery power supply	Input	Ignition switch OFF	-	Battery voltage
3 (GR/L)	1 (B)	Ignition signal	Input	Ignition switch ON	-	Battery voltage
4 (V)	1 (B)	ACC power supply	Input	Ignition switch ACC	-	Battery voltage
19 (SB)	-	AV communication signal (H)	Input/Output	-	-	-
20 (LG)	-	AV communication signal (L)	Input/Output	-	-	-
25 (P)	Ground	Reverse signal	Input	Ignition switch ON	R position	12.0 V
25 (P)	Ground	Reverse signal	Input	Ignition switch ON	Other than R position	0 V
27 (L)	-	CAN-H	Input/Output	-	-	-
28 (P)	-	CAN-L	Input/Output	-	-	-
30 (LG)	1 (B)	Retract motor operation signal (close)	Input	Ignition switch ON	Passenger side door mirror is in retracted status	12.0 V
30 (LG)	1 (B)	Retract motor operation signal (close)	Input	Ignition switch ON	Passenger door mirror is in expanded status	0 V
32 (G/O)	1 (B)	Retract motor operation signal (open)	Input	Ignition switch ON	Passenger side door mirror is in retracted status	0 V
32 (G/O)	1 (B)	Retract motor operation signal (open)	Input	Ignition switch ON	Passenger door mirror is in expanded status	12.0 V
47 (W)	48	Camera image signal	Output	Ignition switch ON	At camera image is displayed.	Courtesy of NISSAN NORTH AMERICA, INC.
48	Ground	Camera image signal ground	-	Ignition switch ON	-	0 V
49 (B)	52 (W)	Rear camera communication signal	Input/Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
50 (R)	52 (W)	Rear camera power supply	Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
52 (W)	Ground	Rear camera ground	-	Ignition switch ON	-	0 V
53 (G)	54	Rear camera image signal (+)	Input	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
54	Ground	Rear camera image signal (-)	-	Ignition switch ON	-	0 V
55 (W)	58 (B)	Side camera driver side communication signal	Input/Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
56 (R)	58 (B)	Side camera driver side power supply	Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
58 (B)	Ground	Side camera driver side ground	-	Ignition switch ON	-	0 V
59 (G)	60	Side camera driver side image signal (+)	Input	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
60	Ground	Side camera driver side image signal (-)	-	Ignition switch ON	-	0 V
61 (W)	64 (B)	Side camera passenger side communication signal	Input/Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
62 (R)	64 (B)	Side camera passenger side power supply	Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
64 (B)	Ground	Side camera passenger side ground	-	Ignition switch ON	-	0 V
65 (G)	66	Side camera passenger side image signal (+)	Input	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
66	Ground	Side camera passenger side image signal (-)	-	Ignition switch ON	-	0 V
67 (W)	70 (B)	Front camera communication signal	Input/Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
68 (R)	70 (B)	Front camera power supply	Output	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	6.0 V
70 (B)	Ground	Front camera ground	-	Ignition switch ON	-	0 V
71 (G)	72	Front camera image signal	Input	Ignition switch ON	"CAMERA" switch is ON or shift position is "R".	Courtesy of NISSAN NORTH AMERICA, INC.
72	Ground	Front camera image signal (-)	-	Ignition switch ON	-	0 V
