Component Location

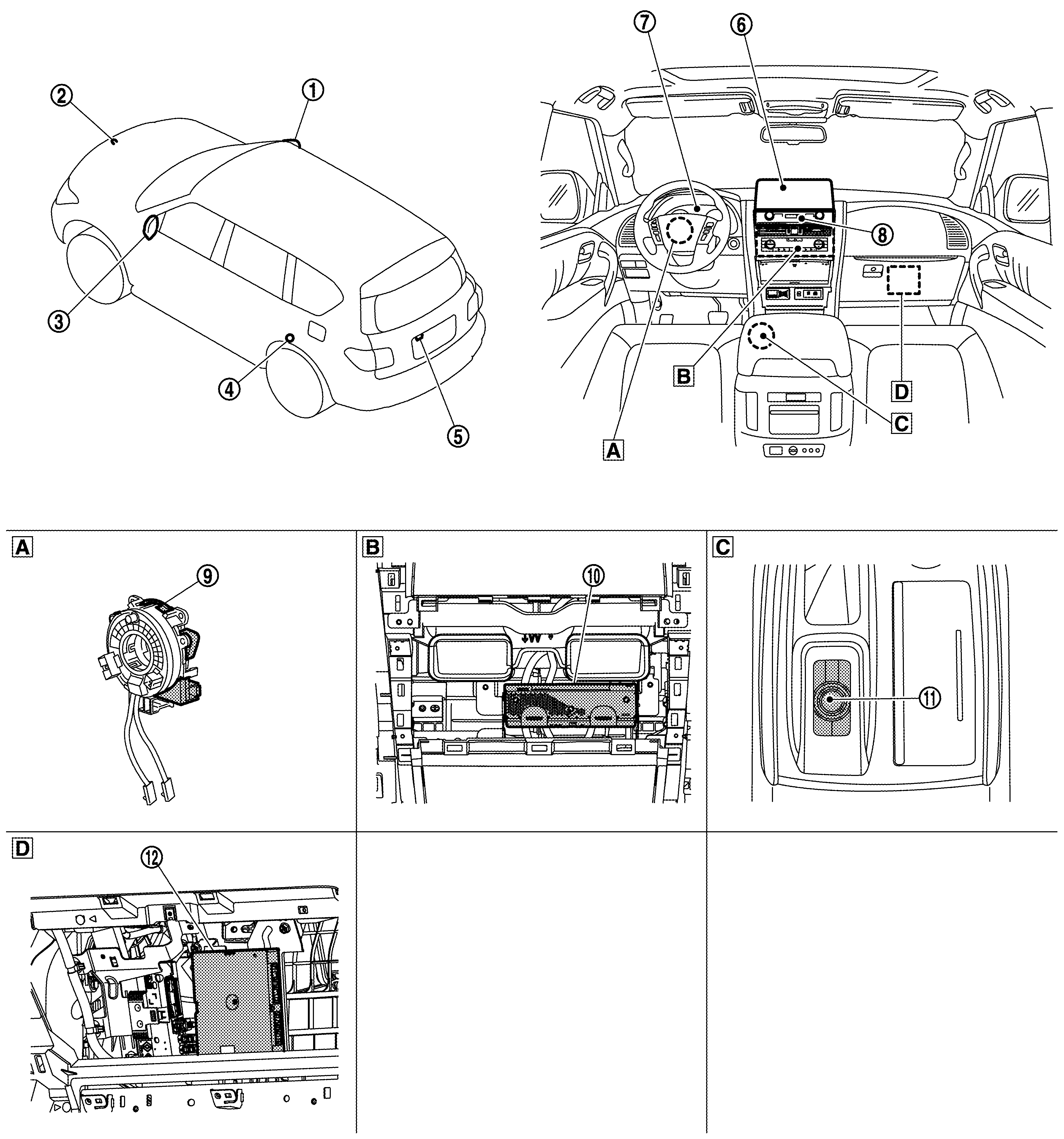

GNSDB145257Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Side camera RH SYMBOL Front camera SYMBOL Side camera LH
SYMBOL ADAS control unit SYMBOL Rear camera SYMBOL Display unit
SYMBOL Combination meter SYMBOL Preset switch SYMBOL Steering angle sensor
SYMBOL AV control unit SYMBOL Multifunction switch SYMBOL Around view monitor control unit
SYMBOL Spiral cable part SYMBOL Cluster lid C removed condition SYMBOL Center console
SYMBOL Behind of glove box
