Work Flow

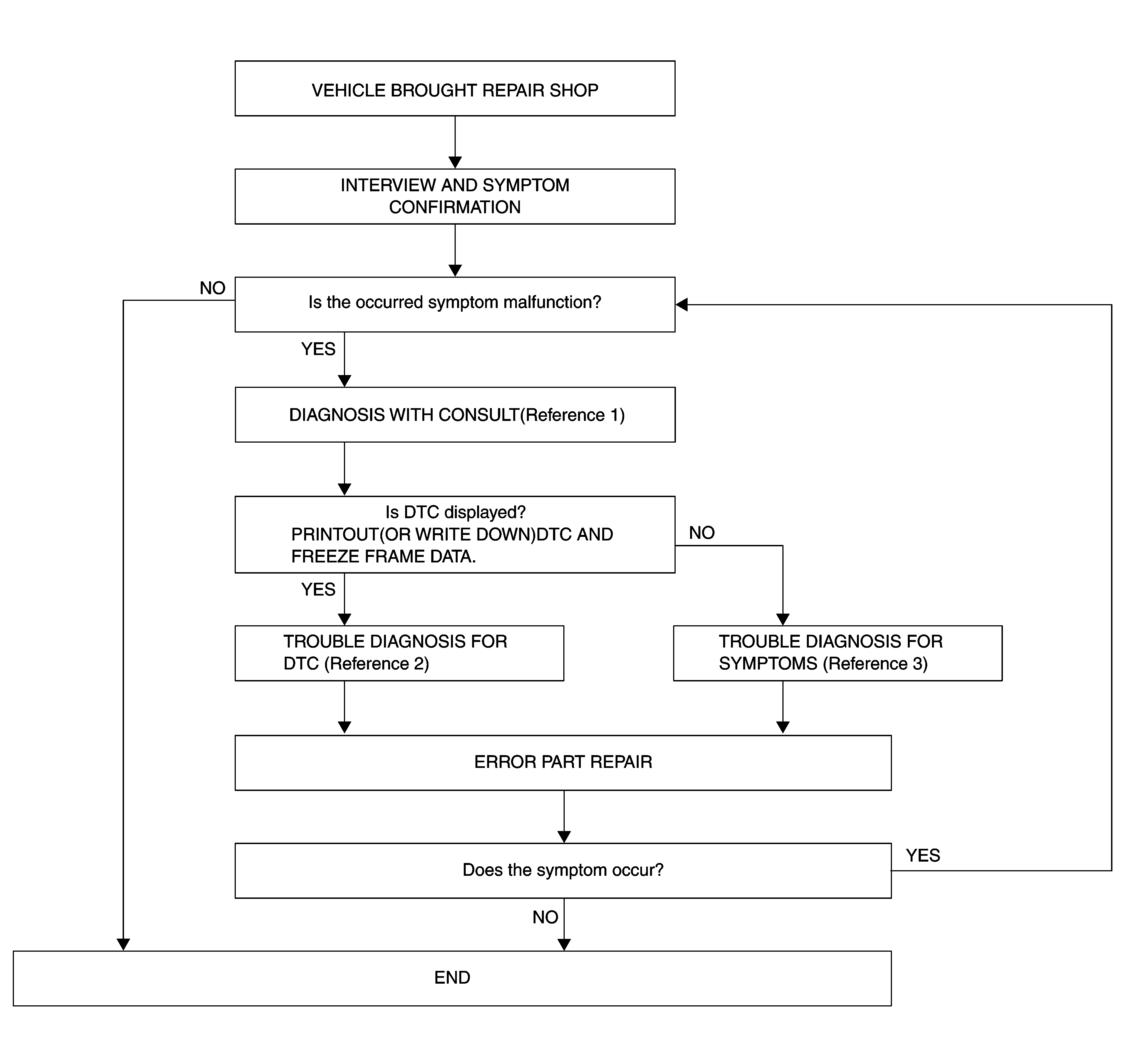

OVERALL SEQUENCE

Courtesy of NISSAN NORTH AMERICA, INC.

• Reference 1... Refer to Diagnosis Description .
• Reference 2... Refer to DTC Index .
• Reference 3... Refer to Symptom Table .

DETAILED FLOW

1. INTERVIEW AND SYMPTOM CONFIRMATION

   Check the malfunction symptoms by performing the following items.

   • Interview the customer to obtain the malfunction information (conditions and environment when the malfunction occurred).
   • Check the symptom.

   Is the occurred symptom malfunction?

   YES>>

   GO TO 2.

   NO>>

   Inspection End.

2. DIAGNOSIS WITH CONSULT
   1. Connect CONSULT and perform a self-diagnosis for "MULTI AV". Refer to Diagnosis Description .
      NOTE: Skip to step 4 of the diagnosis procedure if "MULTI AV" is not displayed.
   2. When DTC is detected, follow the instructions below:
      • Record DTC and Freeze Frame Data.

   Is DTC displayed?

   YES>>

   GO TO 3.

   NO>>

   GO TO 4.

3. TROUBLE DIAGNOSIS FOR DTC
   1. Check the DTC indicated in the "Self-Diagnosis Results".
   2. Perform the relevant diagnosis referring to the DTC Index. Refer to DTC Index .

   >>

   GO TO 5.

4. TROUBLE DIAGNOSIS FOR SYMPTOMS

   Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to Symptom Table .

   >>

   GO TO 5.

5. ERROR PART REPAIR
   1. Repair or replace the identified malfunctioning parts.
   2. Perform a self-diagnosis for "MULTI AV" with CONSULT.
      NOTE: Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC has been indicated in the "Self-Diagnosis Results".
   3. Check that the symptom does not occur.

   Does the symptom occur?

   YES>>

   GO TO 1.

   NO>>

   Inspection End.
