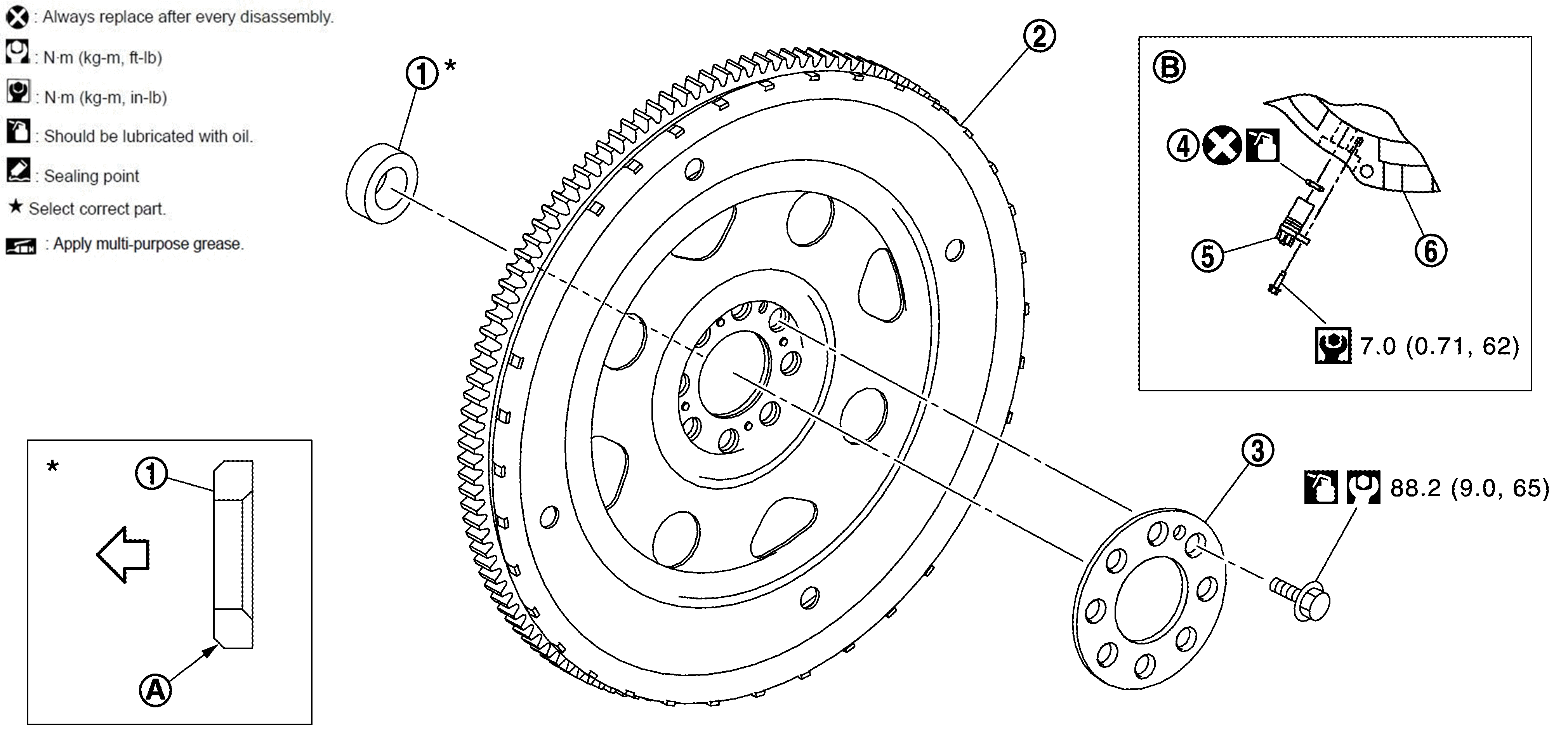

DRIVE PLATE : Exploded View

Fig 1: Drive Plate With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Pilot converter	2.	Drive plate	3.	Reinforcement plate
4.	O-ring	5.	Crankshaft position sensor (POS)	6.	Transmission
A.	Chamfered	B.	Installed on transmission
	: Crankshaft side
	: N.m (kg-m, in-lb)
	: N.m (kg-m, ft-lb)
	: Always replace after every disassembly.
	: Should be lubricated with oil.
