Power Steering Gear

STEERING OUTER SOCKET AND INNER SOCKET

Outer socket	Rocking torque	0.3 - 2.9 N.m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
	Measurement on spring balance	1.4 - 42.7 N (0.143 - 4.36 kg, 0.31 - 9.60 lb)
	Rotating torque	0.3 - 2.9 N.m (0.03 - 0.30 kg-m, 3 - 26 in-lb)
	Axial end play	0.4 mm (0.01 in) or less
Inner socket	Rocking torque	0.5 - 7.8 N.m (0.05 - 0.80 kg-m, 4 - 69 in-lb)

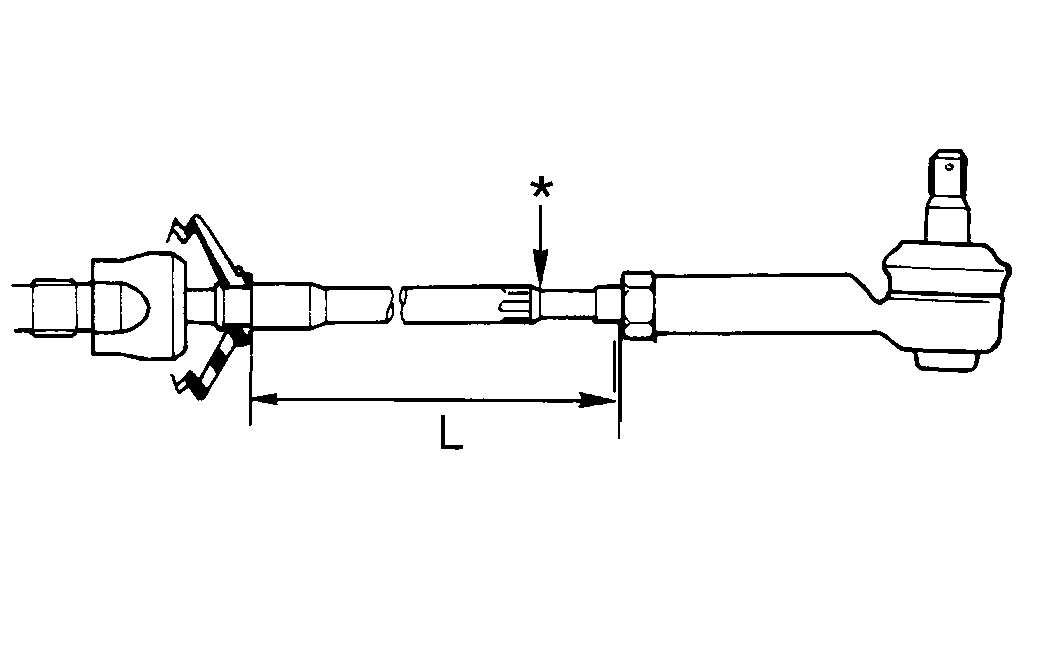

	Measurement on spring balance Measuring point at * mark shown, above	0.8 - 64 N (0.082 - 6.5 kg, 0.18 - 14.4 lb)
Inner socket length (L)		69 mm (2.7 in)
Courtesy of NISSAN NORTH AMERICA, INC.

RACK STROKE

Courtesy of NISSAN NORTH AMERICA, INC.
Rack stroke in neutral position (L)	84 mm (3.32 in)

RACK SLIDING FORCE
