System Description

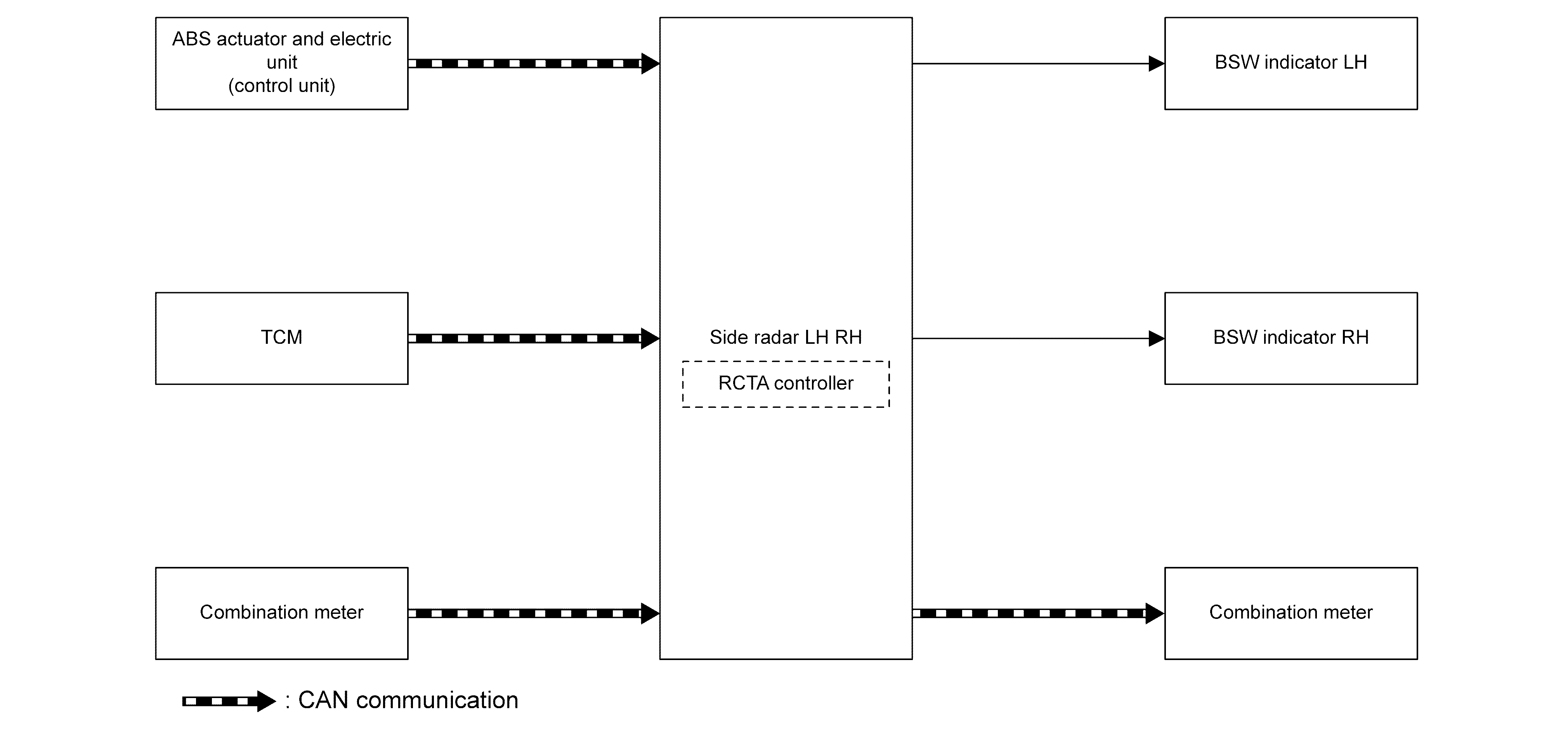

SYSTEM DIAGRAM
| Component | Description |
|---|---|
| TCM | TCM |
| ABS actuator and electric unit (control unit) | ABS Actuator and Electric Unit (Control Unit) |
| Combination meter (FULL TFT METER) | Combination Meter |
| Combination meter (7 INCH INFORMATION DISPLAY) | Combination Meter |
| Side radar LH, RH | Side Radar LH/RH |
| BSW indicator LH, RH | BSW Indicator LH/RH |
SIDE RADAR INPUT/OUTPUT SIGNAL ITEM
Input Signal Item
| Transmit unit | Signal name | Description | |
|---|---|---|---|
| TCM | CAN communication | Shift position signal | Receives a selector lever position |
| ABS actuator and electric unit (control unit) | CAN communication | Vehicle speed signal (ABS) | Receives wheel speeds of four wheels |
| Combination meter | CAN communication | System selection signal | Receives a selection state of each item selected through the vehicle information display |
Output Signal Item
| Reception unit | Signal name | Description | |
|---|---|---|---|
| Combination meter | CAN communication | Buzzer output signal | Transmits a signal to activate buzzer |
| BSW indicator LH, RH | BSW indicator signal | Transmits a BSW indicator signal to turn ON the BSW indicator | |
| BSW indicator dimmer signal | Transmits a BSW indicator dimmer signal to dimmer BSW indicator | ||
FUNCTION DESCRIPTION
- The Rear Cross Traffic Alert (RCTA) system can help alert the driver of approaching vehicles when the driver is backing out of a parking space.
- The RCTA system uses side radars installed near the rear bumper to detect approaching vehicles.
- The RCTA system operates at speeds below 8 km/h (5 MPH) whenever the vehicle is in reverse.

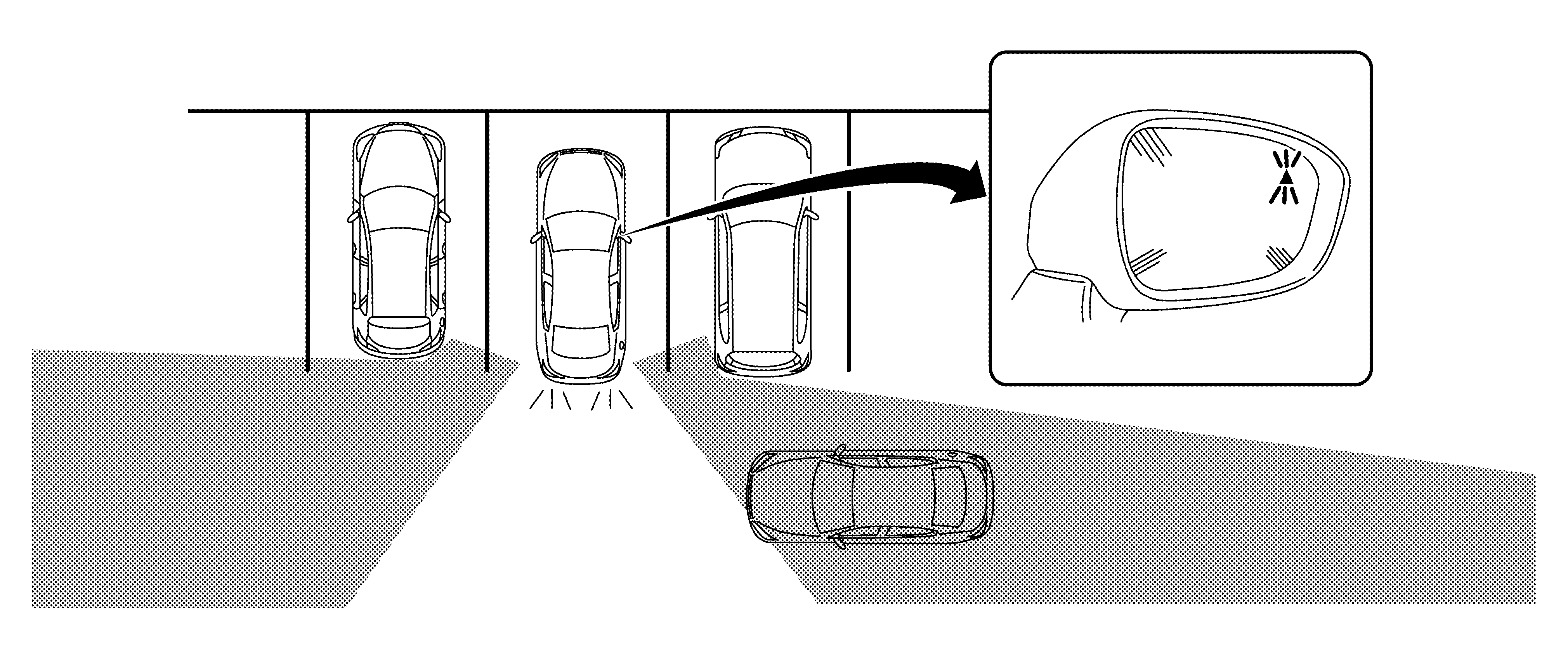

- The side radar can detect vehicles on either side of vehicle within the detection zone shown as illustrated.
- The radar sensors detect the approaching vehicle from up to approximately 20 m (66 ft) away.
- If the radar detects a vehicle approaching from the side, the system gives visual and audible warning.
- If the side radar detects an approaching vehicle from the side, the RCTA system sounds a beep (single beep), the BSW indicator on the side of the approaching vehicle flashes.
OPERATION DESCRIPTION
- Side radar enables RCTA system.
- Side radar starts the control as follows, based on a reverse gear signal and vehicle detection signal.
- Side radar detects a vehicle approaching.
OPERATION CONDITION
Side radar performs the control when the following conditions are satisfied:
- RCTA system: ON
- Vehicle speed: Approximately 8 km/h (5 MPH) or less
- Selector lever: "R" position
CANCEL CONDITION
The side radar cancels the operation when the system is under any conditions of the operation cancellation condition.
- When the system malfunction occurs.
- When the area around the side radar is dirty.
