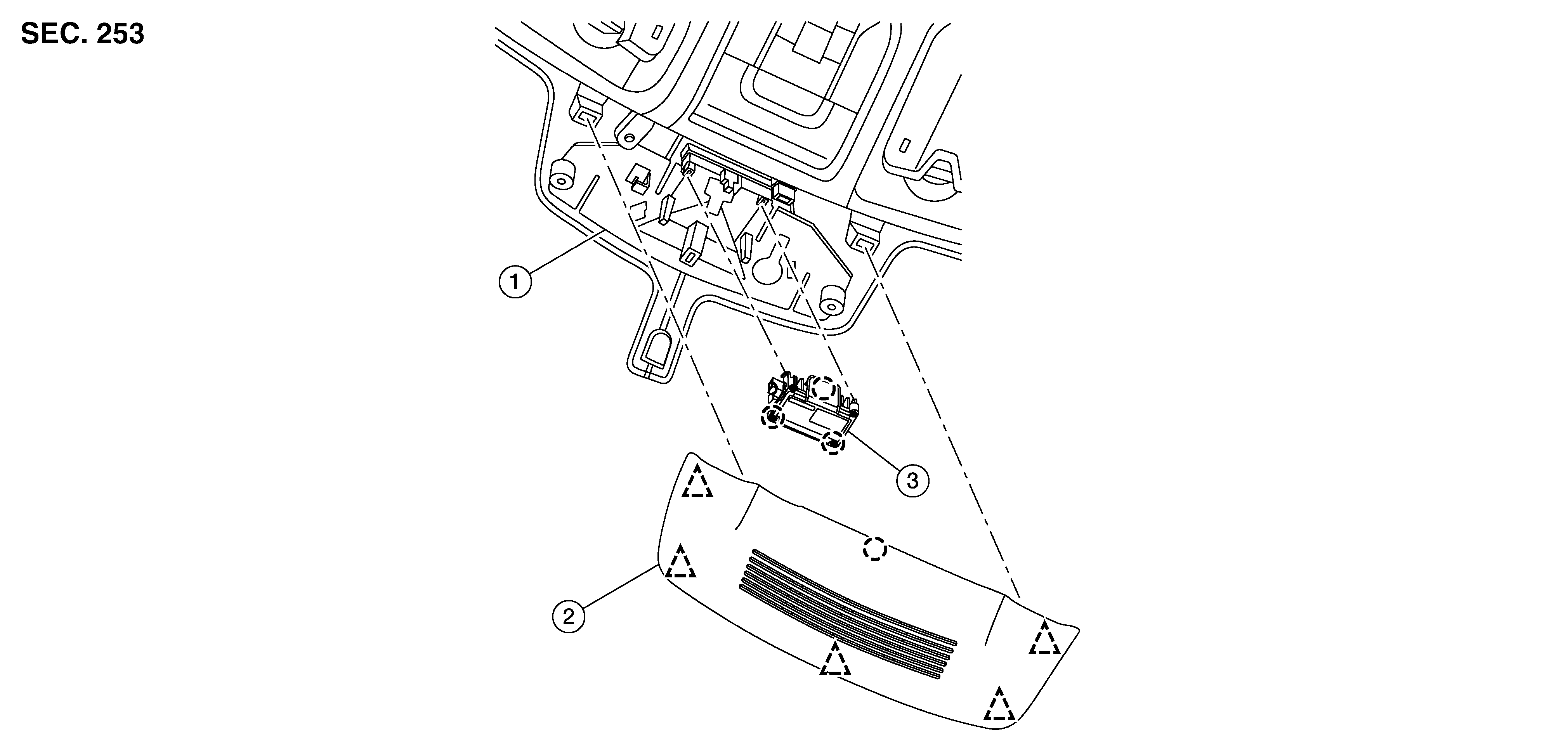

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Front camera unit bracket
2.
Windshield glass finisher
3.
Front camera unit
Pawl
Clip
