Work Procedure

Perform action test to verify the customer's concern.
Perform action test and check the system operation after system diagnosis.

CAUTION:

Fully understand the following items well before the road test;

System description: System Description
Handling precaution: Handling Precaution

CHECK BSW SYSTEM SETTING
1. Start the engine.
2. Check that the BSW system setting can be enabled/disabled on the information display.
3. Turn OFF the ignition switch and wait for 5 seconds or more.
4. Check that the previous setting is saved when the engine starts again.
>>

GO TO 2.

BSW SYSTEM ACTION TEST

Enable the setting of the BSW system on the information display.
Turn BSW system ON.

Check BSW operation according to the following table.

7 inch Information Display

Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer

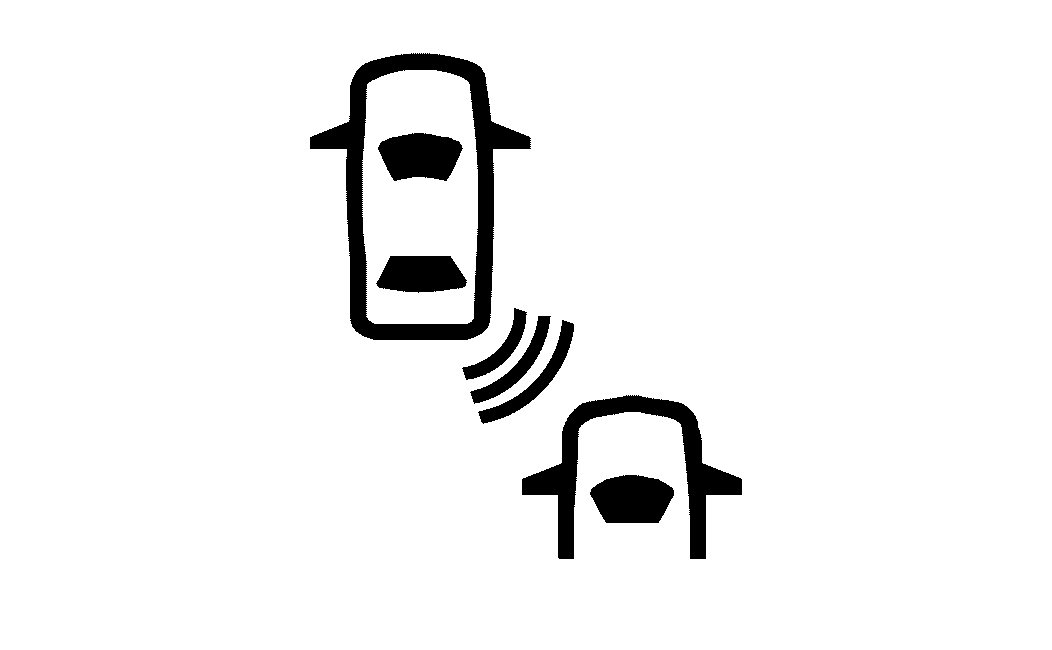

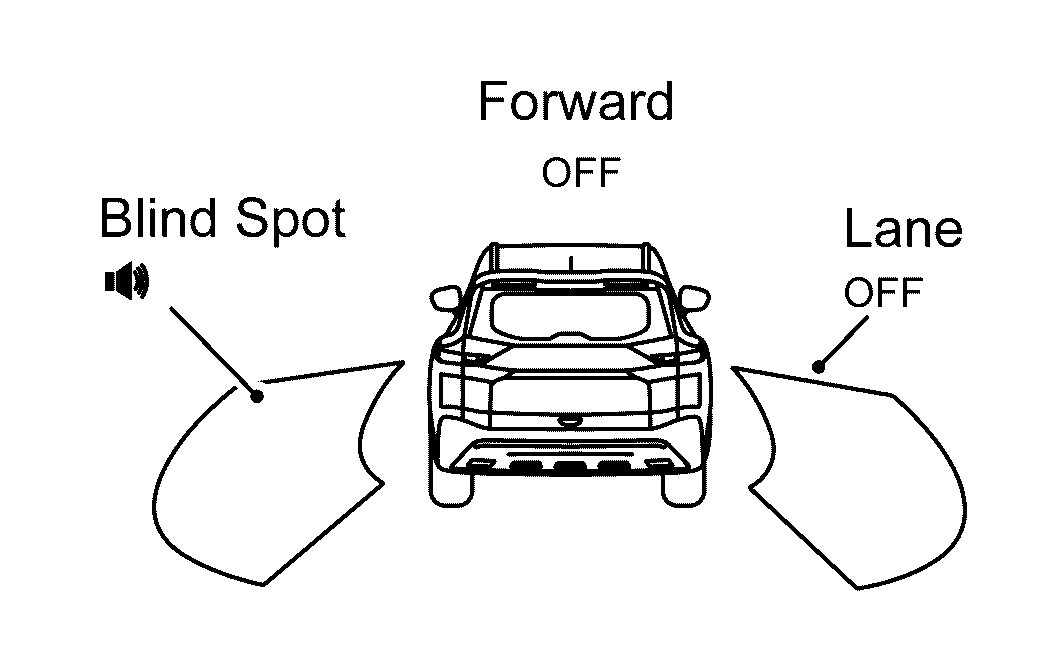

BSW OFF				-	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	OFF

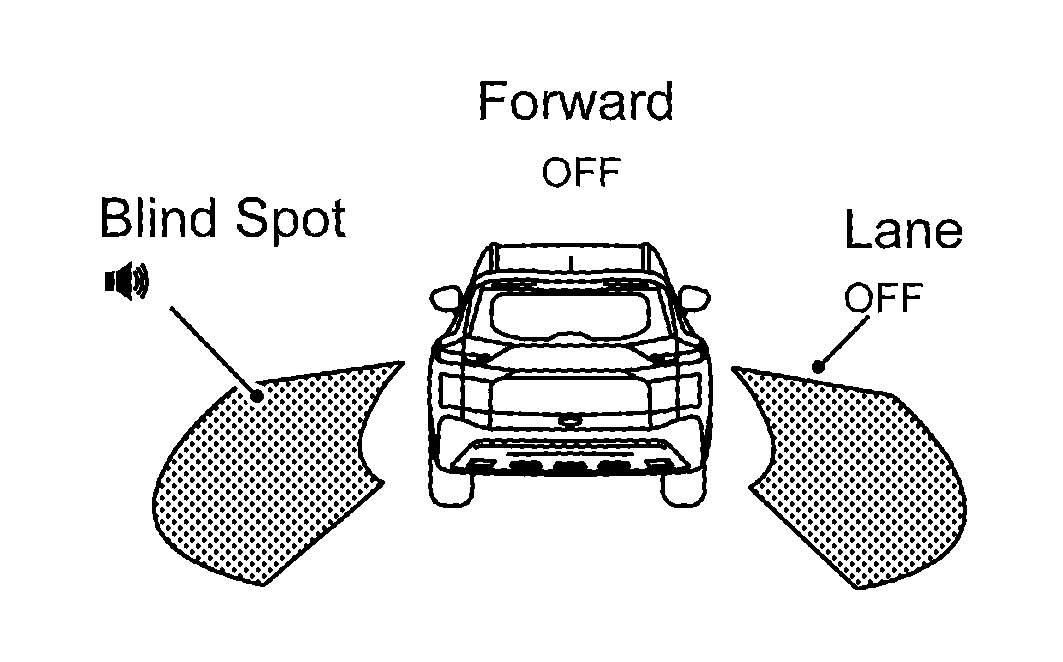

BSW ON	Vehicle speed is less than approx. 29 km/h (18 MPH)			-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
		Vehicle is not detected		-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected	Turn signal is OFF	-	ON	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

FULL TFT METER

Condition				Action	Indication on the BSW indicator	Display on information display	Buzzer

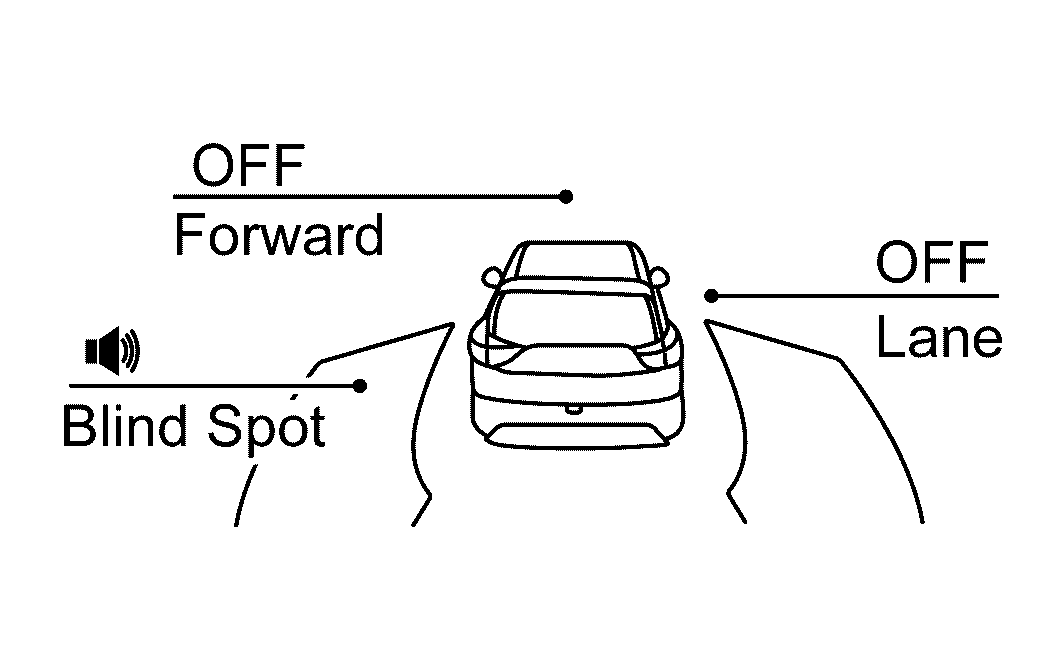

BSW OFF				-	OFF	Courtesy of NISSAN NORTH AMERICA, INC.	OFF

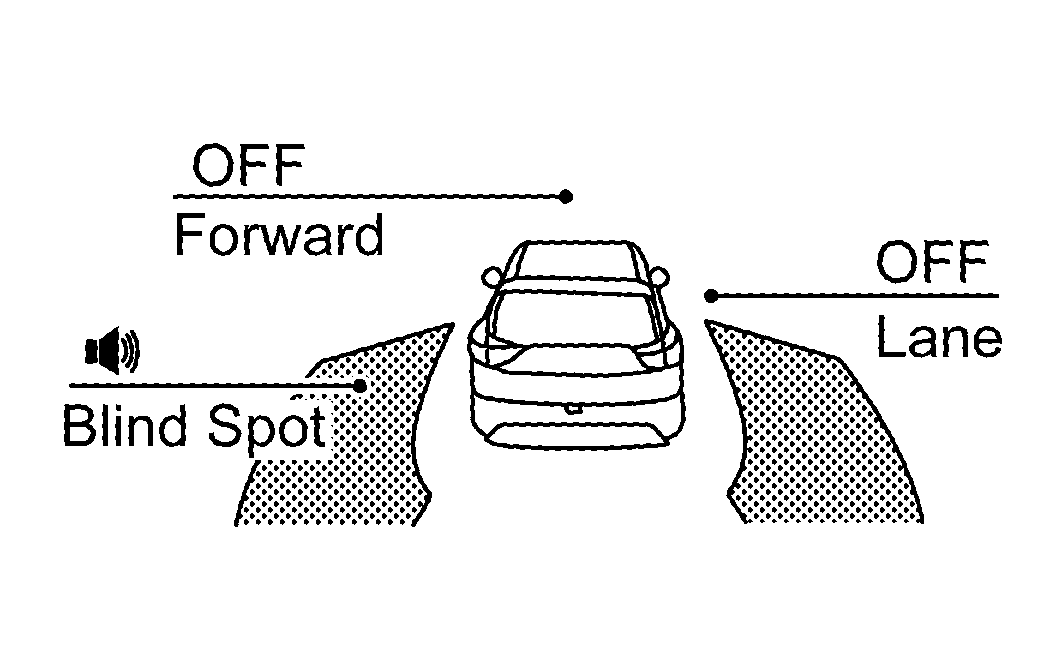

BSW ON	Vehicle speed is less than approx. 29 km/h (18 MPH)			-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
		Vehicle is not detected		-	OFF	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected	Turn signal is OFF	-	ON	BSW system indicator : White Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	Vehicle is detected before turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	Short continuous beeps
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	Yellow (Blink) Courtesy of NISSAN NORTH AMERICA, INC.	OFF
	Vehicle is detected after turn signal operates	Turn signal is ON (vehicle detected direction)	-	Blink	BSW system indicator : Yellow (Blink) Speaker icon : White Courtesy of NISSAN NORTH AMERICA, INC.	OFF

NOTE:

If vehicle speed exceeds approximately 32 km/h (20 MPH), BSW function operates until the vehicle speed becomes lower than approximately 29 km/h (18 MPH).
Time shown in the figure is approximate time.

>>

INSPECTION END
