Reference Value

VALUES ON THE DIAGNOSIS TOOL

NOTE: The following table includes information (items) inapplicable to this vehicle. For information (items) applicable to this vehicle, refer to CONSULT display items.

Monitor item	Condition		Value/Status
Current malfunction	Ignition switch ON		Displays DTC detected as the current malfunction
PWR SUP MONI	Ignition switch ON		10 - 16 V
Ignition switch	Ignition switch ON		ON
MAIN SW	Ignition switch ON	When ProPILOT Assist MAIN switch is pressed	ON
		When ProPILOT Assist MAIN switch is not pressed	OFF
CANCEL SW	Ignition switch ON	When CANCEL switch is pressed	ON
		When CANCEL switch is not pressed	OFF
SET/COAST SW	Ignition switch ON	When SET- switch is pressed	ON
		When SET- switch is not pressed	OFF
RESUME/ACC SW	Ignition switch ON	When RES+ switch is pressed	ON
		When RES+ switch is not pressed	OFF
DISTANCE SW	Ignition switch ON	When DISTANCE switch is pressed	ON
		When DISTANCE switch is not pressed	OFF
Switch 1	Ignition switch ON	When steering assist switch is pressed	ON
		When steering assist switch is not pressed	OFF
Switch 2	NOTE: The item is displayed, but it is not used		-
BRAKE SW	Ignition switch ON	When brake pedal is not depressed	ON
		When brake pedal is depressed	OFF
IDLE SW	Engine running	Idling	ON
		Except idling (depress accelerator pedal)	OFF
STOP LAMP SW	NOTE: The item is displayed, but it is not used		-
DRIVE MODE STATS	NOTE: The item is displayed, but it is not used		-
G (vertical)	NOTE: The item is displayed, but it is not used		-
G (lateral)	NOTE: The item is displayed, but it is not used		-
Vehicle speed	While driving		Almost the same speed as speedometer indication
SET VHCL SPD	When vehicle speed is set		Displays the set vehicle speed
EPS ST angle command value	NOTE: The item is displayed, but it is not used		-
EPS status	NOTE: The item is displayed, but it is not used		-
EPS control request	NOTE: The item is displayed, but it is not used		-
Vibration motor open status	NOTE: The item is displayed, but it is not used		-
ENGINE RPM	Engine running		Almost the same speed as the tachometer indication
THRTL OPENING	Engine running		0 - 100 %
GEAR	NOTE: The item is displayed, but it is not used		-
CLUTCH SW SIG	NOTE: The item is displayed, but it is not used		-
Neutral switch	NOTE: The item is displayed, but it is not used		-
Parking brake holding request	NOTE: The item is displayed, but it is not used		-
Parking brake release request	NOTE: The item is displayed, but it is not used		-
Wiper signal	Ignition switch ON	When wiper LO is operating	Low
		When wiper HI is operating	High
Turn signal	Ignition switch ON	Turn signal is OFF	OFF
		Turn signal LH is operating	LH
		Turn signal RH is operating	RH
SET DISTANCE	ProPILOT Assist system ON and press the DISTANCE switch to change the vehicle-to-vehicle distance setting	When set to "long"	Long
		When set to "middle"	Mid
		When set to "short"	Short
Own vehicle mark	NOTE: The item is displayed, but it is not used		-
VHCL AHEAD	Drive the vehicle and activate the vehicle-to-vehicle distance control mode	When a vehicle ahead is detected (vehicle ahead detection indicator ON)	ON
		When a vehicle ahead is not detected (vehicle ahead detection indicator OFF)	OFF
Vhcl ahead recognition	Drive the vehicle and activate the vehicle-to-vehicle distance control mode	When a vehicle ahead is detected	OK
		When a vehicle ahead is not detected	NG
CRUISE LAMP	NOTE: The item is displayed, but it is not used		-
CRUISE OPE	Drive the vehicle and activate the vehicle-to-vehicle distance control mode	When ProPILOT Assist system is controlling	ON
		When ProPILOT Assist system is not controlling	OFF
Pro Pilot ON/OFF request	NOTE: The item is displayed, but it is not used		-
FEB SELECT	Ignition switch ON	When FEB is ON	ON
		When FEB is OFF	OFF
LDW SELECT	Ignition switch ON	When LDW is ON	ON
		When LDW is OFF	OFF
LDP SELECT	Ignition switch ON	When LDP is ON	ON
		When LDP is OFF	OFF
Steering assist function select	Ignition switch ON	When Steering assist function is ON	ON
		When Steering assist function is OFF	OFF
FEB SW	NOTE: The item is displayed, but it is not used		-
ICC warning output	Ignition switch ON	ProPILOT Assist malfunction message: ON	ON
		ProPILOT Assist malfunction message: OFF	OFF
Speed control mode	Ignition switch ON	When the vehicle-to-vehicle distance control mode is operating	ICC
		When the conventional (fixed speed) cruise control mode is operating	ASCD
		When the cruise control mode is OFF	OFF
Set display lamp	Ignition switch ON	When the vehicle-to-vehicle distance control mode system display is ON	ICC
		When the conventional (fixed speed) cruise control mode system display is ON	ASCD
		When the cruise control mode system display is OFF	OFF
LDP system	NOTE: The item is displayed, but it is not used		-
LDP control	Ignition switch ON	LDP system is malfunctioning	ABNML
		LDP system is normal	NRML
LDW system	Ignition switch ON	When LDW is ON	ON
		When LDW is OFF	OFF
Steering torque (measured)	NOTE: The item is displayed, but it is not used		-
Steering torque rgstrtn stats	NOTE: The item is displayed, but it is not used		-
Steering torque error cause	NOTE: The item is displayed, but it is not used		-

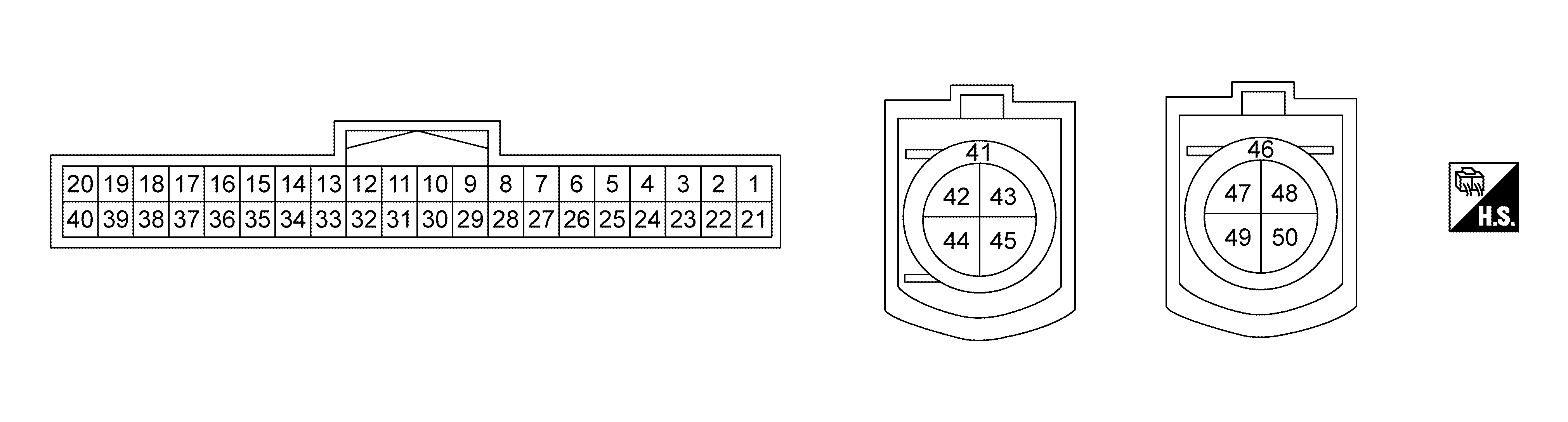

TERMINAL LAYOUT

Courtesy of NISSAN NORTH AMERICA, INC.

PHYSICAL VALUES
