Switch Name and Function

PFCW/LDW/BSW

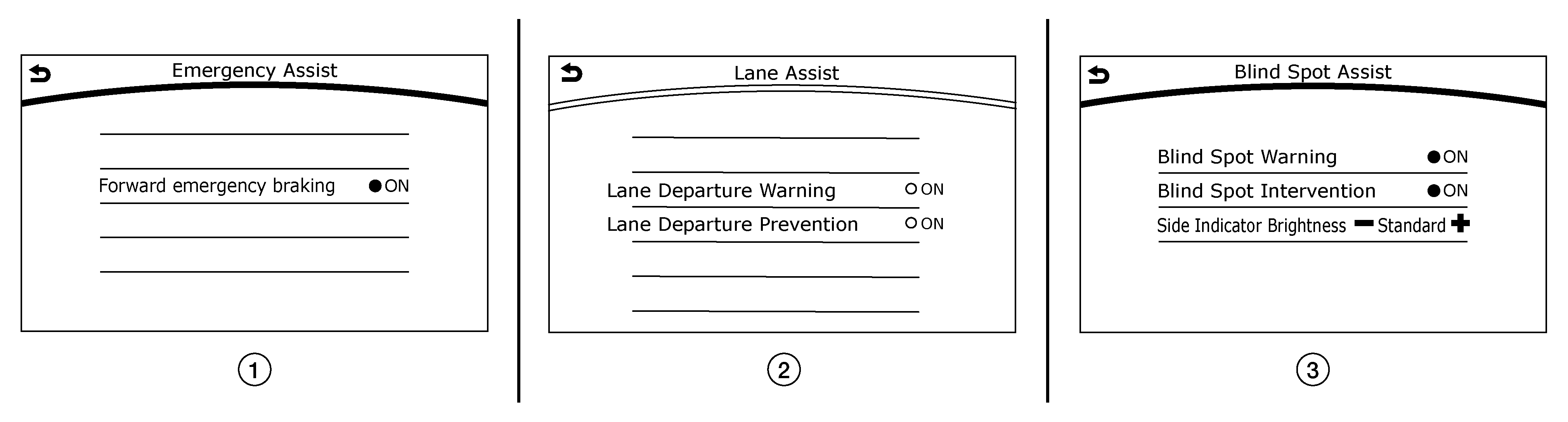

GNSDB138581Courtesy of NISSAN NORTH AMERICA, INC.
No. Switch name Description
SYMBOL PFCW/FEB system setting screen(Integral switch settings screen) The setting of PFCW/FEB system can be switched between ON and OFF
SYMBOL LDW system setting screen(Integral switch settings screen) The setting of LDW system can be switched between ON and OFF
SYMBOL BSW system setting screen(Integral switch settings screen) The setting of BSW system can be switched between ON and OFF
