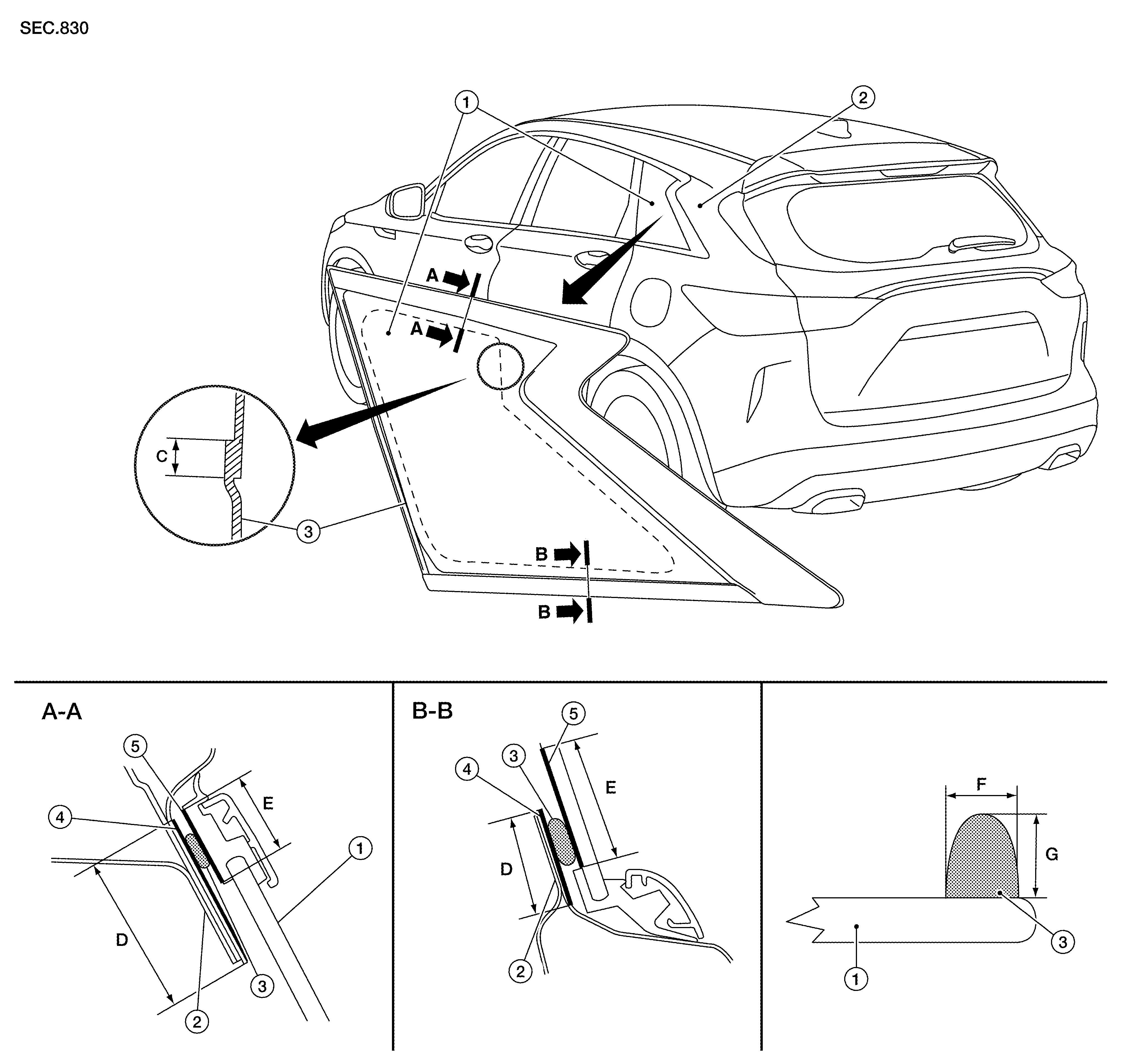

Exploded View

GNSDB138891Courtesy of NISSAN NORTH AMERICA, INC.
1. Quarter window glass 2. Body side outer 3. Adhesive
4. Body primer 5. Glass primer C. 30 mm (1.18 in)
D. 20 mm (0.79 in) E. 15 mm (0.59 in) F. 7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
G. 12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
