Circuit Diagram

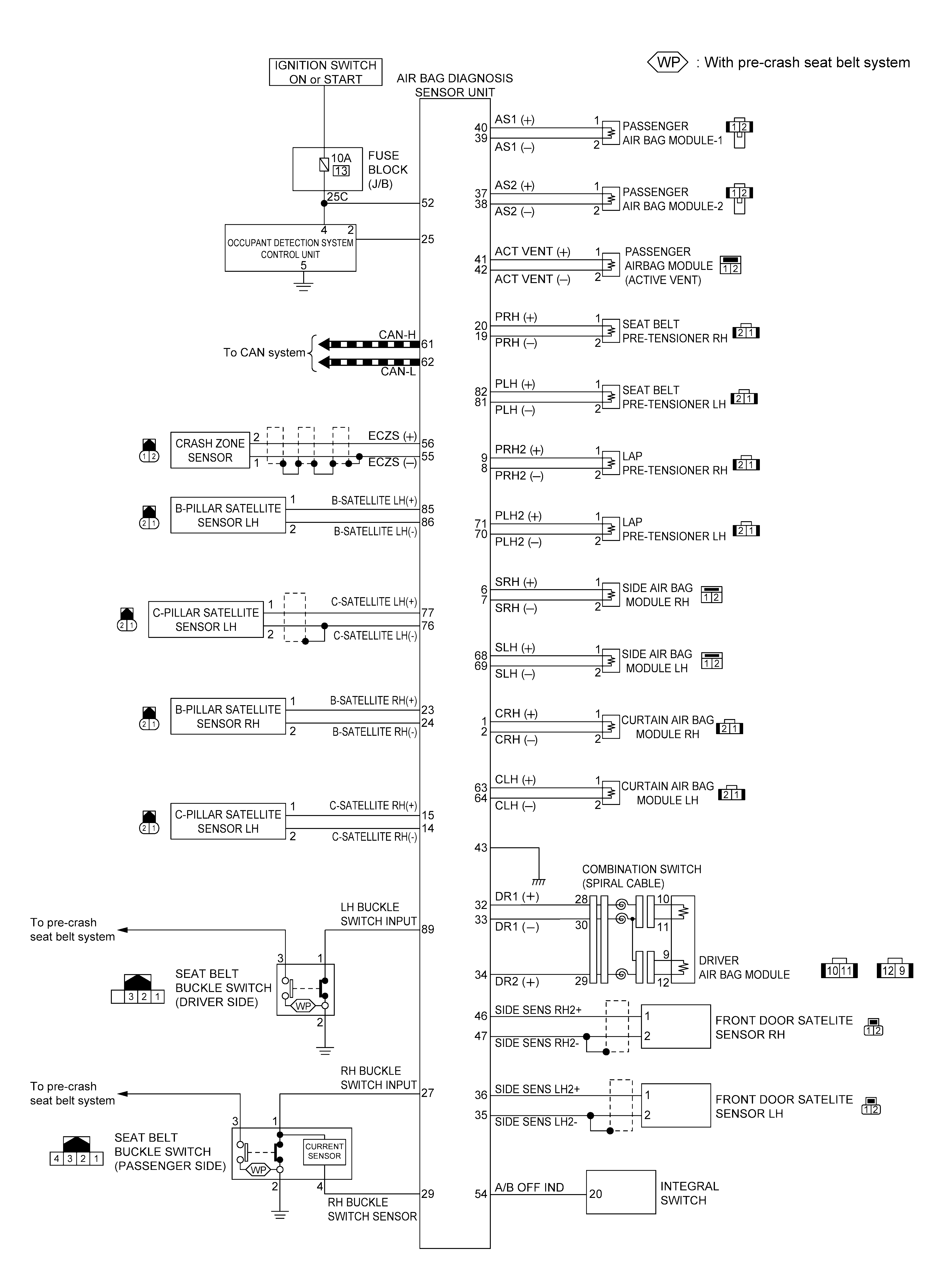

GNSDB147562

Courtesy of NISSAN NORTH AMERICA, INC.

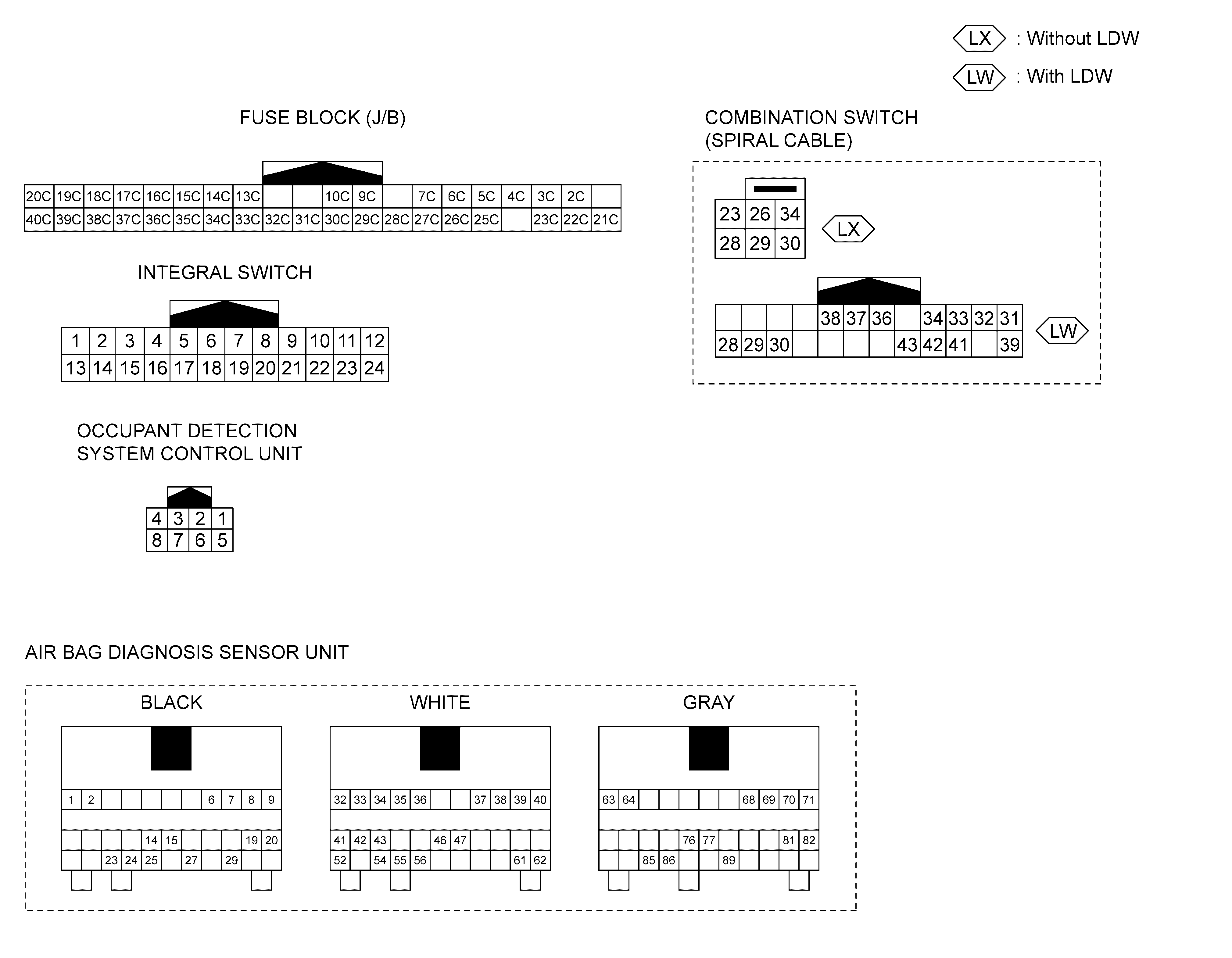

GNSDB148851

Courtesy of NISSAN NORTH AMERICA, INC.
