DRIVE PLATE : Exploded View

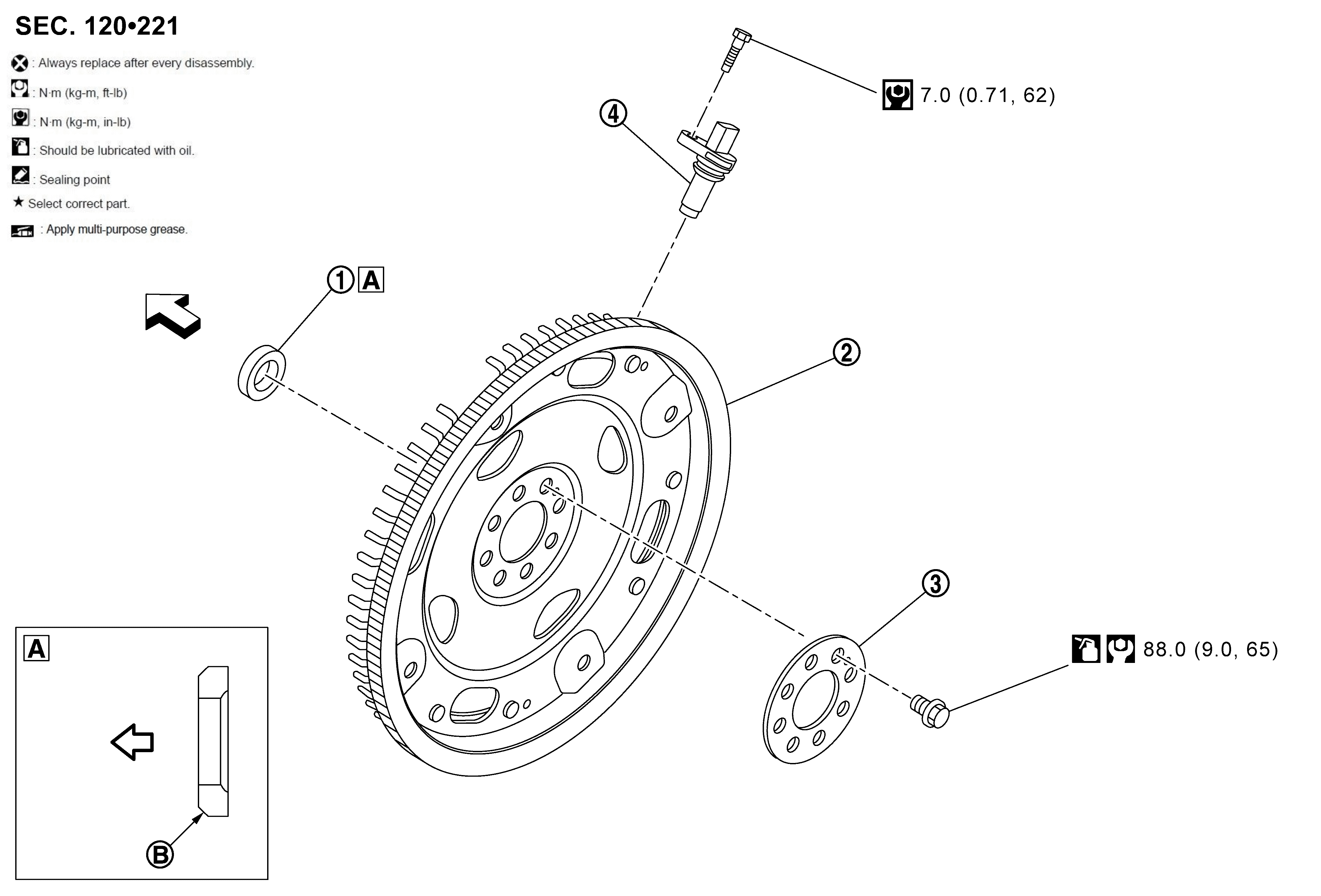

Fig 1: Drive Plate with Torque Specifications
GNSDB149184Courtesy of NISSAN NORTH AMERICA, INC.
SYMBOL Pilot converter SYMBOL Drive plate SYMBOL Reinforcement plate
SYMBOL Crankshaft position sensor
SYMBOL Side view SYMBOL Chamfered
SYMBOL : Crankshaft side
SYMBOL : Always replace after every disassembly.
SYMBOL : N.m (kg-m, in-lb)
SYMBOL : N.m (kg-m, ft-lb)
