Vehicle-To-Vehicle Distance Control Mode Function: Operation

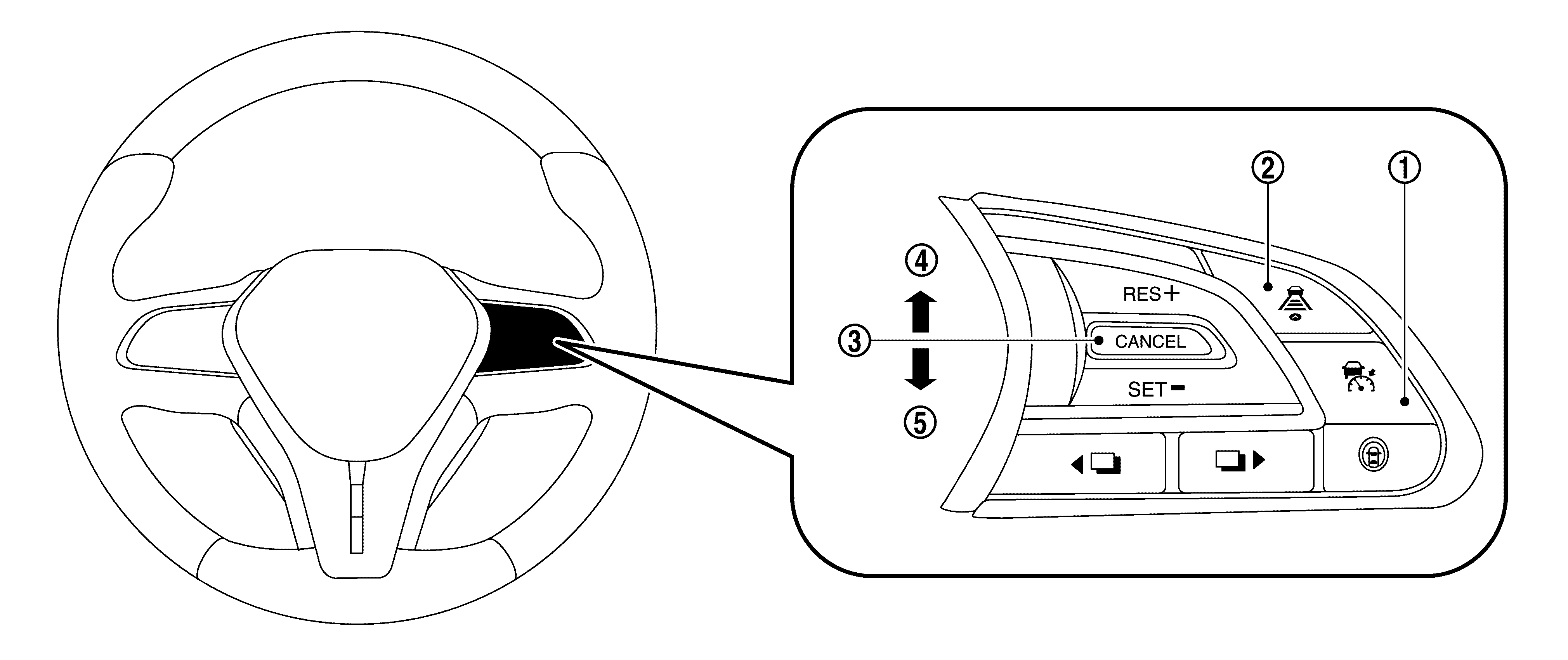

Switch Name and Function

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	MAIN switch	Master switch to activate the system (Press for less than 1.5 seconds)
	DISTANCE switch	Changes the following distance from: Long, Middle, Short
	CANCEL switch	Deactivates the system without erasing the set speed
	RESUME/ACCELERATE switch	Resumes set speed or increases speed incrementally Push and hold the switch to increase the set speed by 5 km/h (5 MPH) Push then quickly release the switch to increase the set speed by 1 km/h (1 MPH)
	SET/COAST switch	Sets desired cruise speed or reduces speed incrementally Push and hold the switch to decrease the set speed by 5 km/h (5 MPH) Push then quickly release the switch to decrease the set speed by 1 km/h (1 MPH) NOTE: The minimum set speed is 32 km/h (20 MPH)

Menu Displayed by Pressing Each Switch

ICC SYSTEM DISPLAY (ON THE INFORMATION DISPLAY)

Courtesy of NISSAN NORTH AMERICA, INC.

No.	Switch name	Description
	Set vehicle speed indicator	Indicates the set vehicle speed Indicates 32 km/h (20 MPH) when setting less than 32 km/h (20 MPH)
	ICC system warning lamp (yellow)	Indicates that a malfunction occurs in the ICC system
	MAIN switch indicator (white)	Indicates that the MAIN switch is ON (ICC system ON)
	Set switch indicator (green)	Indicates that the set vehicle to vehicle distance control mode is controlled
	Vehicle ahead detection indicator	Indicates whether it detects a vehicle ahead
	Set distance indicator	Indicates the selected distance between vehicles set with the DISTANCE switch

SYSTEM CONTROL CONDITION DISPLAY

Quickly push (less than 1.5 seconds) and release the MAIN switch ON.

The MAIN switch indicator (cruise indicator), set distance indicator, own vehicle indicator, and set vehicle speed indicator come on and ICC system is set to a standby state.

Condition			Display on ICC system display
Standby mode			Courtesy of NISSAN NORTH AMERICA, INC.
Control mode	Without a vehicle ahead	Set vehicle distance (Long)	Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	Courtesy of NISSAN NORTH AMERICA, INC.
Control mode	With a vehicle ahead	Set vehicle distance (Long)	Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Middle)	Courtesy of NISSAN NORTH AMERICA, INC.
		Set vehicle distance (Short)	Courtesy of NISSAN NORTH AMERICA, INC.
		When the vehicle speed exceeds the set speed	Courtesy of NISSAN NORTH AMERICA, INC.

APPROACH WARNING DISPLAY

If own vehicle comes closer to a vehicle ahead due to rapid deceleration of that vehicle or if another vehicle cuts in, the system warns the driver with the chime and ICC system display. Decelerate by depressing the brake pedal to maintain a safe vehicle distance if:

• The chime sounds.
• The vehicle ahead detection indicator and set distance indicator blink.

The warning chime may not sound in some cases when there is a short distance between vehicles. Some examples are:

• When the vehicles are traveling at the same speed and the distance between vehicles is not changing.
• When the vehicle ahead is traveling faster and the distance between vehicles is increasing.
• When a vehicle cuts in at near own vehicle.

The warning chime will not sound when own vehicle approaches vehicles that are parked or moving slowly.

The warning chime will not sound when the accelerator pedal is depressed, overriding the system.

The approach warning chime may sound and the system display may blink when the ICC sensor detects objects on the side of the vehicle or some reflectors on the side of the road.

This may cause the ICC system to decelerate or accelerate the vehicle.

The ICC sensor may detect these object when the vehicle is driven on winding roads, hilly roads or when entering or exiting a curve.

The ICC sensor may also detect object on narrow roads or in road construction zones.

In these cases driver will have to manually control the proper distance ahead of own vehicle.

Also, the sensor sensitivity can be affected by vehicle operation (steering maneuver or driving position in the lane) or traffic or vehicle condition (for example, if a vehicle is being driven with some damage).

Condition	Display on ICC system display
When own vehicle comes closer to the vehicle ahead and it is judged that the distance between the vehicles is not sufficient	Courtesy of NISSAN NORTH AMERICA, INC.

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition		Description	Display on ICC system display
Warning display	When the VDC is turned OFF When the VDC or ABS (including the TCS) operates When a wheel slips When the drive mode select switch is in SNOW mode	NOTE: When the conditions listed above are no longer present, turn the system OFF using the MAIN switch. Turn the ICC system back on to use the system.	(Yellow) Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
			Currently unavailable
	When the front bumper grille near the ICC sensor is dirty, making it impossible to detect a vehicle ahead.	A chime sounds and the control is automatically canceled. NOTE: Park the vehicle in a safe place, turn the engine OFF. Clean the front bumper grille near the ICC sensor and then perform the settings again.	(Yellow) Courtesy of NISSAN NORTH AMERICA, INC.
			Courtesy of NISSAN NORTH AMERICA, INC.
			Forward Driving Aids Temporarily Disabled Front Sensor Blocked
Warning display	When the ICC system is malfunctioning	A chime sounds and the control is automatically canceled. NOTE: Turn the engine OFF and restart engine. If there is no malfunction, it is possible to set the system.	(Yellow) Courtesy of NISSAN NORTH AMERICA, INC.
Automatic cancellation display	When brake pedal is depressed When CANCEL switch is pressed When a vehicle ahead is not detected below the speed of 24 km/h (15 MPH) When the system judges the vehicle is at standstill When the selector lever is not in "D" position or manual mode When the parking brake are applied	A chime sounds and the control is automatically canceled. NOTE: The system will be in a standby, after the control is automatically canceled. A chime sounds when the control is automatically canceled, except when brake pedal is depressed or when CANCEL switch is pressed.	Courtesy of NISSAN NORTH AMERICA, INC.
