Removal and Installation

REMOVAL

Remove front door finisher (LH). Refer to Removal and Installation .

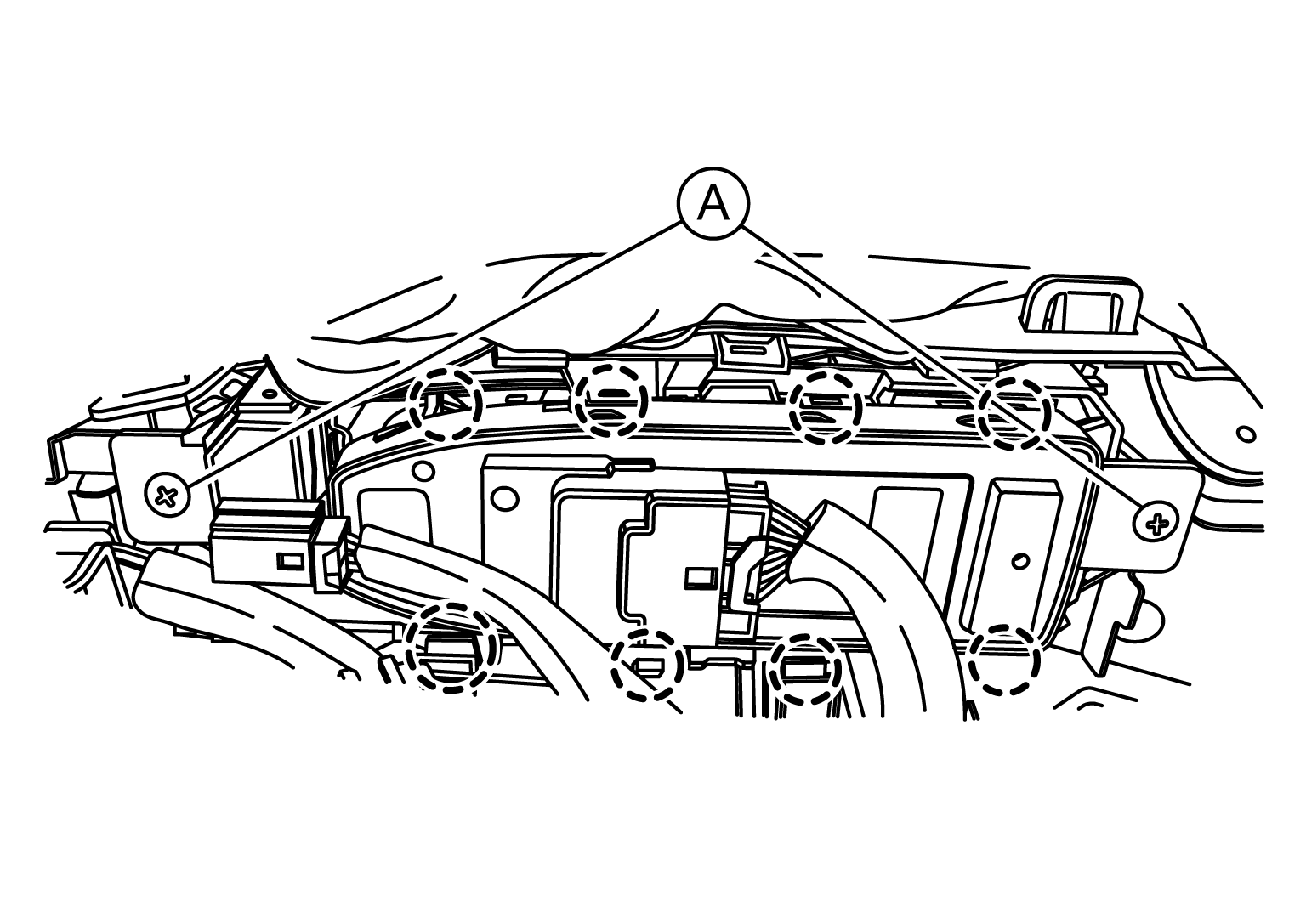

Remove screws (A) and separate main switch finisher front the front door finisher.

Courtesy of NISSAN

: Pawl

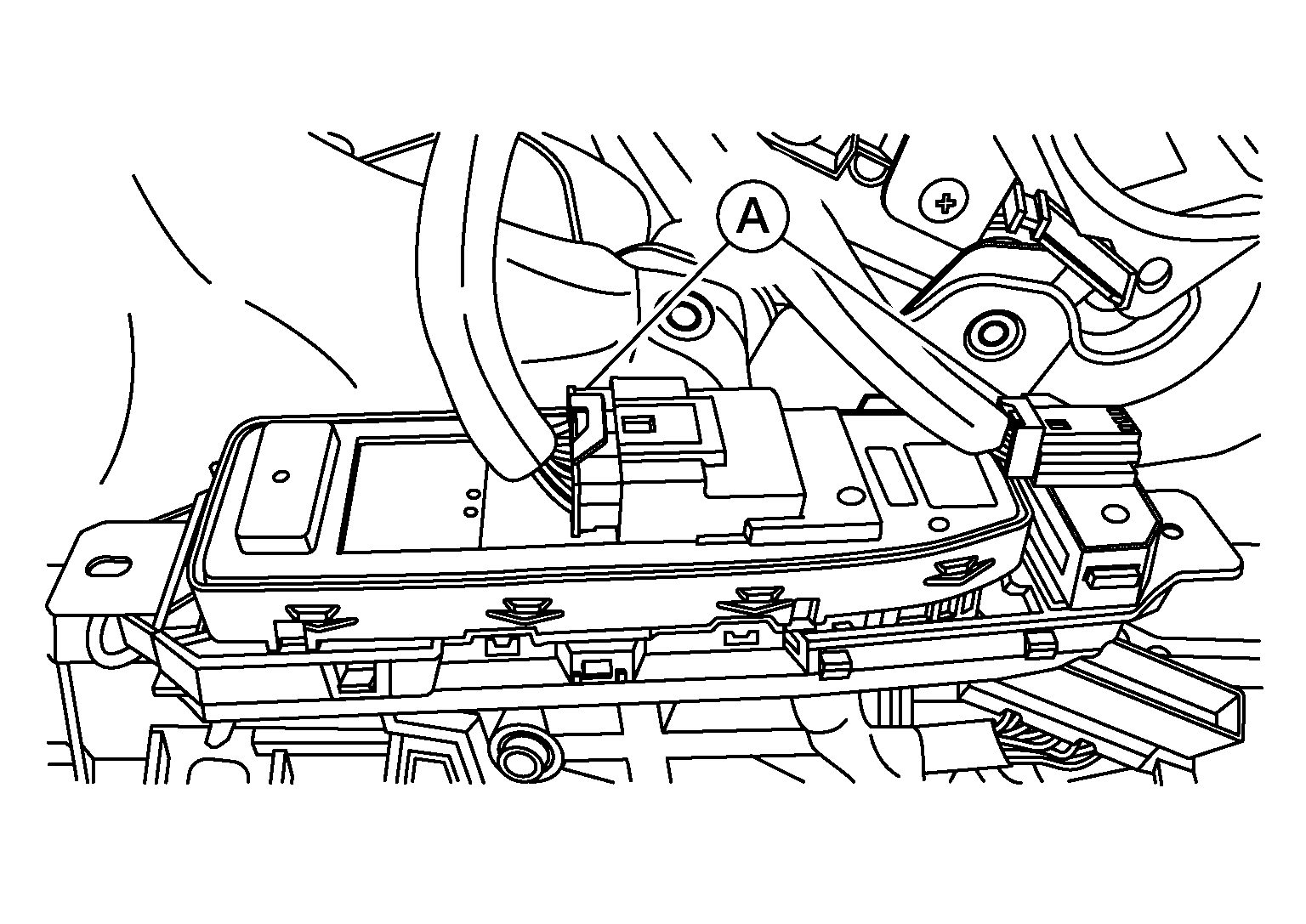

Disconnect harness connectors (A) from the main power window switch and harness connector (A) from the door mirror switch.

Courtesy of NISSAN

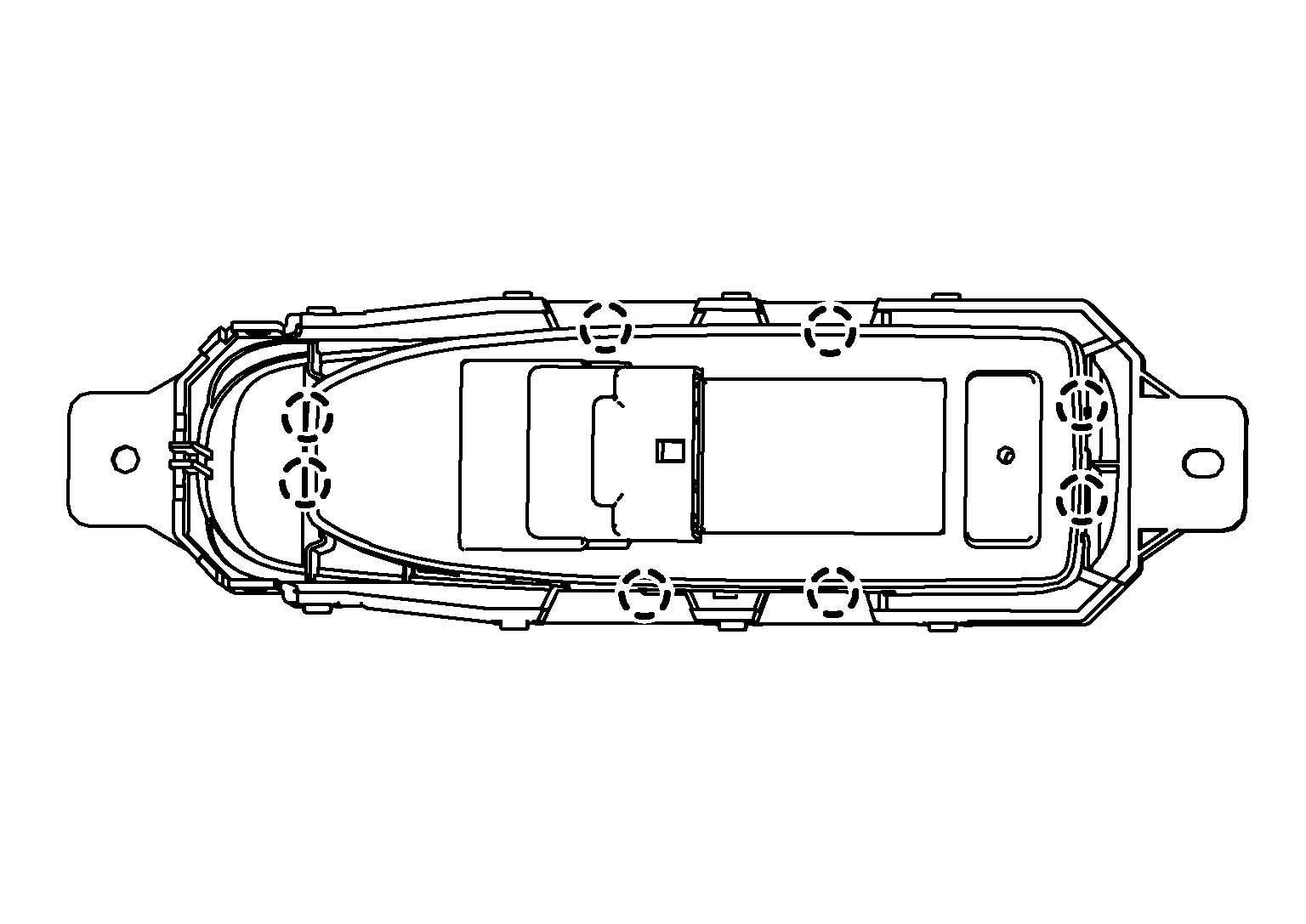

Using suitable tool release the pawls, then separate the main power window and door mirror switch from the switch finisher.

Courtesy of NISSAN

: Pawl

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

When the main power window and mirror switch is removed or replaced, CHECK ANTI-PINCH FUNCTION. Refer to Description .
