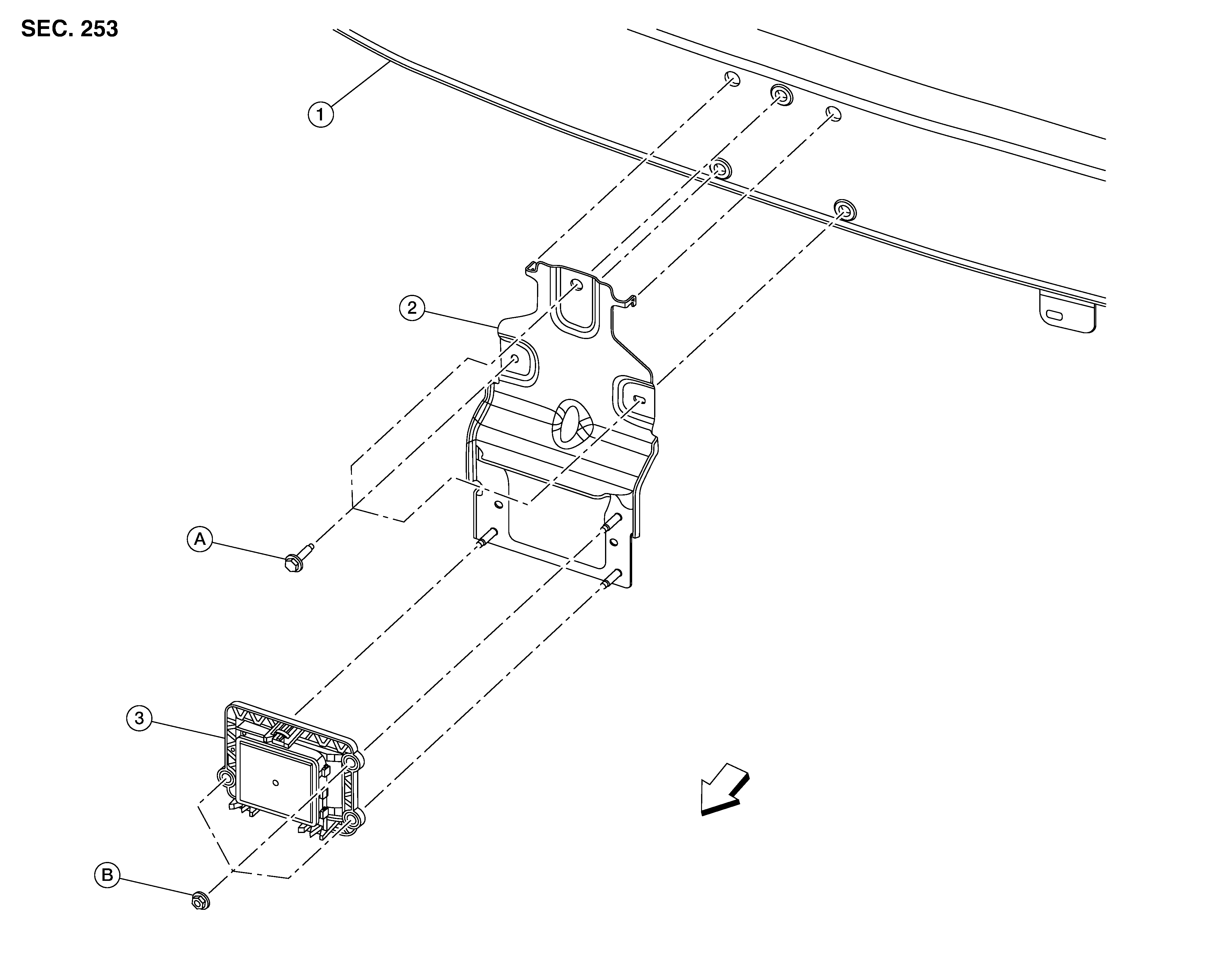

Exploded View

GNSDB45096Courtesy of NISSAN
1. Front bumper reinforcement 2. Distance sensor bracket 3. Distance sensor
A. Refer to INSTALLATION . B. Refer to INSTALLATION . SYMBOL Front
