System Display

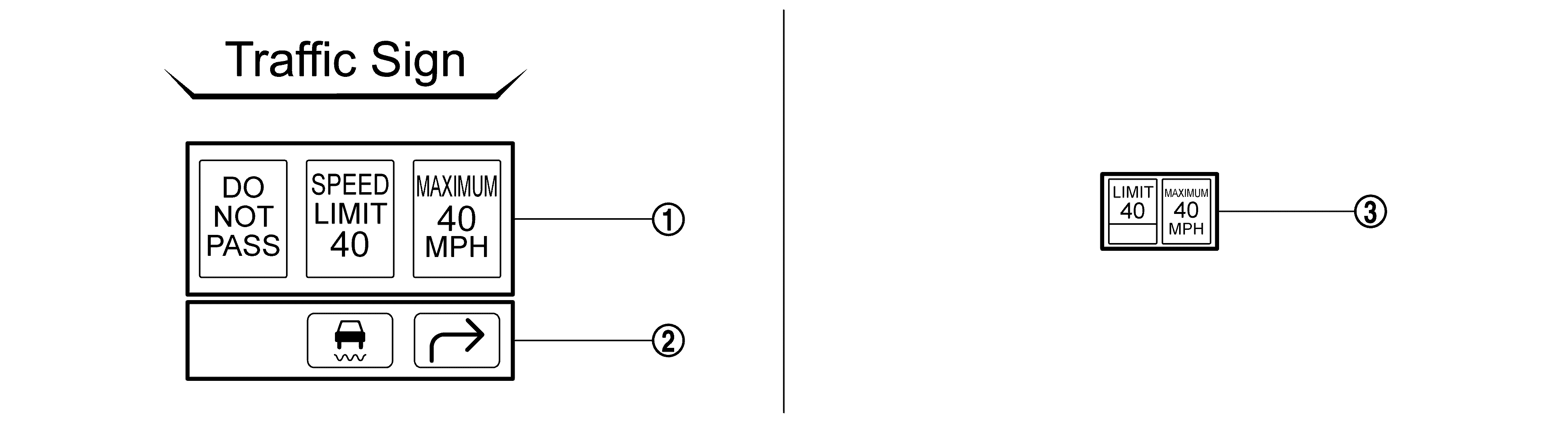

GNSDB39257Courtesy of NISSAN NORTH AMERICA, INC.

No.

Display item

Description

SYMBOL

Road sign indicator
  • Displays road signs detected by the front camera unit
  • Allows the displaying of up to 3 signs i.e. 2 speed limit signs and 1 do not pass sign

SYMBOL

Supplemental sign indicator
  • Displays supplemental signs detected by the front camera unit
  • Allows the displaying of up to 3 supplemental signs

SYMBOL

Speed limit sign indicator
  • Displays speed limit signs detected by the front camera unit
  • Allows the displaying of up to 2 signs
  • For speed limit signs with a supplemental sign, the supplemental sign is displayed together
