Exploded View

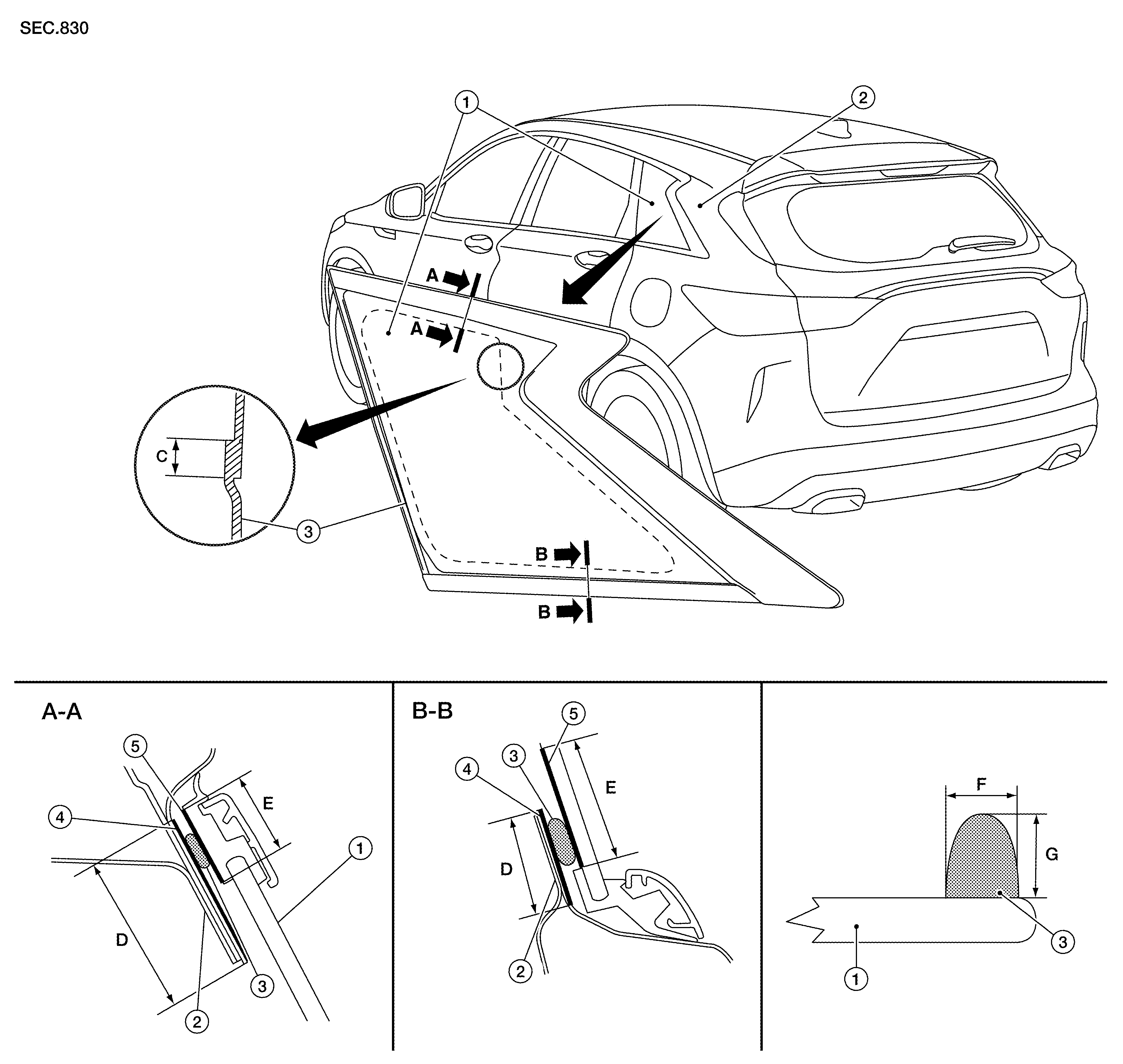

GNSDB58366Courtesy of NISSAN
1. Quarter window glass 2. Body side outer 3. Adhesive
4. Body primer 5. Glass primer C. 30 mm (1.18 in)
D. 20 mm (0.79 in) E. 15 mm (0.59 in) F. 7 + 2, - 0 mm (0.28 + 0.08, - 0 in)
G. 12 + 2, - 0 mm (0.47 + 0.08, - 0 in)
