VR30DDTT engine

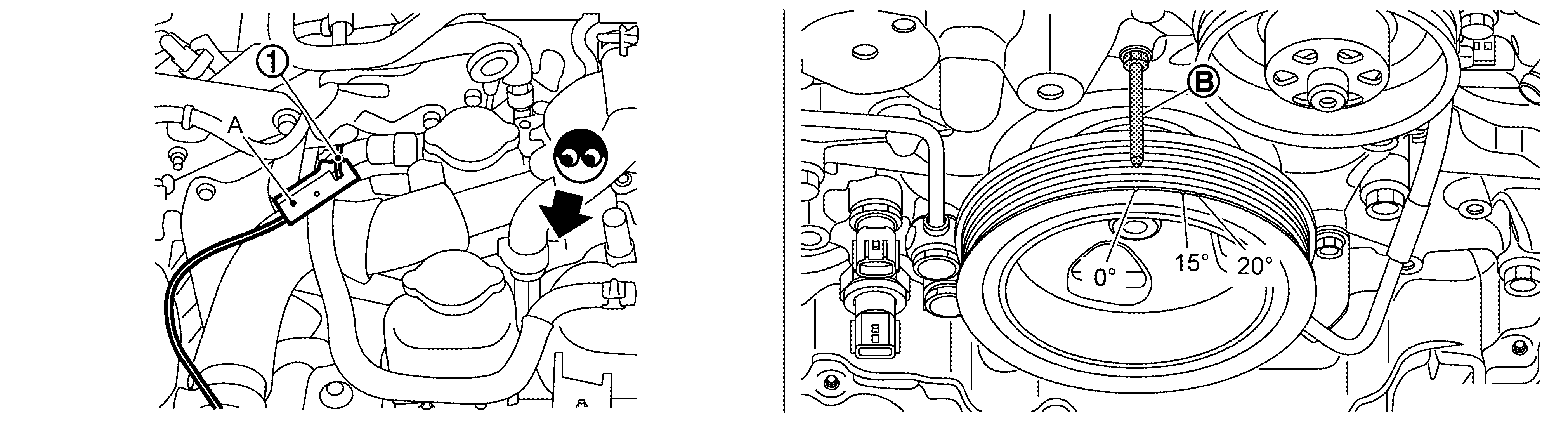

  1. Attach timing light (A) to loop wire as shown, below.
    GNSDB23879Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL .

    Loop wire

    SYMBOL .

    Timing indicator
  2. Check ignition timing.
