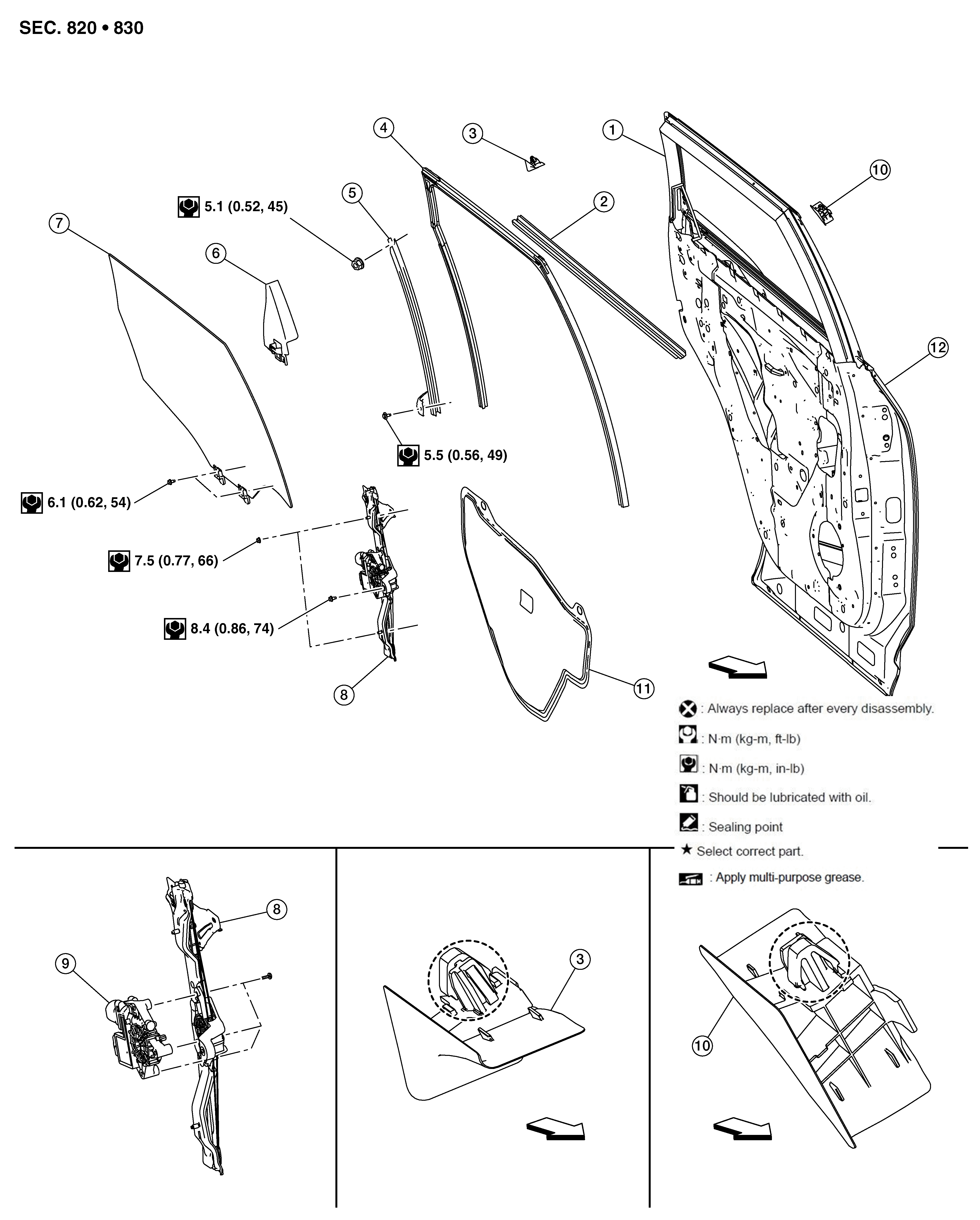

Exploded View

1.

Rear door panel

2.

Door inside seal

3.

Rear door sash cover inner

4.

Door glass run rubber

5.

Door glass rear run

6.

Rear door corner cover inner

7.

Rear door glass

8.

Rear door regulator

9.

Rear power window motor

10.

Rear door sash cover inner

11.

Vapor barrier

12.

Rear door outside main molding

:

Front

Pawl
