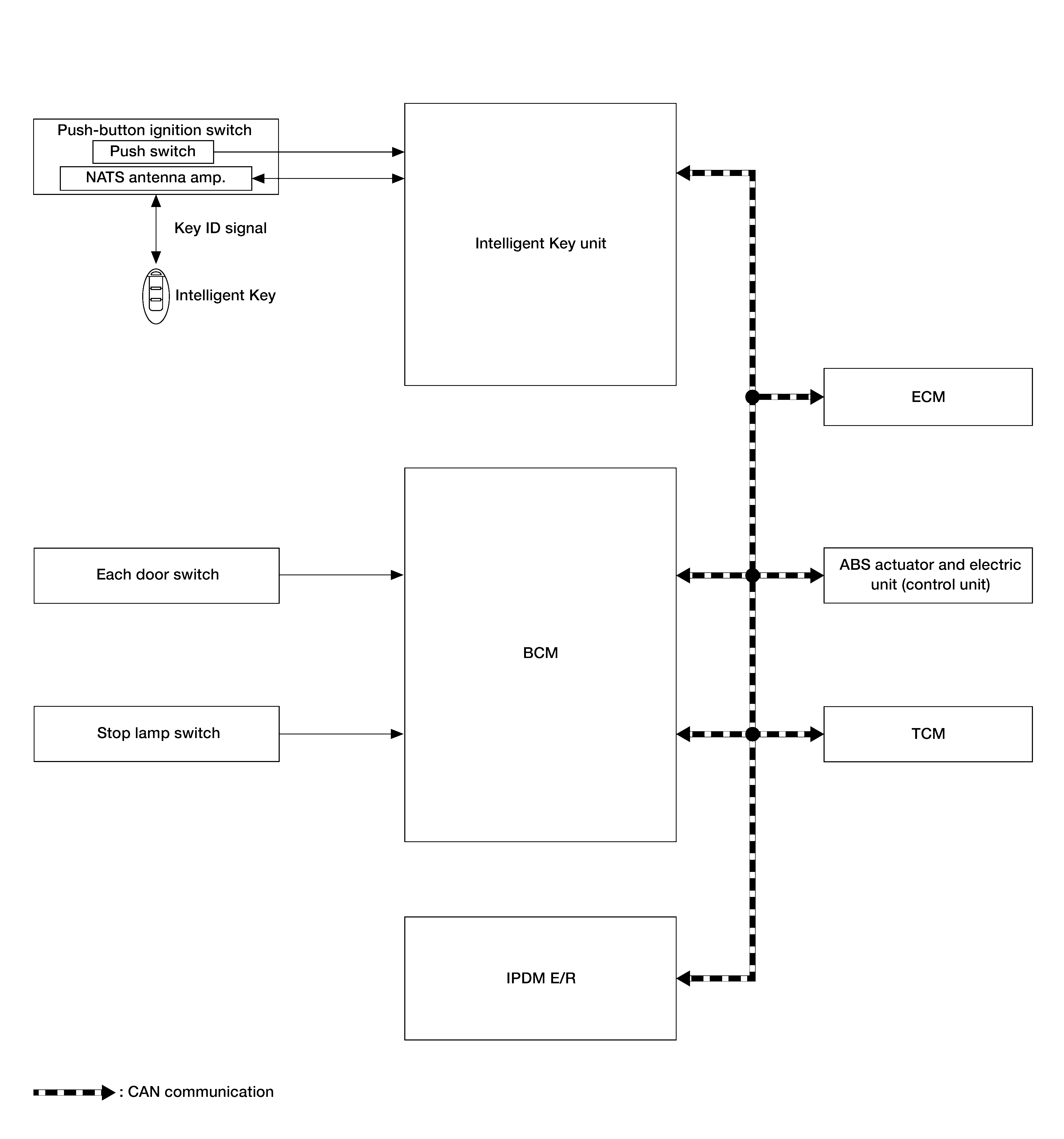

System Diagram
|
Component |
Function |
|
|
Door switch |
Door switch detects door switch condition and then transmits door switch signal to BCM. |
|
|
Stop lamp switch |
Stop lamp switch detects that brake pedal is depressed, and then transmits stop lamp switch signal to BCM. |
|
|
ABS actuator and electric unit (control unit) |
ABS actuator and electric unit (control unit) transmits the vehicle speed signal to BCM via CAN communication. |
|
|
TCM |
TCM receives the P/N position signal from transmission range switch, and then transmits the shift position signal to BCM via CAN communication. |
|
|
ECM |
|
|
|
IPDM E/R |
Starter cut relay is controlled by BCM, and starter relay is controlled by IPDM E/R while communicating with BCM. |
|
|
BCM |
When BCM receives a starter cut relay request signal from ECM, the starter cut relay is turned ON. |
|
|
Ignition switch |
Push switch |
|
|
NATS antenna amp. |
Refer to NATS Antenna Amp. |
|
|
Intelligent Key |
The Intelligent Key system is a system that makes it possible to lock and unlock the door locks (door lock/ unlock function) by carrying the Intelligent Key, which operates based on the results of electronic ID verification using two-way communication between the Intelligent Key and the vehicle (Intelligent Key unit). |
|
|
Intelligent Key unit |
|
|
