Removal and Installation: Removal

  1. Remove shift selector finisher. Refer to Exploded View .

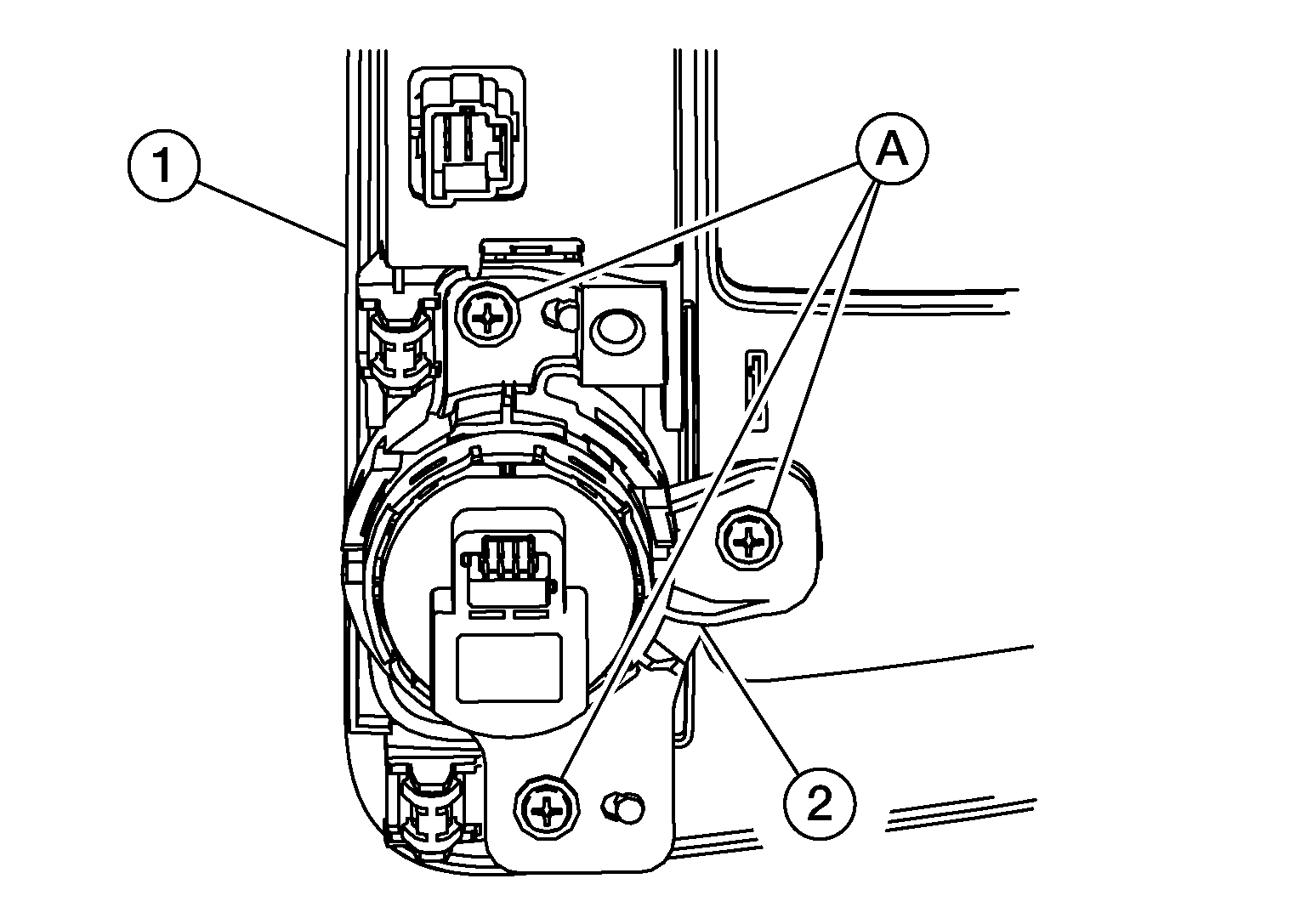

  2. Remove screws (A), then remove push-button ignition switch bracket (2) from the shift selector finisher (1).
    GNSDB19050Courtesy of NISSAN NORTH AMERICA, INC.

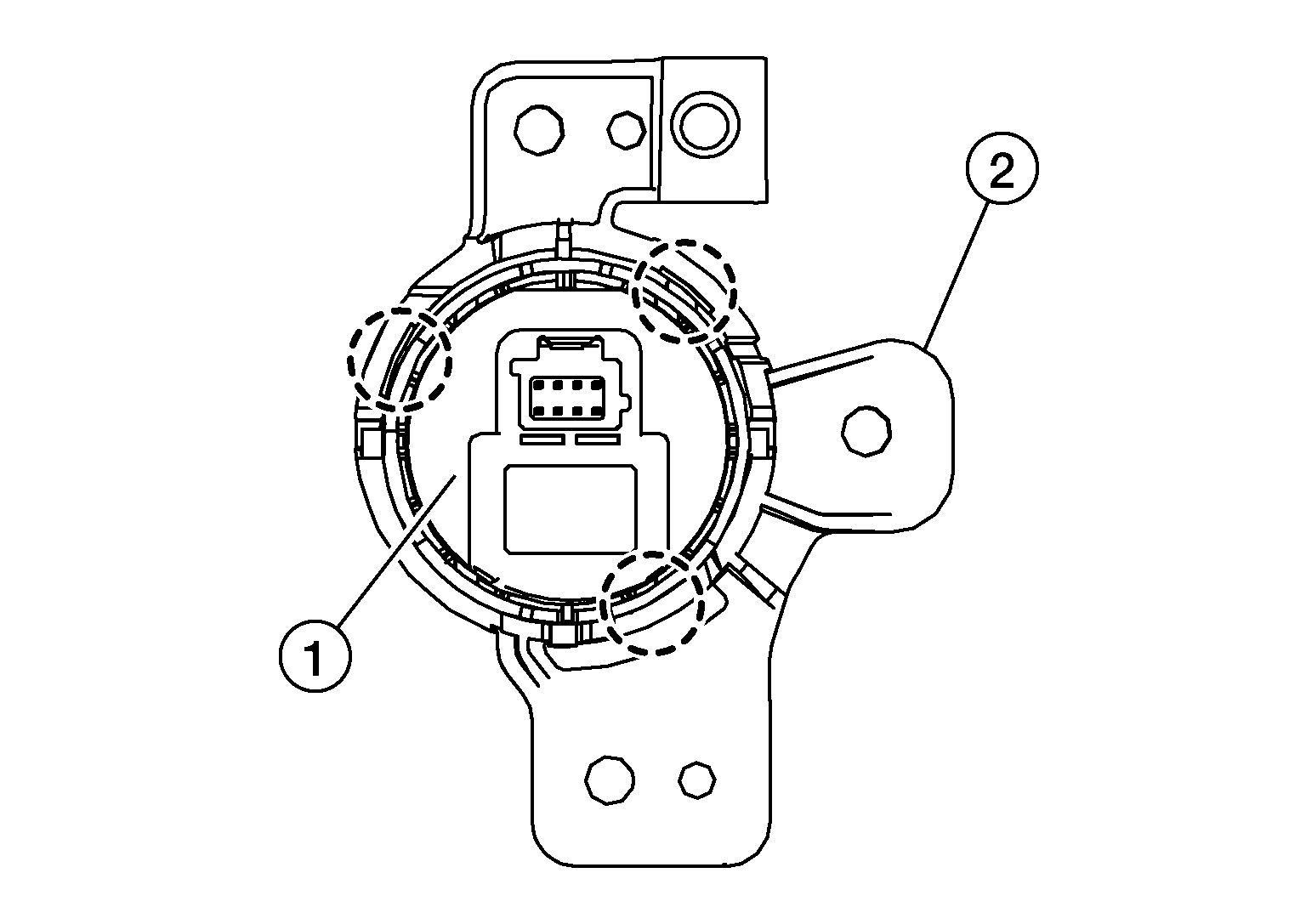

  3. Using a suitable tool, release pawls and remove the push-button ignition switch (1) from push-button ignition switch bracket (2).
    GNSDB18760Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    : Pawl
