Removal and Installation: Removal

  1. Remove rear door finisher. Refer to Removal and Installation .

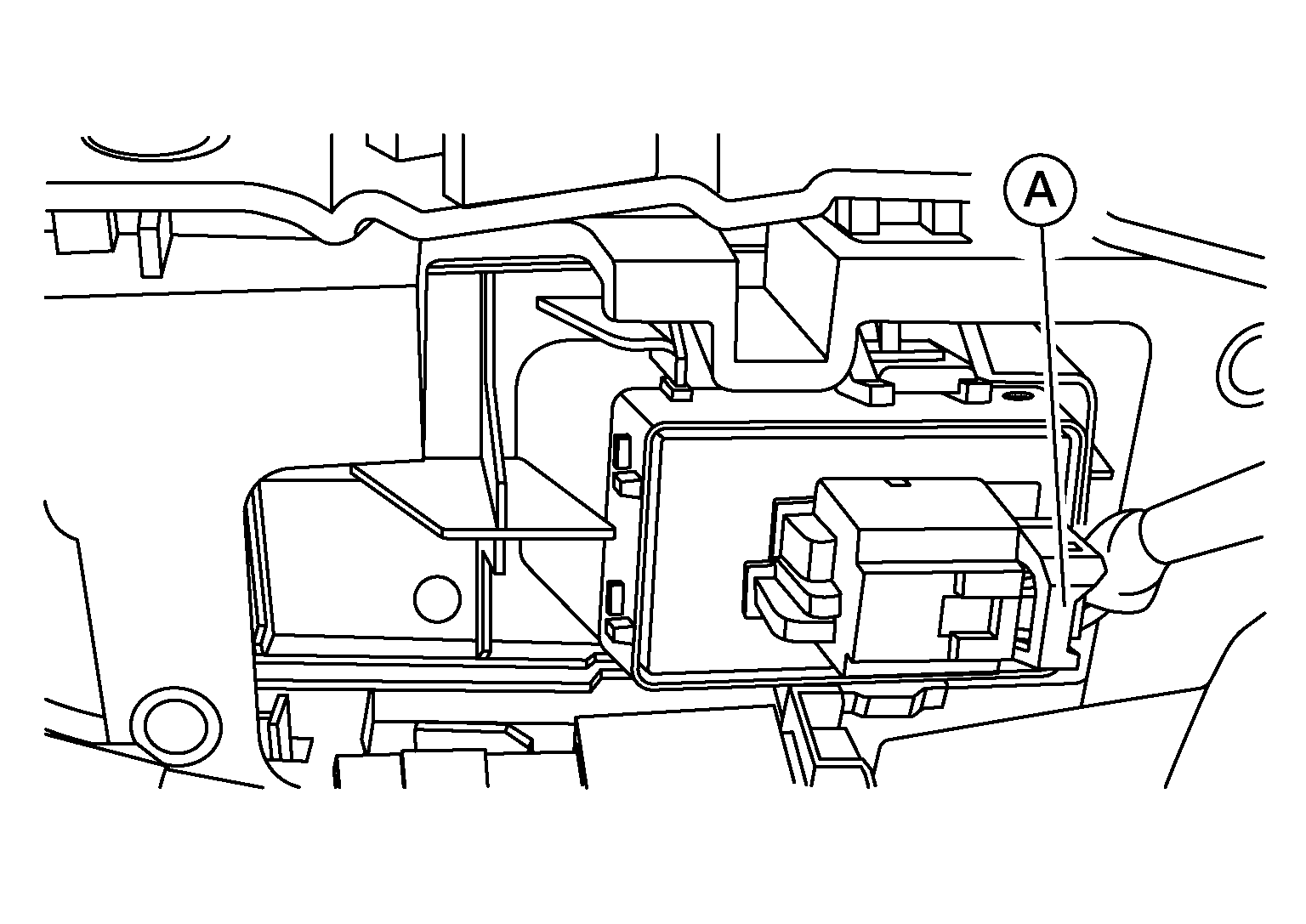

  2. Disconnect the harness connector (A) from the rear power window switch.
    GNSDB19223Courtesy of NISSAN NORTH AMERICA, INC.
  3. Release pawls and separate from rear door finisher (A).
    GNSDB115402Courtesy of NISSAN NORTH AMERICA, INC.
