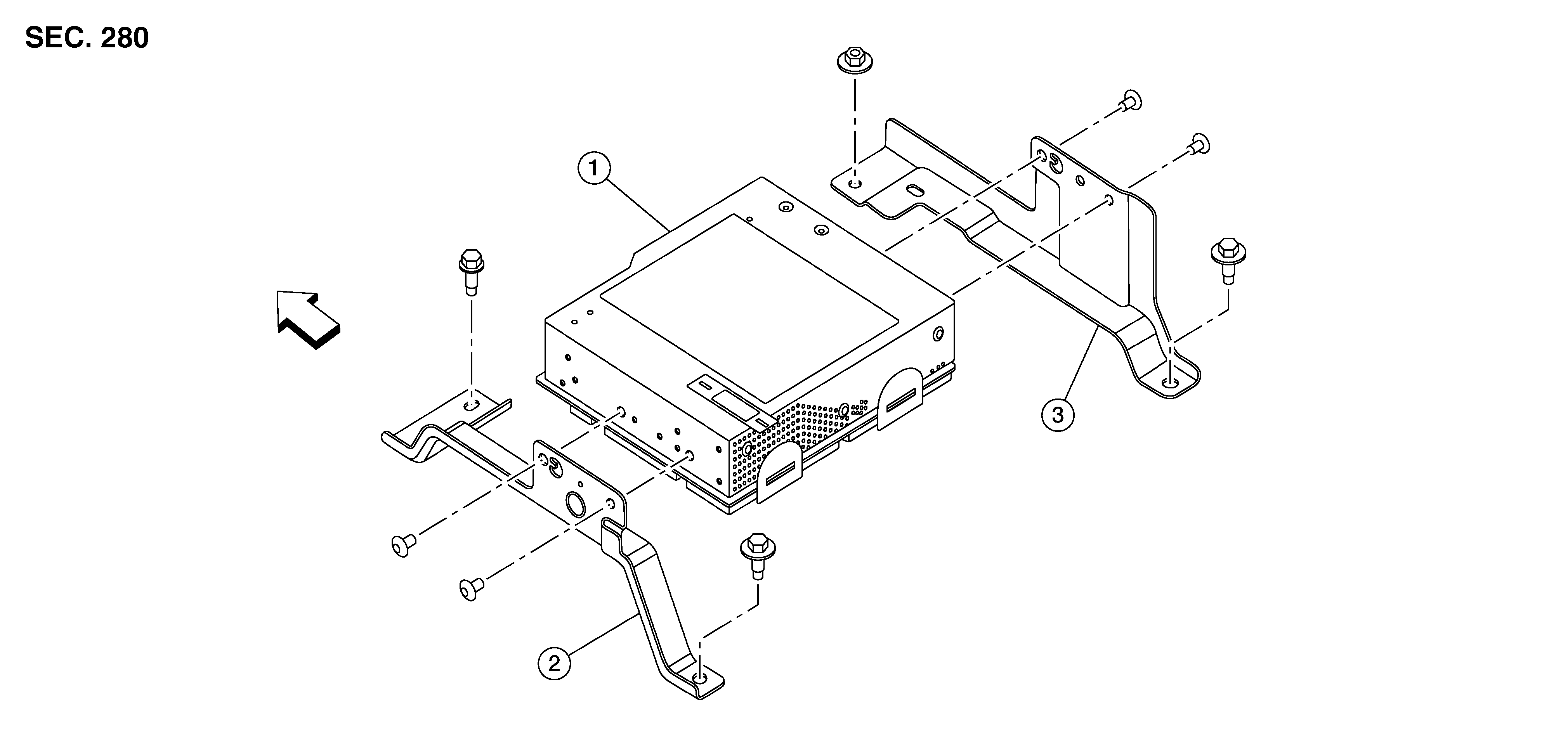

Exploded View

GNSDB19183

Courtesy of NISSAN NORTH AMERICA, INC.

1.	AV control unit	2.	AV control unit bracket (LH)	3.	AV control unit bracket (RH)
	Front
