Circuit Diagram

WARNING: This page is about a different car, the 2022 Nissan Rogue Sport. However, it is still accessible from the selected car via links, so may be relevant.

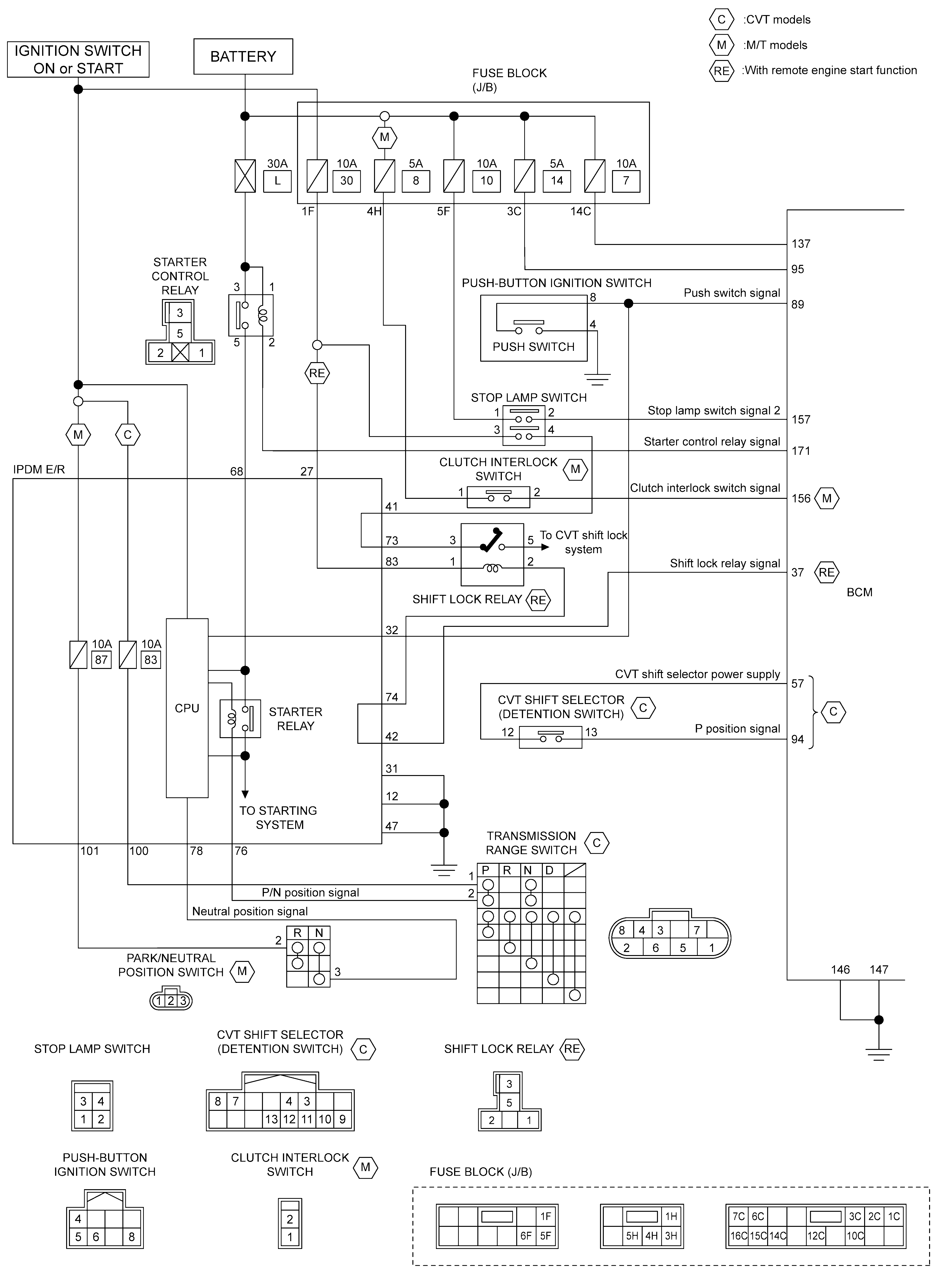

GNSILL0229269Courtesy of NISSAN NORTH AMERICA, INC.

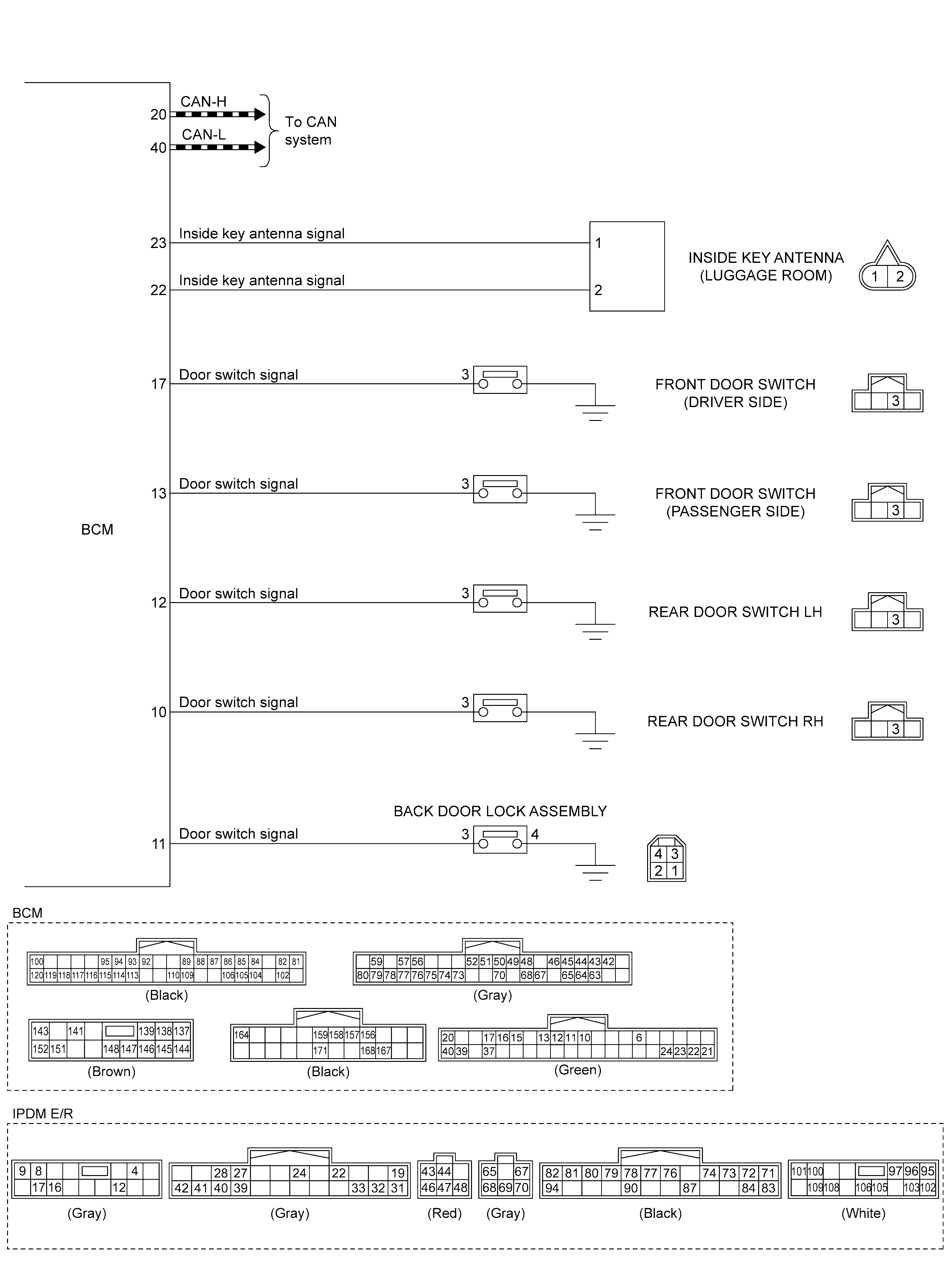

GNSILL0229270Courtesy of NISSAN NORTH AMERICA, INC.
