Transfer Hi-Lo Position Sensor Connector End View (F42)

Connector Types:  PEZ03FB

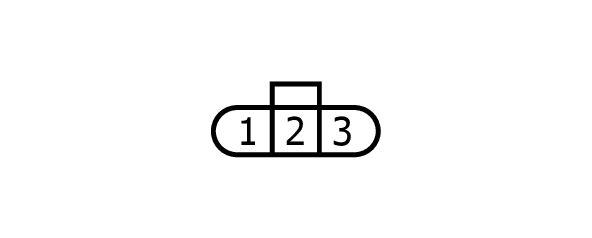

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

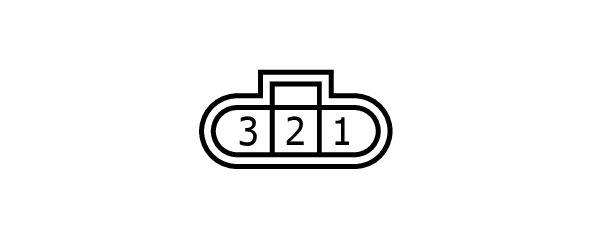

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR/W	HI-LO POSITION SEN 1
2	P/L	HI-LO POSITION SEN 3
3	LG/R	HI-LO POSITION SEN 2
