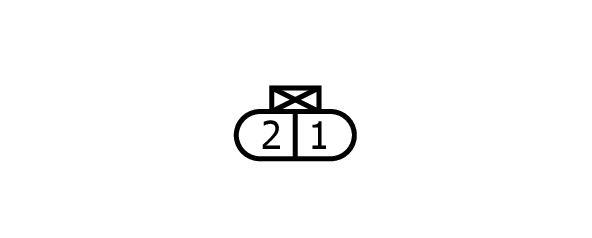

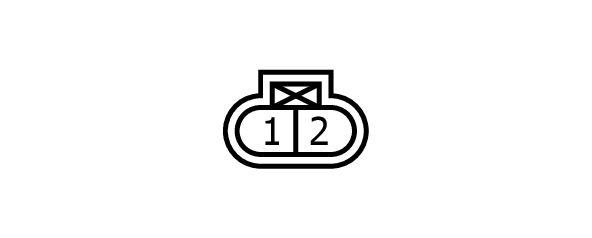

Engine Oil Temperature Sensor Connector End View (F38)
Connector Types:
E02FGY-RS
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
L/Y |
ENGINE OIL TEMPERATURE SENSOR |
| 2 |
R |
SENSOR GROUND |
