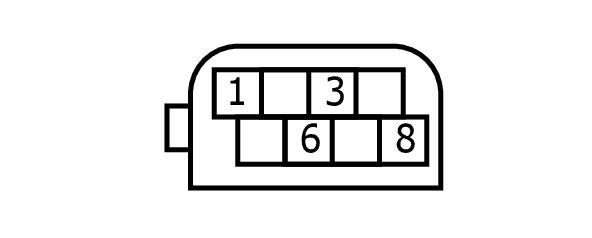

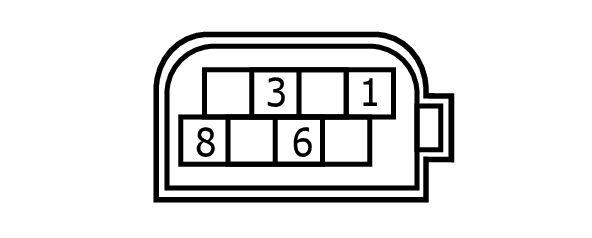

Distance Sensor Connector End View (E88)
Connector Types:
AAZ08FB
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
W/G |
IGNITION POWER SUPPLY |
| 3 |
L |
ITS CAN COMMUNICATION-H |
| 6 |
Y |
ITS CAN COMMUNICATION-L |
| 8 |
B |
GROUND |
