Av Control Unit Connector End View (M502)

Connector Types:  HSD_2

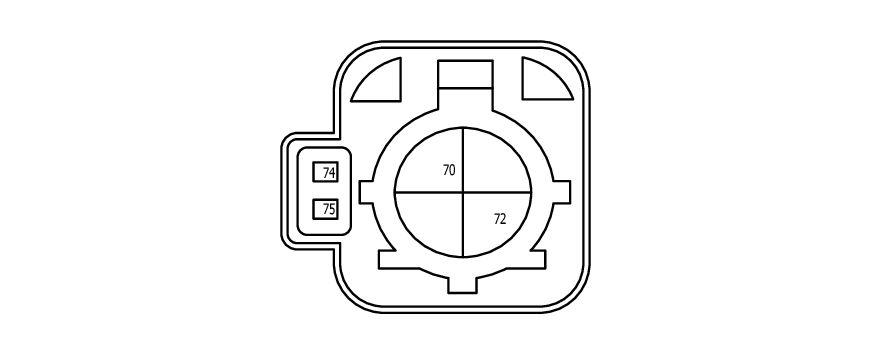

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

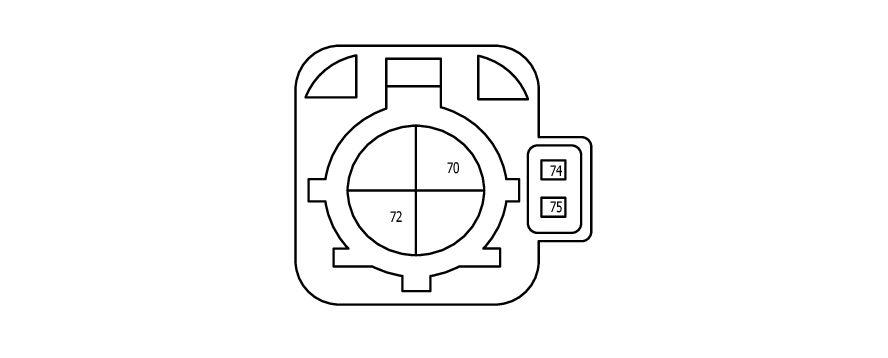

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
70	-	LVDS (-)
72	-	LVDS (+)
74	-	GROUND
75	-	12V POWER SUPPLY
