Component Function Check

  1. CHECK LOW PRESSURE FUEL PUMP FUNCTION
    1. Turn ignition switch ON.

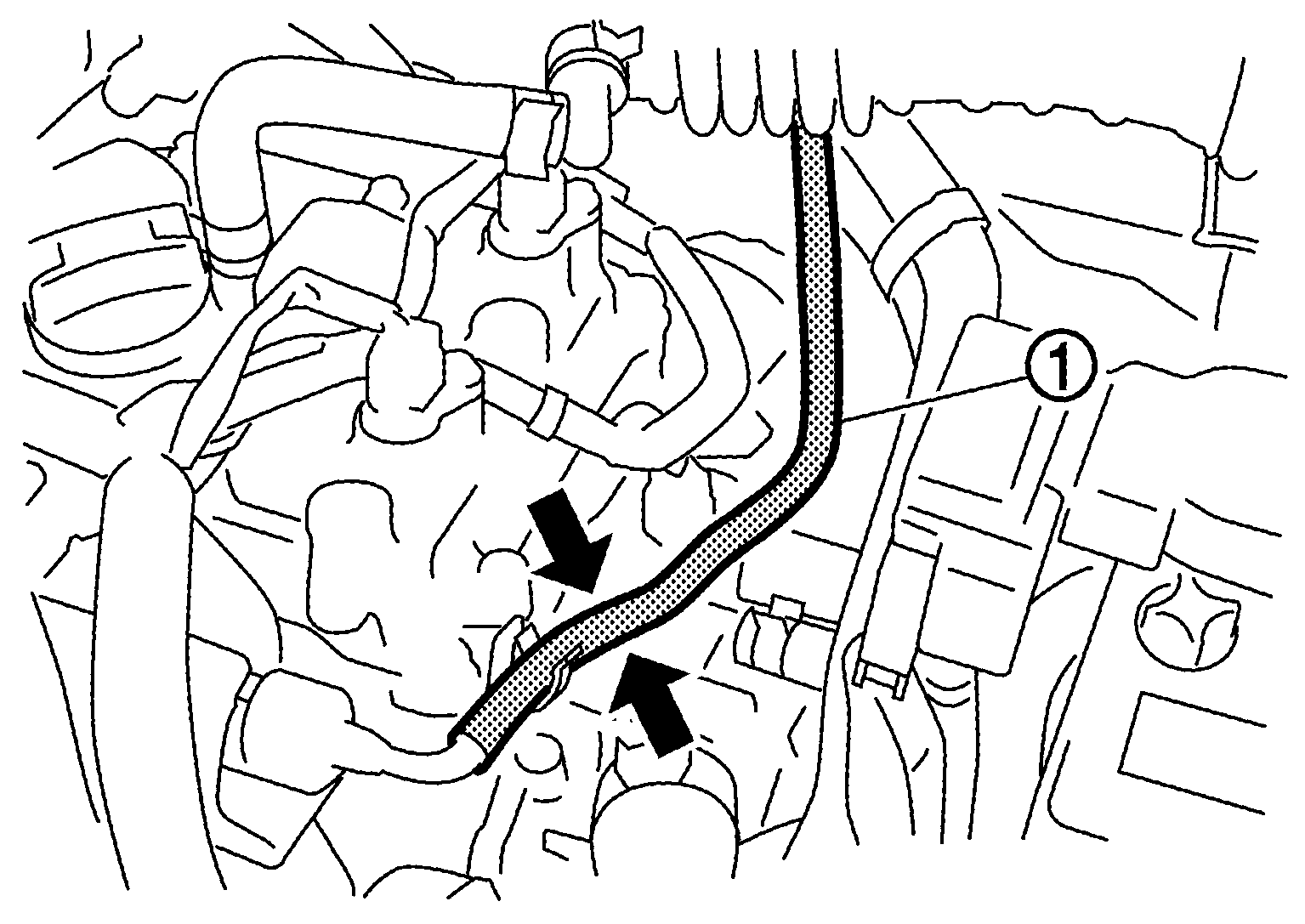

    2. Pinch fuel feed hose SYMBOL with two fingers.
      GNSJSBIA0601Z-601Courtesy of NISSAN NORTH AMERICA, INC.

      Fuel pressure pulsation should be felt on the fuel feed hose for 1 second after ignition switch is turned ON.

    Is the inspection result normal?

    YES

    INSPECTION END

    NO

    Proceed to Diagnosis Procedure .
