System Display And Warning

SYSTEM DISPLAY

Courtesy of NISSAN NORTH AMERICA, INC.

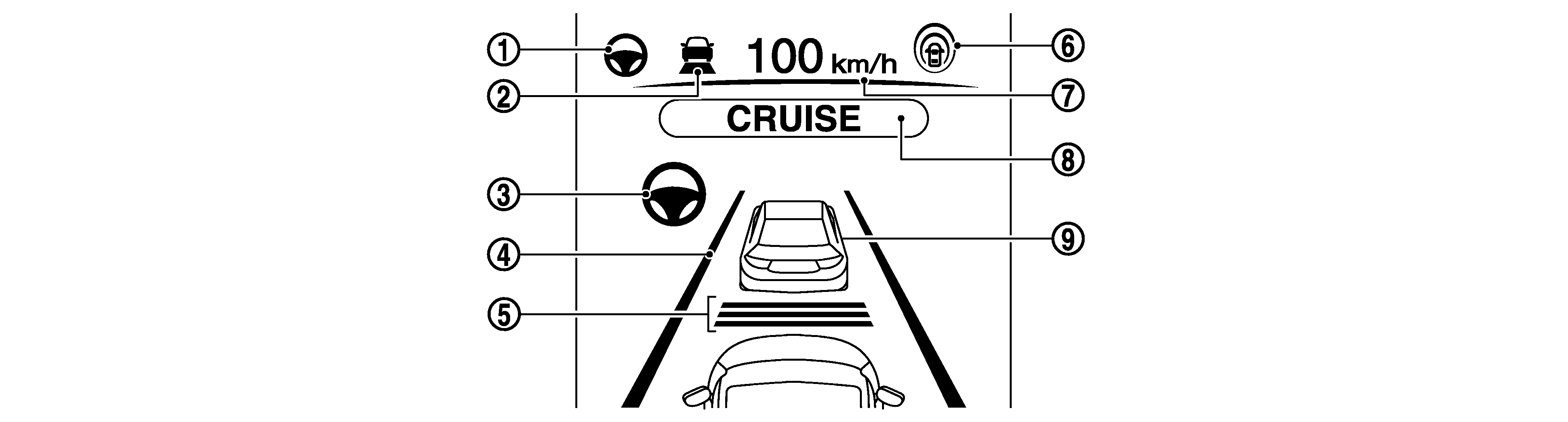

No.	Function	Description
	Steering assist indicator/warning	The steering assist status is indicated by different colors and shapes.
	Speed control indicator/warning	The vehicle speed control status is indicated by different colors and shapes.
	Steering assist indicator	The steering assist status is indicated by different colors and shapes.
	Lane marker indicator	Notifies the driver of the lane detection status.
	Set distance indicator	Displays the set following distance status in 3 steps: "Long", "Middle", and "Short".
	ProPILOT indicator	The ProPILOT status is indicated by different colors.
	Set vehicle speed indicator	Indicates the set vehicle speed Indicates 30 km/h (20 MPH) when setting less than 30 km/h (20 MPH)
	ProPILOT indicator	This is displayed when ProPILOT activates.
	Vehicle ahead detection indicator	Indicates whether it detects a vehicle ahead

SYSTEM CONTROL CONDITION DISPLAY

When ProPILOT is OFF, pressing the ProPILOT switch for less than 1.5 seconds illuminates the ProPILOT indicator, displays the set vehicle speed, displays the set following distance, illuminates the steering assist indicator/warning, illuminates the steering indicator, and engages set wait condition.

Condition	Display on combination meter		Buzzer
	Middle part	Upper part
Steering assist control wait condition	Gray Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray ProPILOT indicator: Blue Courtesy of NISSAN NORTH AMERICA, INC.	When changing from steering assist control status to control wait status: 2 low beeps
Steering assist control status	Green Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Green ProPILOT indicator: Blue Courtesy of NISSAN NORTH AMERICA, INC.	When steering assist control status is engaged: 1 low beep

WARNING LAMP AND AUTOMATIC CANCELLATION DISPLAY

Condition	Description	Display on combination meter		Buzzer
		Middle part	Upper part
When the driver releases the steering wheel	Steering assist continues. NOTE: When the steering wheel is operated, the warning disappears.	Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray ProPILOT indicator: Blue Courtesy of NISSAN NORTH AMERICA, INC.	--
When driver operation of the steering wheel is not detected within 5 seconds after the steering wheel release warning is displayed	Steering assist control is temporarily switched to the wait status. NOTE: When the steering wheel is operated, the warning disappears, and when the activation conditions are again satisfied, steering assist control is reactivated.	Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Red (blink) -> Gray ProPILOT indicator: Blue Courtesy of NISSAN NORTH AMERICA, INC.	Beep
When the VDC is turned OFF When the VDC (including the TCS) operates When a wheel slips	ProPILOT is canceled. NOTE: After the conditions are improved, press the ProPILOT switch to reactivate ProPILOT.	White Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray Speed control indicator/warning: Gray Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		Not available
When camera visibility cannot be ensured due to rain, snow, fog, ice or dirt on the front windshield, or other reasons When strong light enters from the front When the front wipers are operated at a high speed (HI) (for approximately 10 seconds or longer)	ProPILOT is canceled. NOTE: After the conditions are improved, press the ProPILOT switch to reactivate ProPILOT.	White Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray Speed control indicator/warning: Gray Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		Steering Assist Not Available
When the parking brake is actuated	ProPILOT is canceled. NOTE: After releasing the parking brake, press the ProPILOT switch to reactivate ProPILOT.	White Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray Speed control indicator/warning: Gray Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		Not Available Parking Brake On
When a seatbelt is unfastened	ProPILOT is canceled. NOTE: After fastened the seatbelt, press the ProPILOT switch to reactivate ProPILOT.	White Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray Speed control indicator/warning: Gray Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		Not Available Seat Belt Not Fastened
Front camera unit high temperature	ProPILOT is canceled. NOTE: After the conditions are improved, press the ProPILOT switch to reactivate ProPILOT.	White Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Gray Speed control indicator/warning: Gray Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		Not available High cabin temperature
When the system is malfunctioning	ProPILOT is canceled.	Yellow Courtesy of NISSAN NORTH AMERICA, INC.	Steering assist indicator/warning: Yellow Speed control indicator/warning: Yellow Set vehicle speed indicator: Gray ProPILOT indicator: White Courtesy of NISSAN NORTH AMERICA, INC.	Continuous beeps
		System fault

NOTE: When ProPILOT is automatically canceled due to any cause, the cause can be displayed on "WORK SUPPORT" of CONSULT (ICC/ADAS 2).
