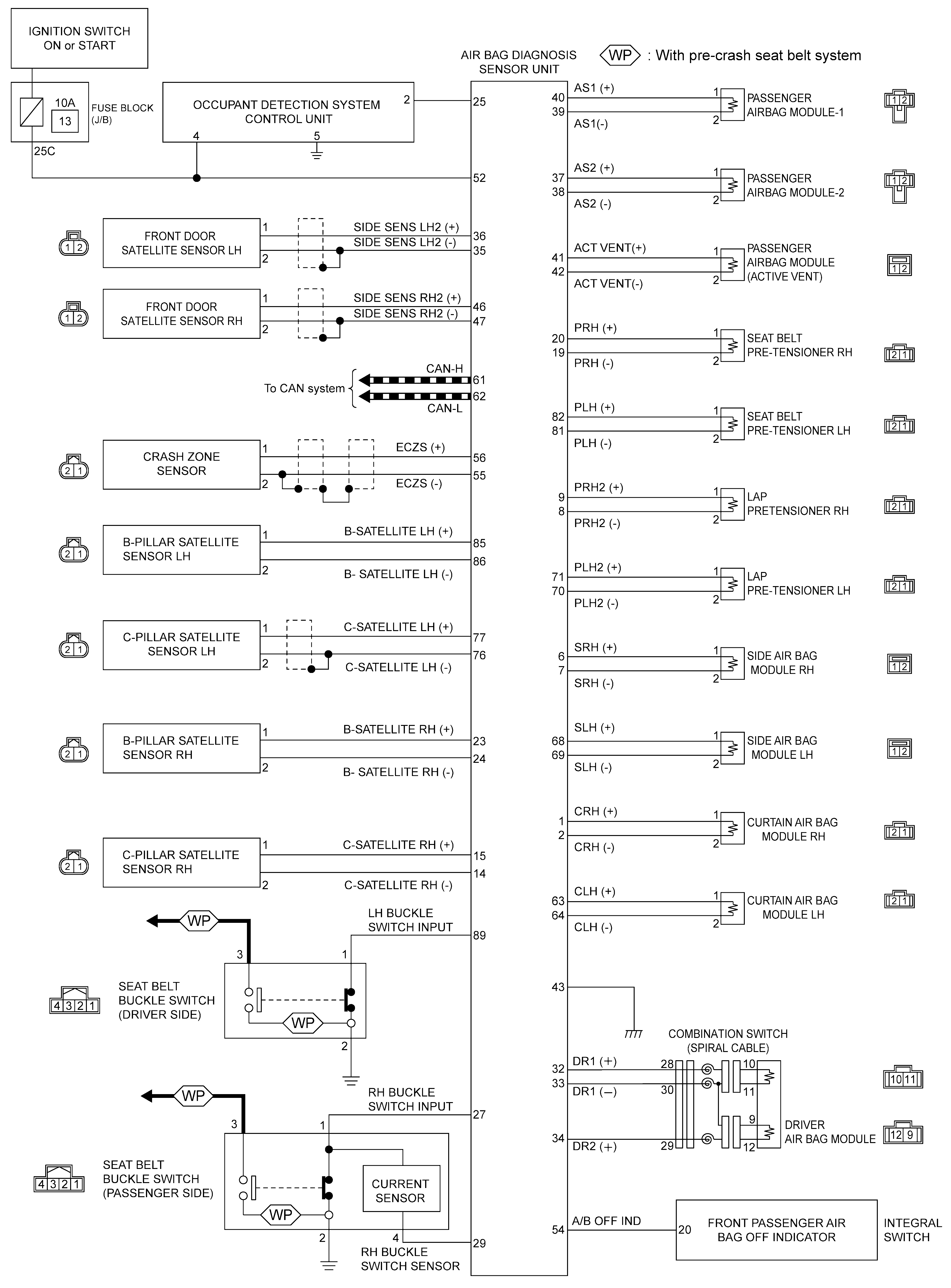

Home >> Infiniti >> 2021 >> Q60 Pure, AWD >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Airbag Control System (Diagnostics) >> Description >> System >> SRS Air Bag System >> Circuit Diagram
