Sliding Limit Switch Connector End View (B623)

Connector Types:  TK02FBR

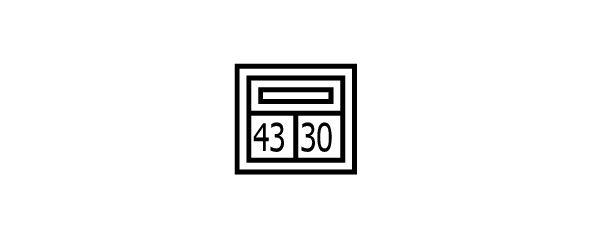

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

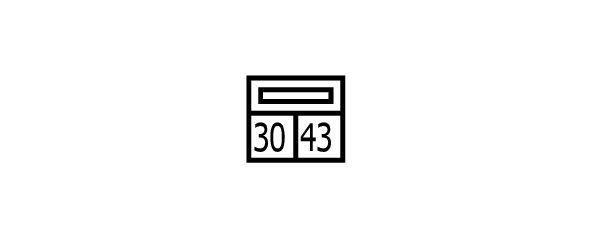

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
30	P	-
43	B	SLIDING LIMIT SWITCH GROUND
