IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E126)

Connector Types:  TH16FW-NH

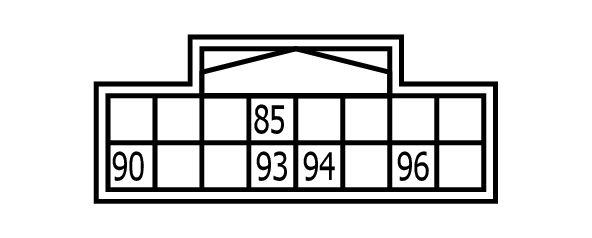

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
85	L	-
90	BR	-
93	V	-
94	Y	-
96	P	-
