IPDM E/R (Intelligent Power Distribution Module Engine Room) Connector End View (E119)

Connector Types:  M04FW-LC

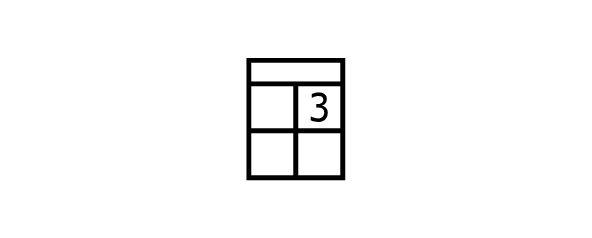

Fig 1: Terminal-side
GNSW70060Courtesy of NISSAN NORTH AMERICA

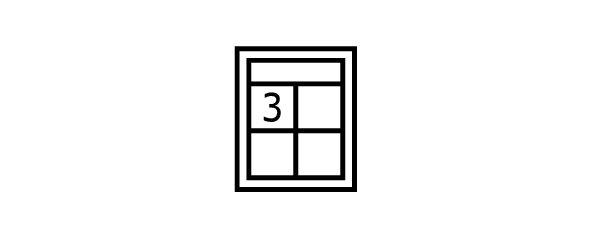

Fig 2: Harness-side
GNSW69955Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
3 GR -
