Engine Oil Temperature Sensor Connector End View (F87)

Connector Types:  E02FGY-RS

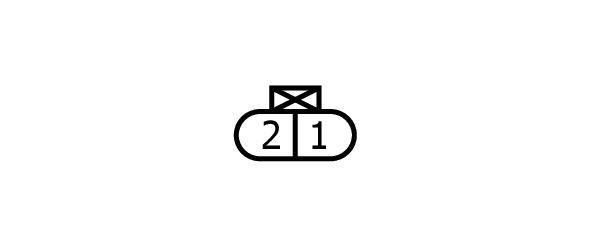

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

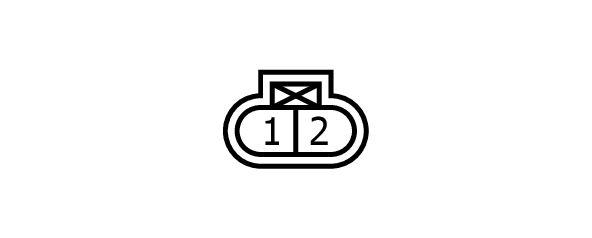

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	BR	TO
2	B	GND-TO
