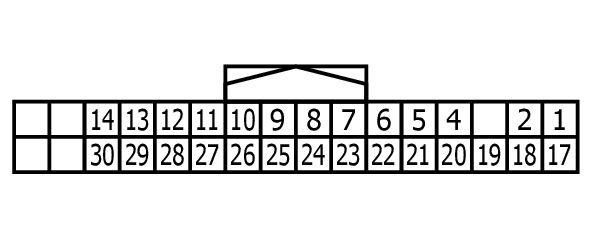

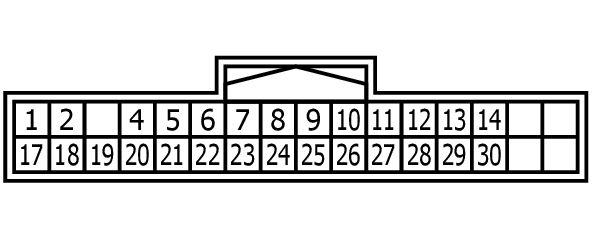

Driver Seat Control Unit Connector End View (B601)
Connector Types: TH32FW-NH
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | L | CAN-H |
| 2 | BR | UART (TX/RX) |
| 4 | P | RECLINING SEN |
| 5 | V | TELESCOPIC SEN |
| 6 | GY | MEMORY SW 2 |
| 7 | G | MEMORY IND 2 |
| 8 | V | SLIDING SW BACKWARD |
| 9 | W | RECLINING SW BACKWARD |
| 10 | O | LIFTING SW (FR) DOWN |
| 11 | G | LIFTING SW (RR) DOWN |
| 12 | SB | SENSOR POWER SUPPLY |
| 13 | LG | SEAT BELT SW |
| 14 | V | POWER WALK-IN SW |
| 17 | P | CAN-L |
| 18 | LG | SLIDING SEN |
| 19 | W | LIFTING SEN (FR) |
| 20 | GY | LIFTING SEN (RR) |
| 21 | SB | TILT SEN |
| 22 | O | MEMORY SW 1 |
| 23 | W | MEMORY IND 1 |
| 24 | P | SLIDING SW FORWARD |
| 25 | Y | RECLINING SW FORWARD |
| 26 | GY | LIFTING SW (FR) UP |
| 27 | L | LIFTING SW (RR) UP |
| 28 | Y | SET SW |
| 29 | O | FORWARD SW |
| 30 | P | SLIDING LIMIT SW |
