Diode Connector End View (M8)

Connector Types:  24335_4GA0A

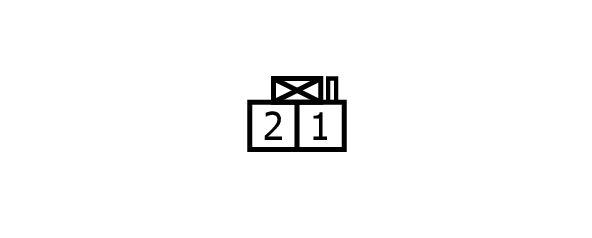

Fig 1: Terminal-side
GNSW70000Courtesy of NISSAN NORTH AMERICA

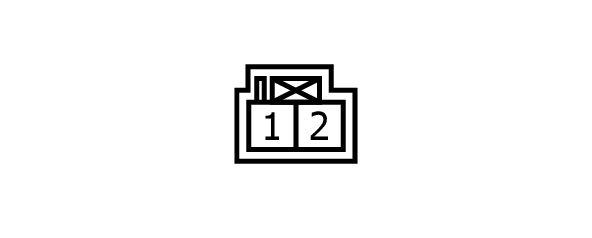

Fig 2: Harness-side
GNSW69608Courtesy of NISSAN NORTH AMERICA
Terminal No. Color of Wire Signal Name (Specification)
1 L -
2 LG -
