SIDE WINDOW GLASS : Exploded View

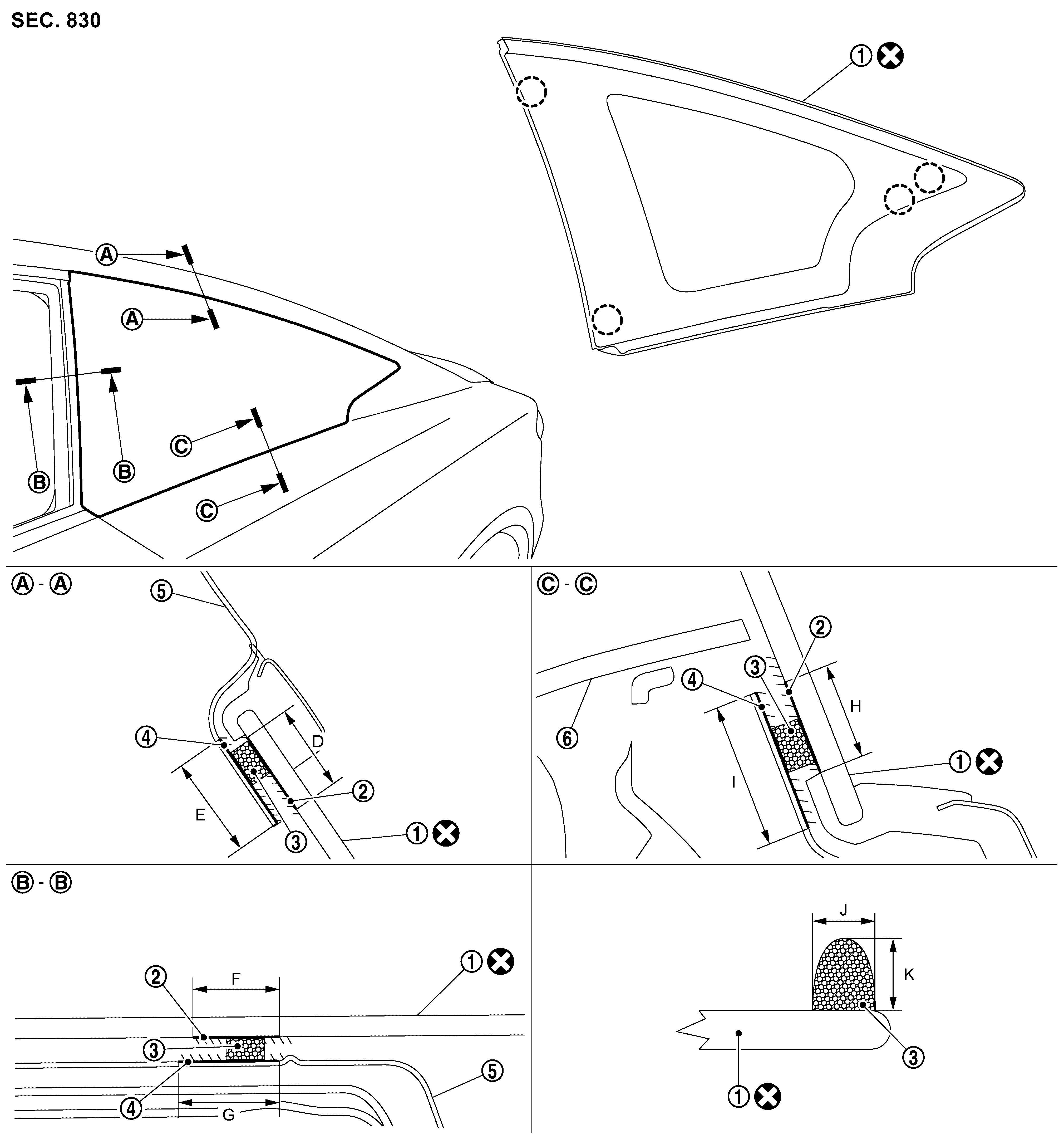

GNSJMKIB6887Z-887Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Side window glass

SYMBOL

Glass primer

SYMBOL

Adhesive

SYMBOL

Painted surface primer

SYMBOL

Body side outer panel

SYMBOL

Rear pillar finisher

SYMBOL

: Clip

SYMBOL

: Always replace after every disassembly.

Unit: mm (in)

Portion

Primer range

Adhesive range

J

K

Side window glass - Body side outer panel

SYMBOL - SYMBOL

D

15.0

(0.590)

6.0

(0.236)

10.0

(0.393)

E

17.0

(0.669)

--

--

SYMBOL - SYMBOL

F

15.0

(0.590)

6.0

(0.236)

10.0

(0.393)

G

17.0

(0.669)

--

--

SYMBOL - SYMBOL

H

15.0

(0.590)

6.0

(0.236)

10.0

(0.393)

I

17.0

(0.669)

--

--
