Models With Distance Control Assist System

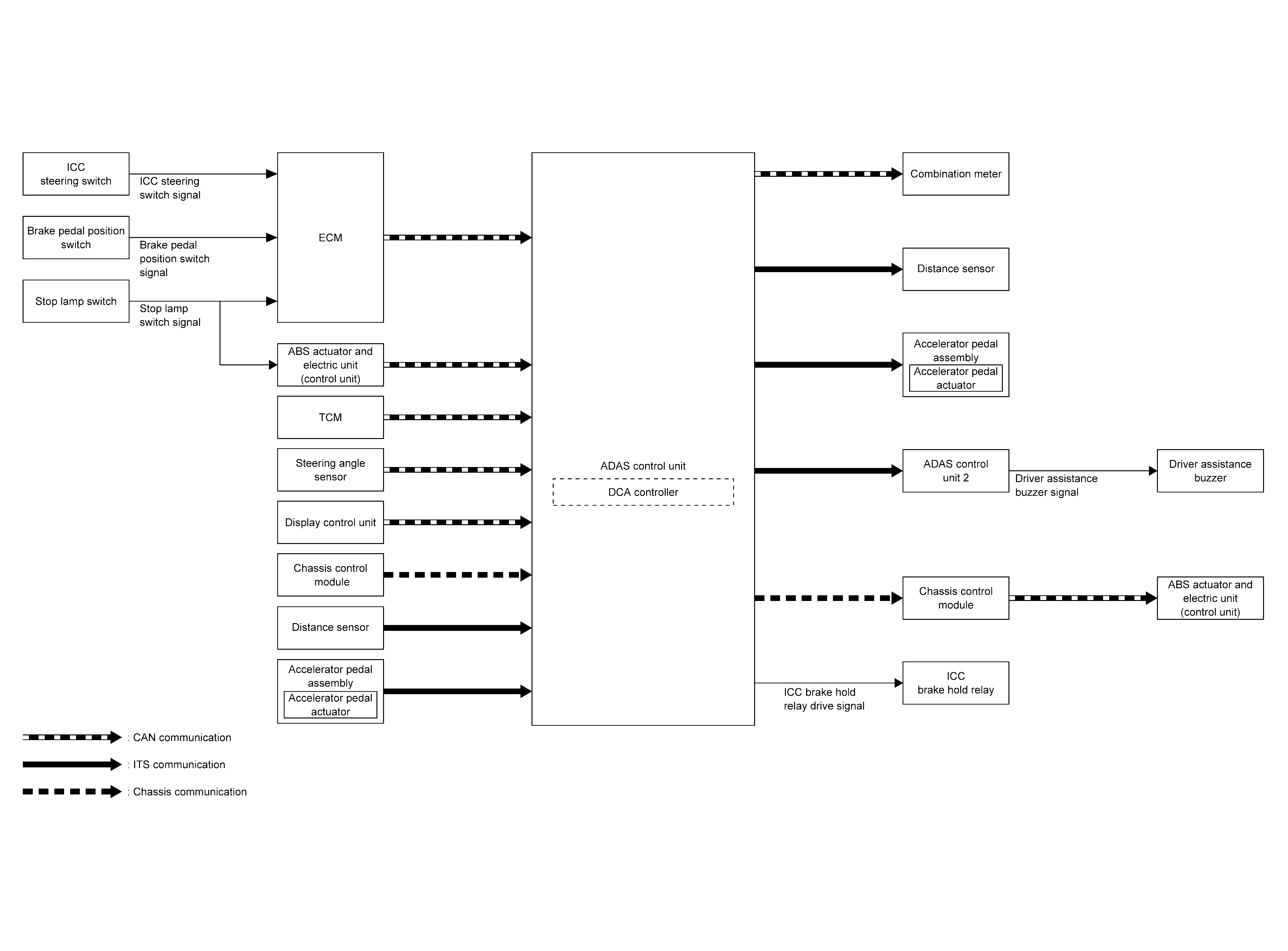

SYSTEM DIAGRAM

GNSILL0279203Courtesy of NISSAN NORTH AMERICA, INC.
NOTE: TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.

ADAS CONTROL UNIT INPUT/OUTPUT SIGNAL ITEM

Input Signal Item

Reception unit

Transmit unit

Signal name

Description

ADAS control unit

ECM

CAN communication

Idle switch signal

Receives idle position state (ON/OFF)

Closed throttle position signal

Receives idle position state (ON/OFF)

Accelerator pedal position signal

Receives accelerator pedal position (angle)

Engine speed signal

Receives engine speed

ICC steering switch signal

Dynamic driver assistance switch signal

Receives the operational state of the dynamic driver assistance switch

Stop lamp switch signal

Receives an operational state of the brake pedal

Brake pedal position switch signal

Receives an operational state of the brake pedal

ADAS control unit

TCM

(via ECM)

CAN communication

Input speed signal

Receives the number of revolutions of input shaft

Current gear position signal

Receives a current gear position

Shift position signal

Receives a select lever position

Output shaft revolution signal

Receives the number of revolutions of output shaft

ADAS control unit

ABS actuator and electric unit (control unit)

CAN communication

ABS malfunction signal

Receives a malfunction state of ABS

ABS operation signal

Receives an operational state of ABS

ABS warning lamp signal

Receives an ON/OFF state of ABS warning lamp

TCS malfunction signal

Receives a malfunction state of TCS

TCS operation signal

Receives an operational state of TCS

VDC OFF switch signal

Receives an ON/OFF state of VDC

VDC malfunction signal

Receives a malfunction state of VDC

VDC operation signal

Receives an operational state of VDC

Vehicle speed signal (ABS)

Receives wheel speeds of four wheels

Yaw rate signal

Receives yaw rate acting on the vehicle

Stop lamp switch signal

Receives an operational state of the brake pedal

ADAS control unit

BCM

CAN communication

Stop lamp switch signal

Receives an operational state of the brake pedal

ADAS control unit

Steering angle sensor

CAN communication

Steering angle sensor malfunction signal

Receives a malfunction state of steering angle sensor

Steering angle sensor signal

Receives the number of revolutions, turning direction of the steering wheel

Steering angle speed signal

Receives the turning angle speed of the steering wheel

ADAS control unit

Display control unit

CAN communication

System selection signal

Receives a selection state of each item in "Driving Aids" selected with the integral switch

ADAS control unit

distance sensor

ITS communication

distance sensor signal

Receives detection results, such as the presence or absence of a leading vehicle and distance from the vehicle

ADAS control unit

Accelerator pedal actuator

ITS communication

Accelerator pedal actuator operation status signal

Receives an operational state of accelerator pedal actuator

Output Signal Item

Reception unit

Transmit unit

Signal name

Description

ABS actuator and electric unit (via chassis control module)

ADAS control unit

CAN communication

Brake fluid pressure control signal

Transmits a brake fluid pressure control signal to activates the brake

Combination meter

ADAS control unit

CAN communication

Meter display signal

Vehicle ahead detection indicator signal

Transmits a signal to display a state of the system on the information display

DCA system display signal

distance sensor

ADAS control unit

ITS communication

Vehicle speed signal

Transmits a vehicle speed calculated by the ADAS control unit

Steering angle sensor signal

Transmits a steering angle sensor signal received from the steering angle sensor

Accelerator pedal actuator

ADAS control unit

ITS communication

Accelerator pedal position signal

Transmits an accelerator pedal angle calculated by the ADAS control unit

Accelerator pedal feedback force control signal

Transmits a target actuation force value calculated by the ADAS control unit

ADAS control unit 2

ADAS control unit

ITS communication

Driver assistance buzzer signal

Transmits a driver assistance buzzer signal to activates the buzzer

ICC brake hold relay

ICC brake hold relay

ICC brake hold relay drive signal

Activates the brake hold relay and turns ON the stop lamp

FUNCTION DESCRIPTION

When a vehicle is detected ahead

When vehicle approaches a vehicle ahead

When brake operation by driver is required

CAUTION: If the vehicle ahead comes to a standstill, the vehicle decelerates to a standstill within the limitations of the system. The system will release brake control with a warning chime once it judges the vehicle is at a standstill. To prevent the vehicle from moving, the driver must depress the brake pedal. [The system will resume control automatically once the system reaches 5 km/h (3 MPH)].
NOTE:
  • Depending on the position of the accelerator pedal, the system may not be able to assist the driver to release the accelerator pedal appropriately.
  • When the driver depresses the accelerator pedal even further while the system is moving the accelerator pedal upward, the accelerator pedal control will be canceled.
  • When the driver is depressing the accelerator pedal, the brake control by the system is not operated.
  • When the driver is depressing the brake pedal, neither the brake control nor the alert by the system operates.
  • When the ICC system is set, the DCA system will be canceled.
  • Setting of DCA is performed in synchronization with the log-in function of on-board personal assistant. For details of the log-in function, Refer to System Description .

OPERATION DESCRIPTION

Distance sensor calculates a distance from a vehicle ahead and a relative speed to transmit the distance sensor signal to the ADAS control unit via ITS communication. Based on the received signal, the ADAS control unit transmits a control signal to the accelerator pedal actuator via ITS communication and to the ABS actuator control unit (control unit) via CAN communication.

When vehicle approaches a vehicle ahead

If the driver is not depressing the accelerator pedal, the system activates the brakes to decelerate smoothly as necessary

GNSJSOIA0222Z-222Courtesy of NISSAN NORTH AMERICA, INC.

If the driver is depressing the accelerator pedal, the system moves the accelerator pedal upward to assist the driver to release the accelerator pedal

GNSJSOIA0094Z-094Courtesy of NISSAN NORTH AMERICA, INC.

When brake operation by driver is required

The system alerts the driver by a warning chime and blinking the vehicle ahead detection indicator. If the driver is depressing the accelerator pedal after the warning, the system moves the accelerator pedal upward to assist the driver to switch to the brake pedal

GNSJPOIA0170GB-170Courtesy of NISSAN NORTH AMERICA, INC.

Deceleration control

It transmits the brake fluid pressure control signal to the ABS actuator and electric unit (control unit) via chassis control module and performs the brake control

Accelerator pedal actuation control

It transmits the accelerator pedal feedback force control signal to the accelerator pedal actuator via ITS communication and controls the accelerator pedal in the upward direction

Operation Condition

ADAS control unit performs the control when the following conditions are satisfied.

No Operation Condition

The ADAS control unit is not operate when the system is under any conditions of the no operation condition.

Operation Cancellation Condition

The ADAS control unit cancels the operation when the system is under any conditions of the operation cancellation condition.

Operation At The Driver Operation

Give priority to the driver operation in the following situation.
