Removal and Installation: Removal

WARNING: This page is about a different car, the 2019 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the storage box. Refer to Removal and Installation .

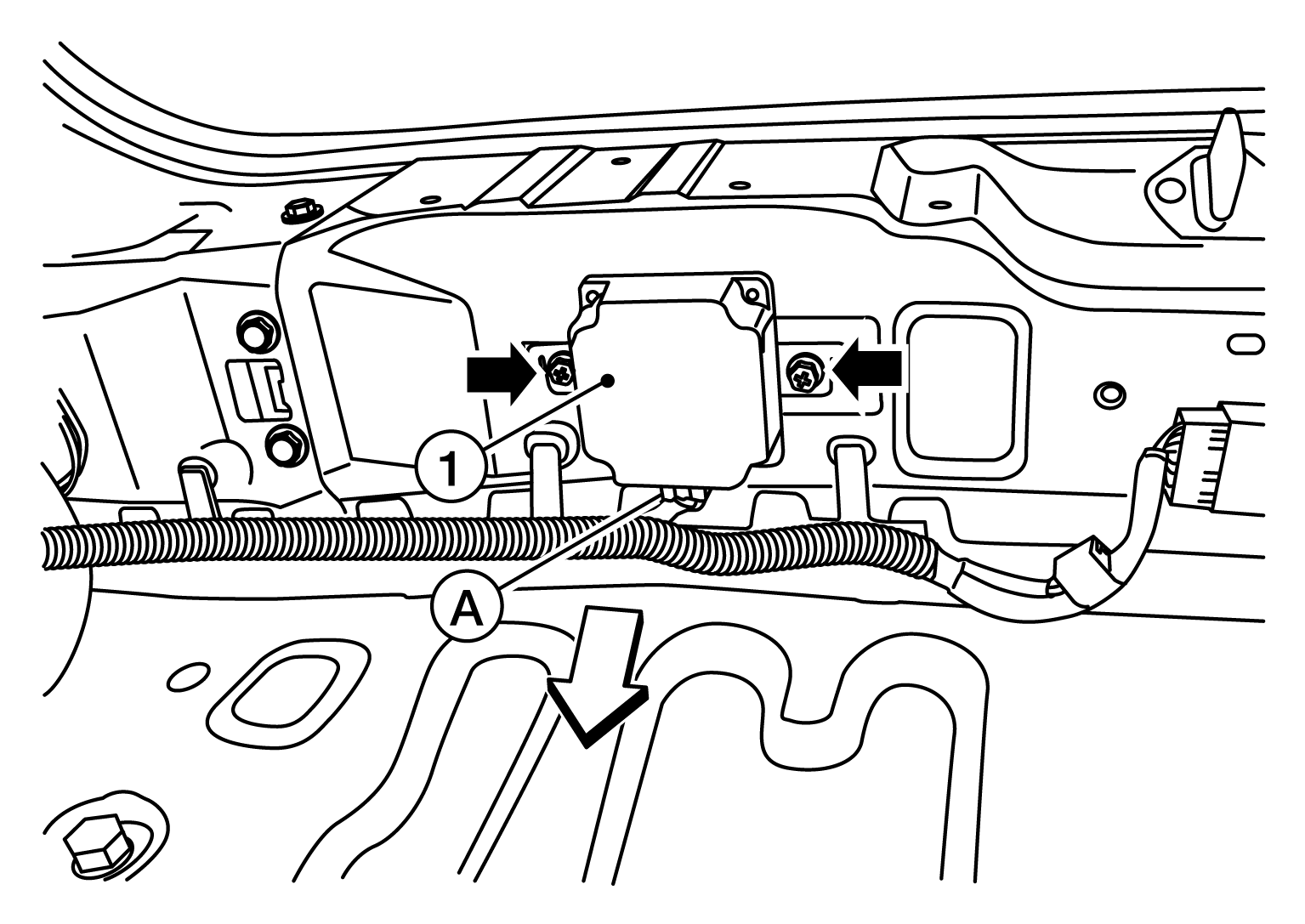

  2. Disconnect the harness connector (A) from the ADAS control unit (1).
    GNSAWOIA0010GB-010Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove the bolts (SYMBOL ).
  4. Lift upward to remove ADAS control unit (1).
