Switch Name and Function

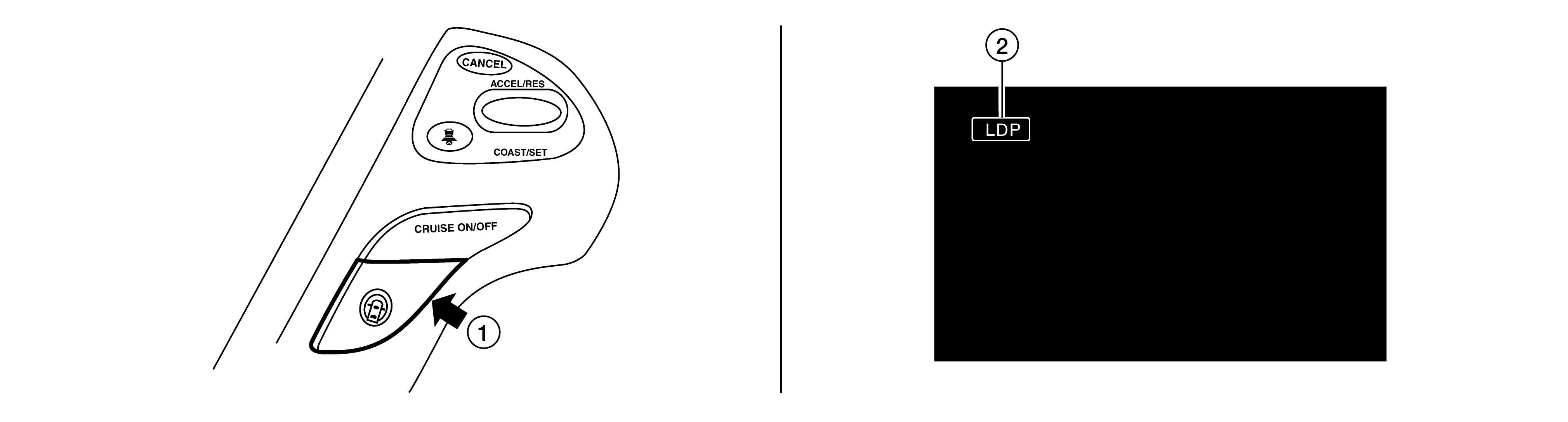

G08857488Courtesy of NISSAN NORTH AMERICA, INC.

No.

Switch name

Description

1

Dynamic driver assistance switch

Turns LDP system ON/OFF

(When the setting of LDP system in the vehicle information display)

2

LDP system settings screen

(the vehicle information display)

The setting of LDP system can be switched between ON and OFF
