Lane Camera Unit

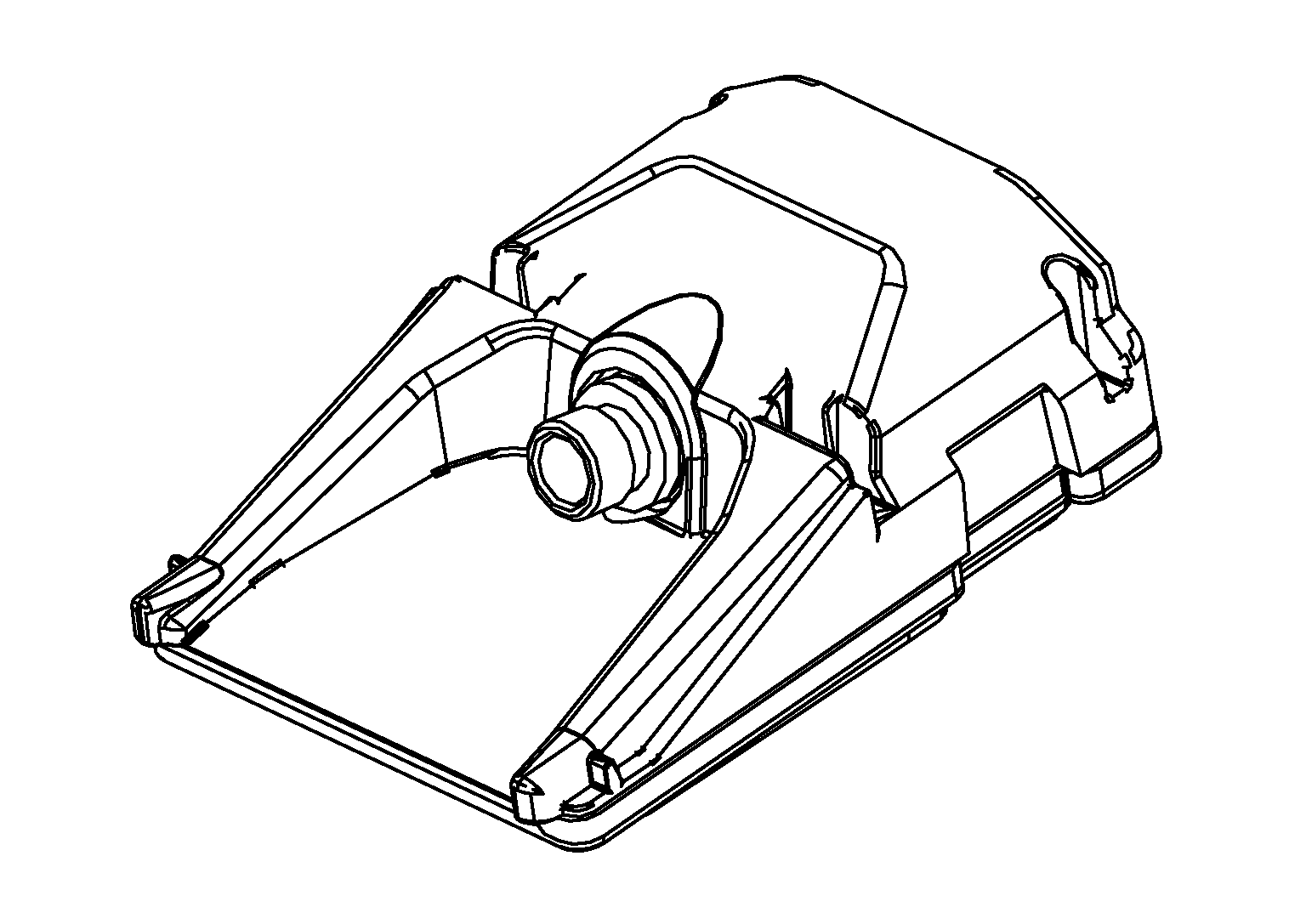

Lane Camera Unit
Lane camera unit is installed to the windshield and detects the lane marker in travel lane.
Courtesy of NISSAN NORTH AMERICA, INC.
Transmits lane marker signal to ADAS control unit via chassis communication.
Courtesy of NISSAN NORTH AMERICA, INC.
