Exploded View

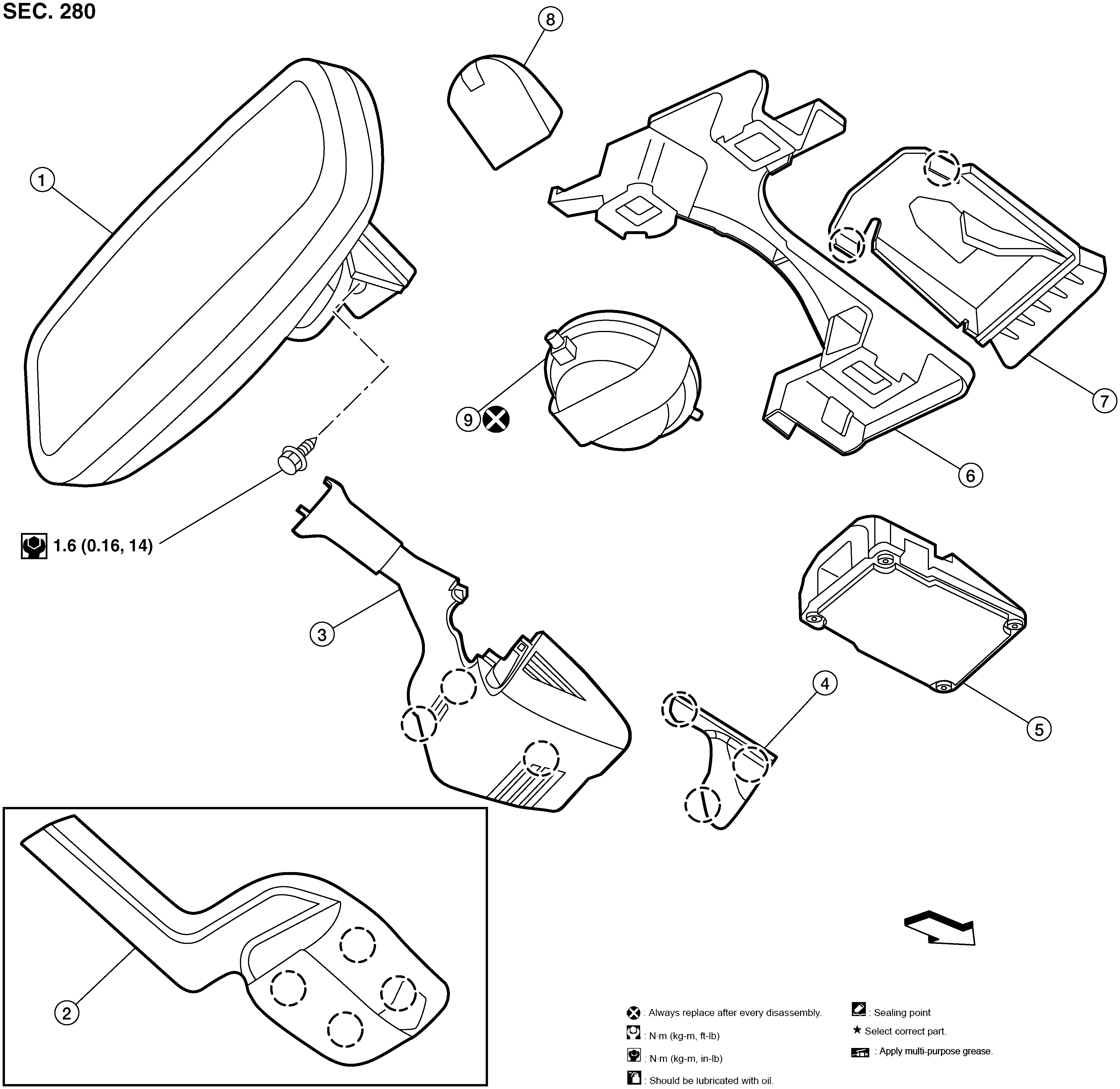

Fig 1: Lane Camera Unit Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Inside mirror	2.	Rain sensor cover (without lane departure warning)	3.	Lane camera cover [RH (with lane departure warning)]
4.	Lane camera cover [LH (with lane departure warning)]	5.	Lane camera (if equipped)	6.	Lane camera cover bracket (if equipped)
7.	Lane camera bracket (if equipped)	8.	Mirror base	9.	Rain sensor
	Pawl		Front
