QX50 Essential, FWD
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Driver Assistance System
>>
System Description
>>
System
>>
LDP
>>
System Description
>>

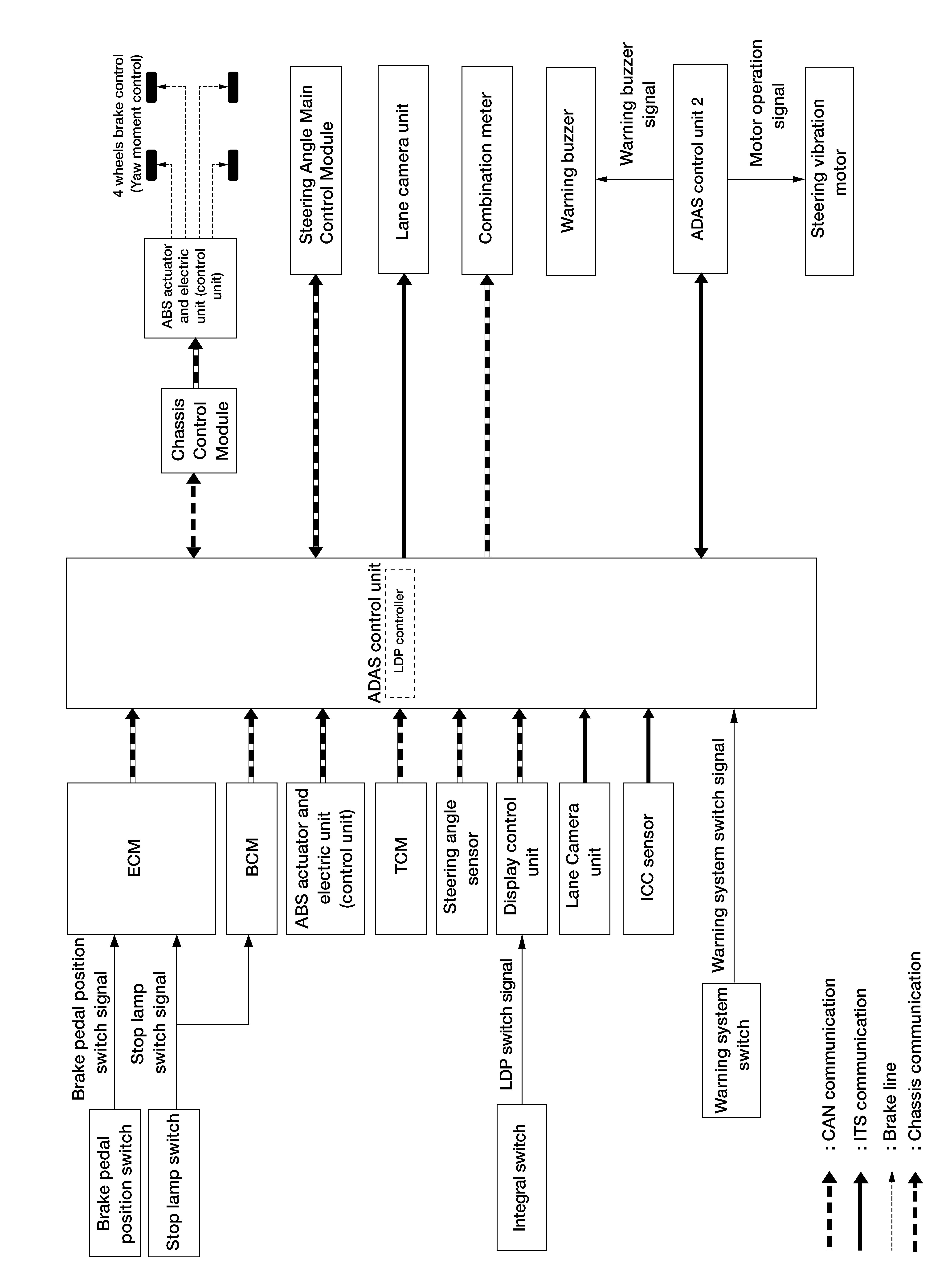

System Diagram
System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
TCM is connected to drivetrain CAN communication and transmits a CAN communication signal to ADAS control unit via ECM.
